49
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
KDL-46W4100/46W4150 ONLY

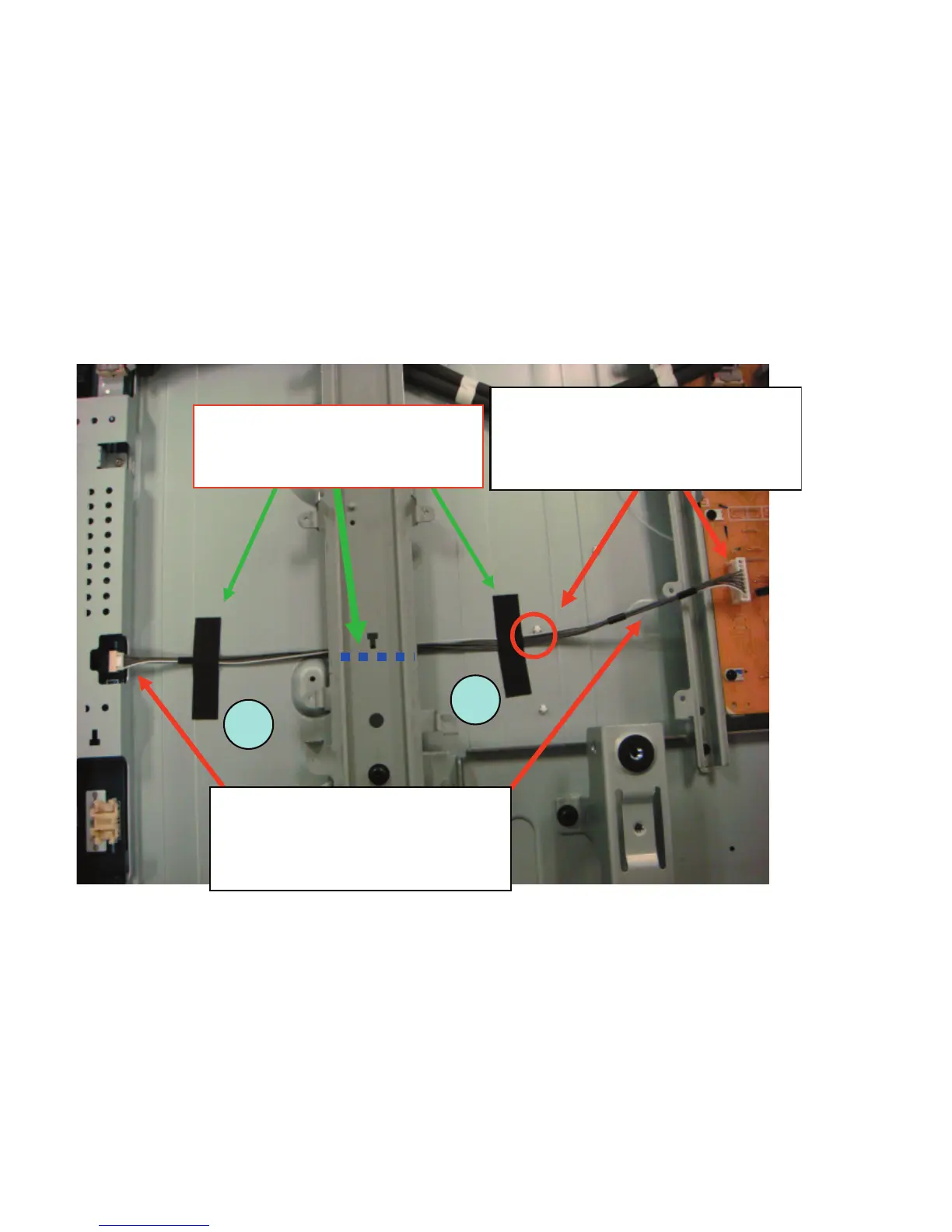

Balancer Board Cable Routing
Fix 9P harness with Sheet Core C.
NOTE:
Wires are routed UNDER Spine Frame
to avoid sharp metal edge.
6
7
CAUTION:
Make sure there is sufficient
Slack on wire so there is minimal
Stress on connector!
Route wires just under Plastic peg
on panel as shown.
Make sure wires are not pulling or
Causing stress on connector.
To Next Page
