KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
KDL-46W4100/46W4150 ONLY

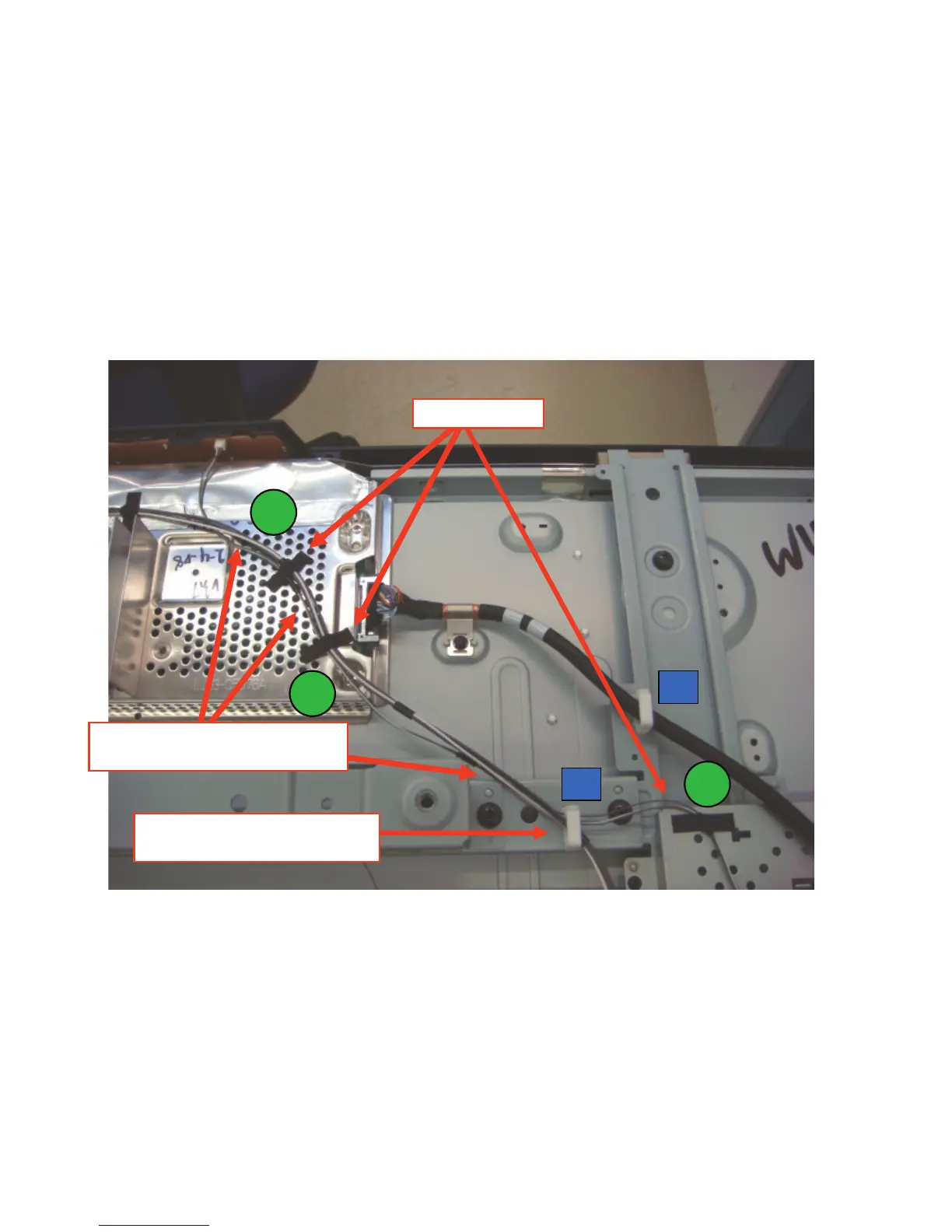

Switch Unit Routing/Dressing
Use Tape, LCD
Dress Switch Unit wire inside
Slide Clamp
7
8
9
Dress Switch Unit wire together
With 4P TCON Power Harness.
6
5
