61
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
KDL-46W4100/46W4150 ONLY

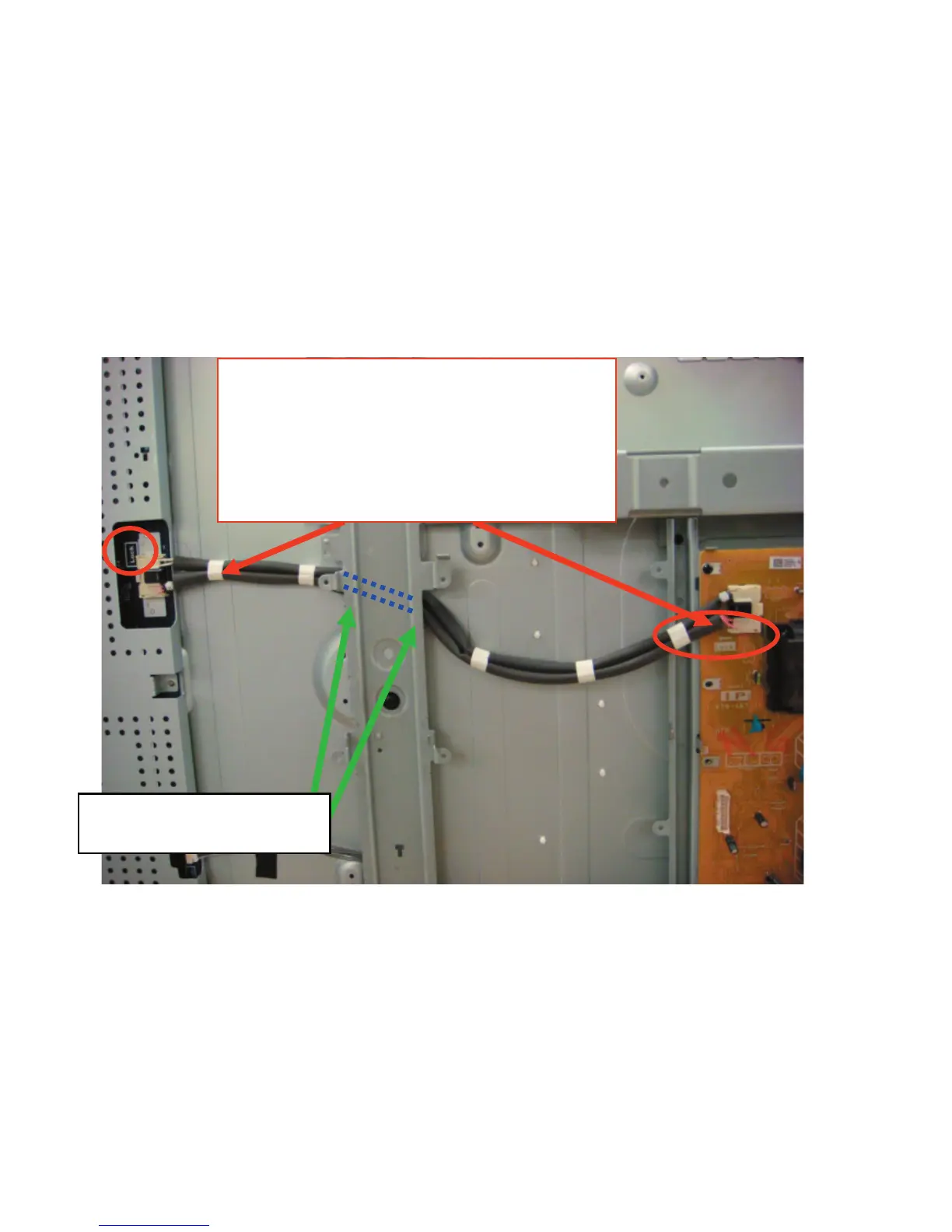

Balancer Board HIGH VOLTAGE Wire Dressing
MDF- 61 (NEW) CONNECTOR
1-835-148-11; 395mm Length
Installation:
1. Align connector in header
2. Push Black Button on top of Conn.
3. Confirm Conn. “snaps” in firmly.
4. Slide BLACK locking latch in direction printed
on the PWB silk (circled RED in photo)
Dress H.V. cable UNDER
the Spine Frame
To Next Page
