Sony RMT-D142P - Audio Out, Video out

DVP-NS305/NS310/NS315/NS405/NS410/NS415
4-29 4-30
AUDIO OUT, VIDEO OUT
AV-61

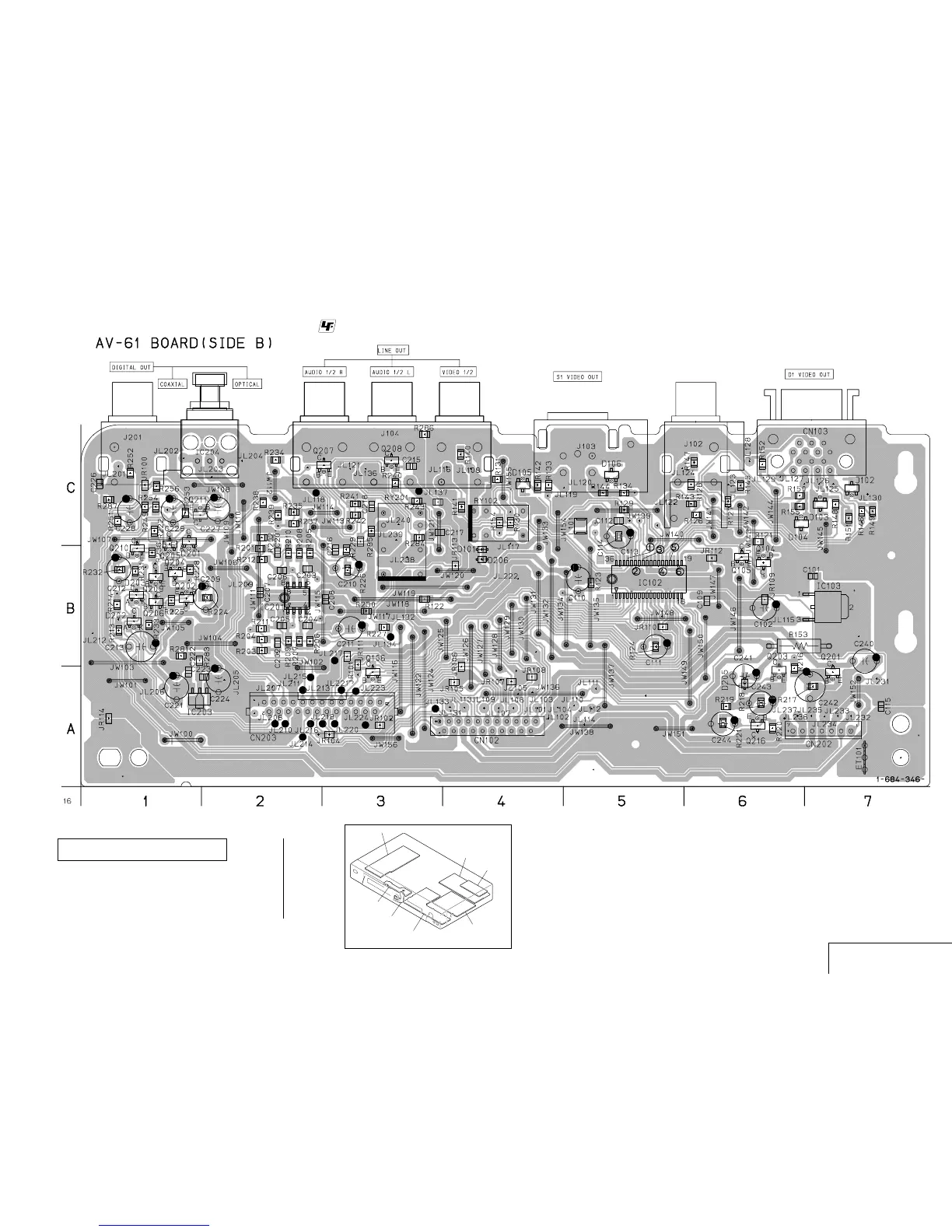

AV-61 (AUDIO OUT, VIDEO OUT) PRINTED WIRING BOARD
AV-61 BOARD
CN401 D-8
CN402 E-7
CN403 D-6
CN404 B-3
CN405 B-3
CN406 D-7
IC403 D-6
IC404 B-7
IC405 C-8
IC406 A-4
IC407 B-6
Q404 D-7
Q405 D-8
S401 A-1
S402 A-2
S403 A-2
S404 A-4
S405 A-2
S406 A-4
S407 A-2
S408 A-8
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
• : Uses unleaded solder.
MB-103 board
(DVD/CD RF AMP, SERVO,
MOTOR DRIVE, AD DECODER,
SYSTEM CONTROL,
AUDIO ADC, PLL)
AV-61 board
(AUDIO/VIDEO OUT)
IF-89 board
(IF COM)
FL-126 board
(LED)
MS-81 board
(LOADING MOTOR)
ER-14 board
(AV AMP)
Power block
