DVP-NS325/NS330/NS333/NS430/NS433/NS530/NS725P/NS730P
1
A
B
C
D
E
F
G
H
I
J
2
12
13
11
10
98765
43
14
15
4-41 4-42

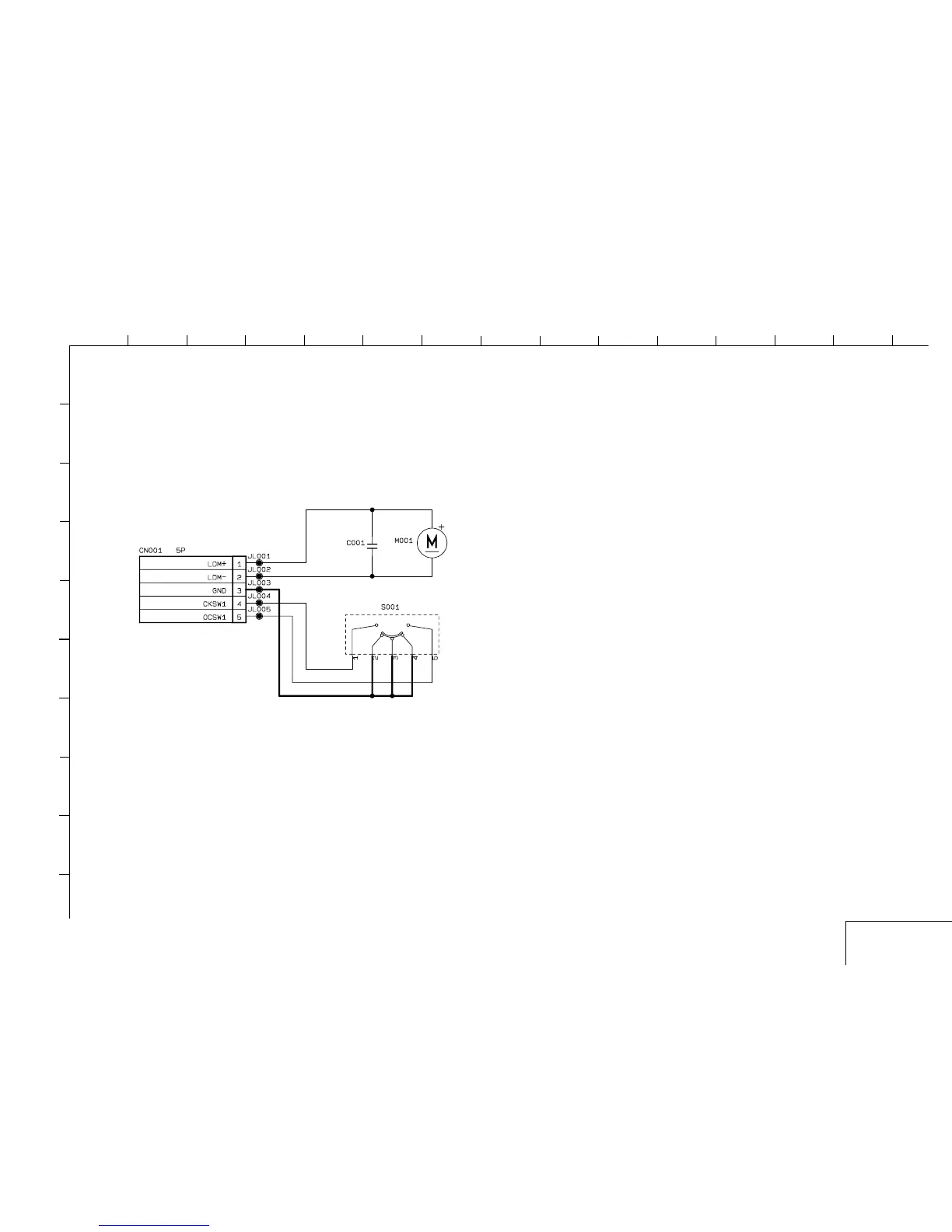

For Schematic Diagram
• Refer to page 4-41 for printed wiring board of MS-128 board.
MS-128 BOARD
MECHA DECK
-REF.NO.:6000 SERIES-
XX MARK:NO MOUNT
NO MARK:PB MODE
MECHA DECK
MS-128
