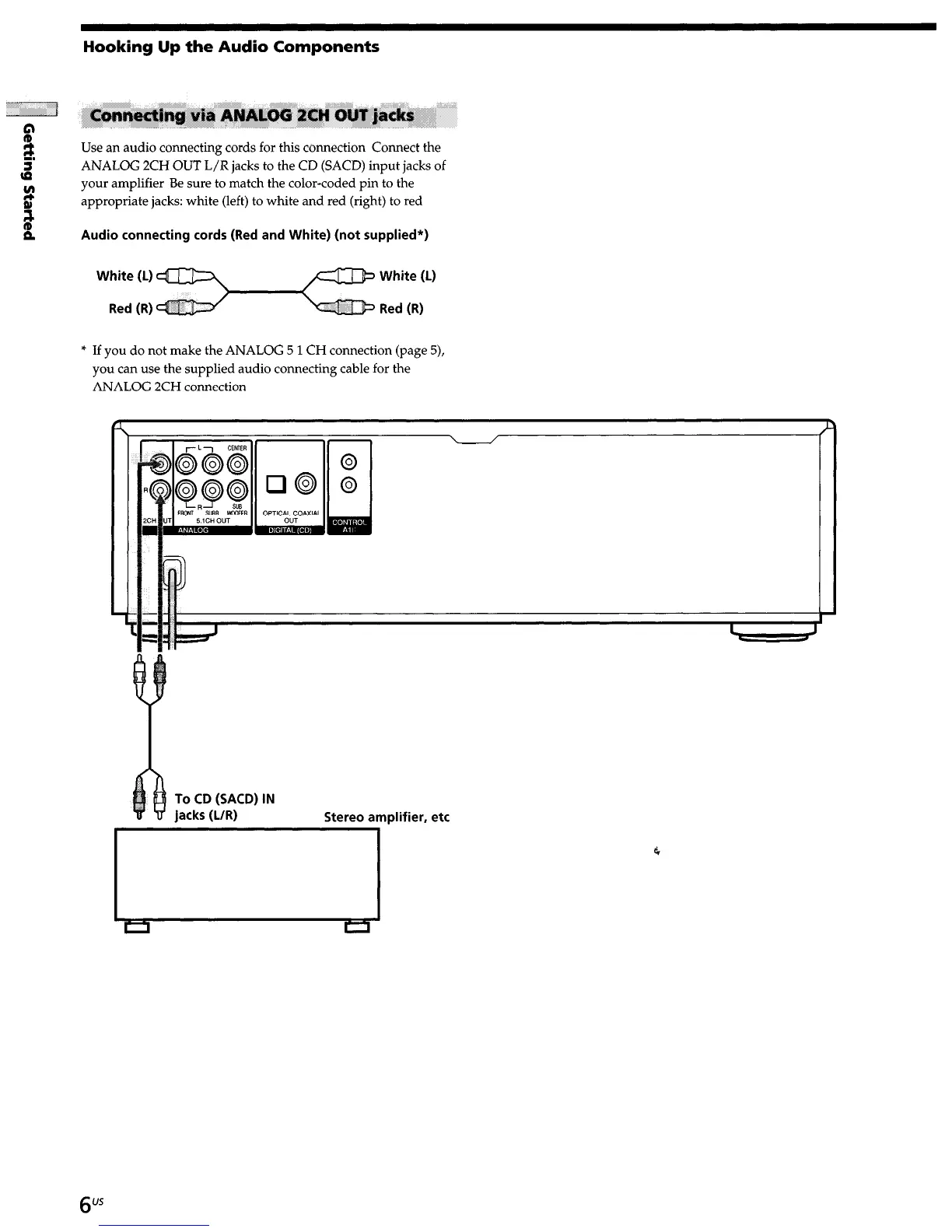

Hooking Up the Audio Components
Use an audio connecting cords for this connection Connect the
ANALOG 2CH OUT L/R jacks to the CD (SACD) input jacks of
your amplifier Be sure to match the color-coded pin to the
appropriate jacks: white (left) to white and red (right) to red
Audio connecting cords (Red and White) (not supplied*)
White (L)
Red (R)
White (L)
Red (R)
* If you do not make the ANALOG 5 1 CH connection (page 5),
you can use the supplied audio connecting cable for the
ANALOG 2CH connection
To CD (SACD) IN
Stereo amplifier, etc
-
6
us
