S-Video/Component Video hookup
B Use this hookup if your TV has component video input jacks

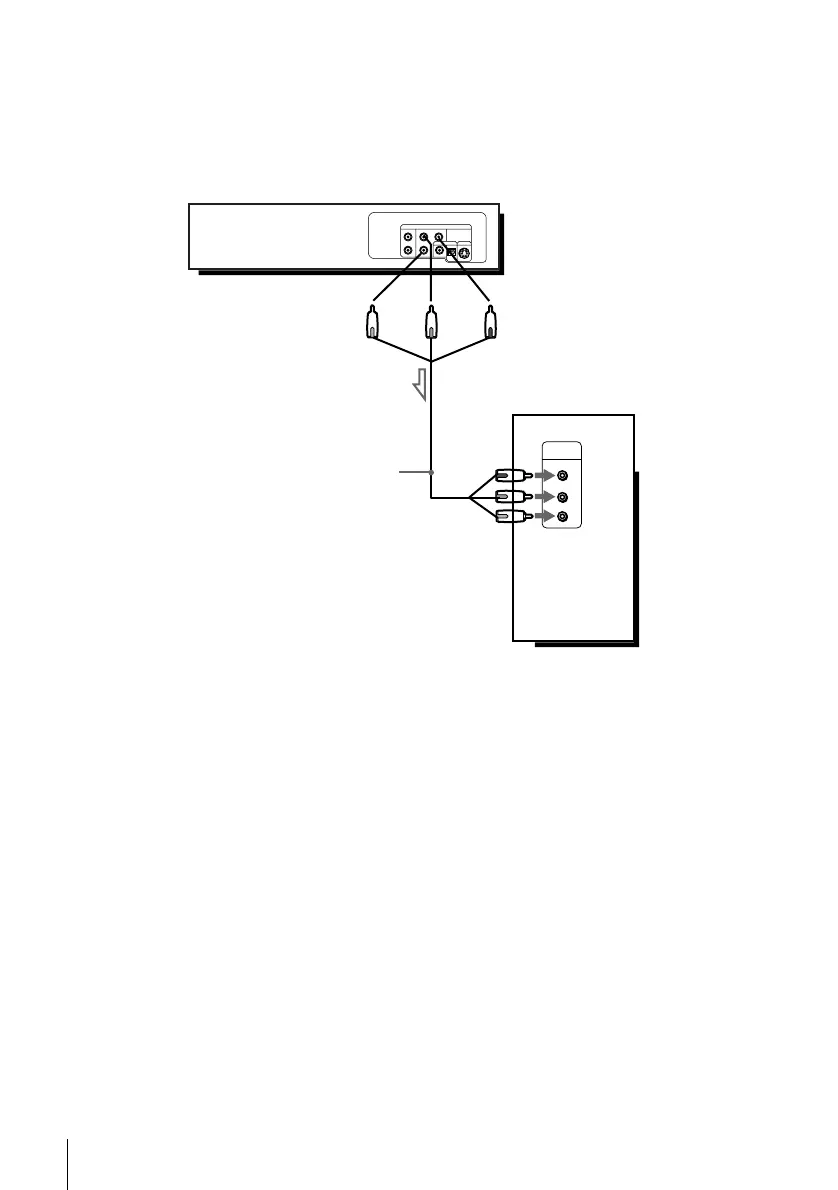

• Connect your TV via the COMPONENT VIDEO OUT jacks using a component
video cord (not supplied) or three video cords (not supplied) of the same kind and
length. You will enjoy accurate color reproduction and high quality images.
See page 47 for audio connections.
Notes
• Set “Video Out” to “Component” in the “SCREEN SETUP” menu (page 52) to view pictures
from the component video jacks.
• The connection using COMPONENT VIDEO OUT jack is only for the DVD player.
PR
PB
Y
COMPONENT
VIDEO IN
l : Signal flow
(DVD only)
Component video cord
(not supplied)
TV
(green)
(red)
(green)
(blue) (red)
DVD-VCR
(blue)
