5-2
PRESS

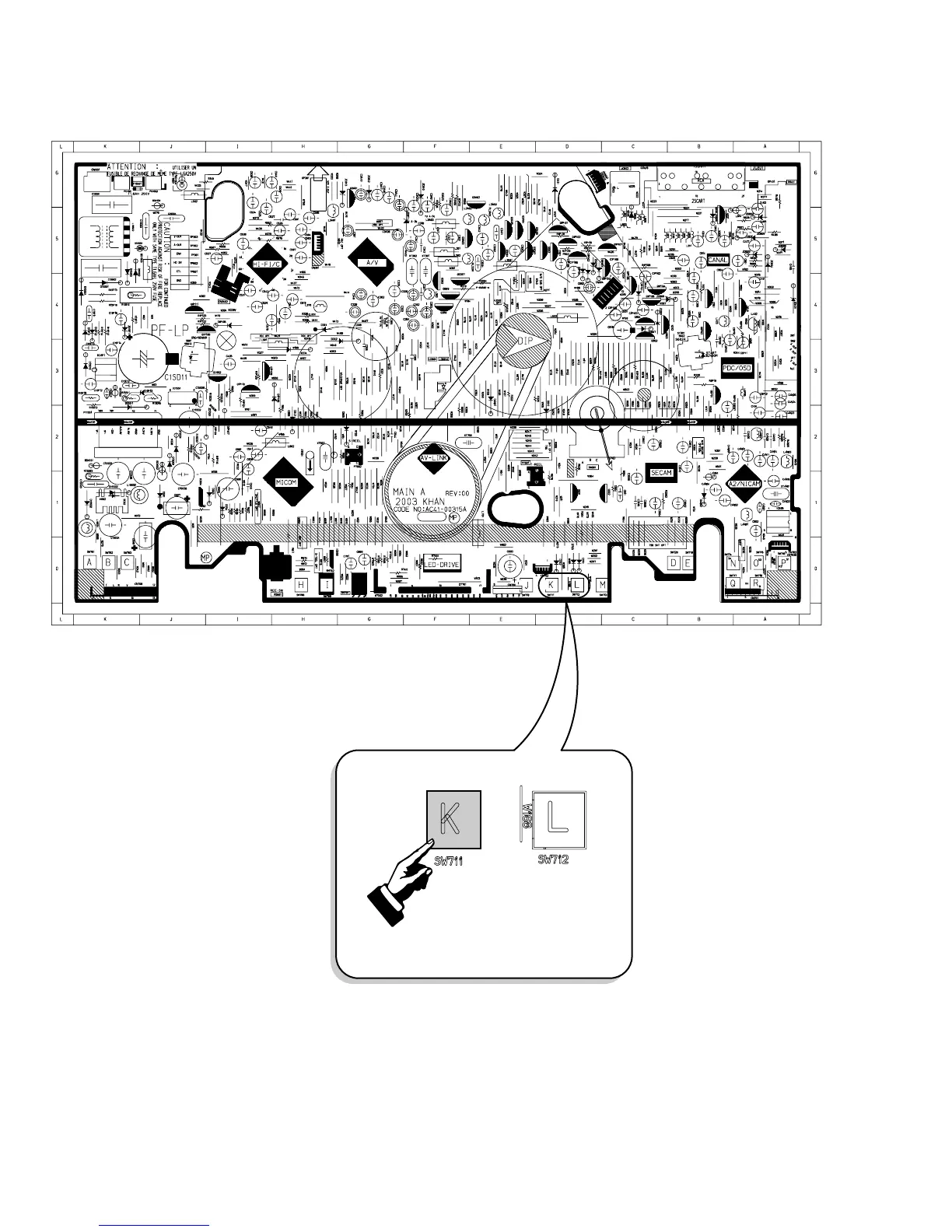

Fig. 5-2 Main PCB (Top View)
5-1-2 Test point location for adjustment mode setting (Mono model)
• Hi-Fi model: SE630/SE730/SE737/SE830/SX730/SX737
Mono model: SE230/SE430
