6-5

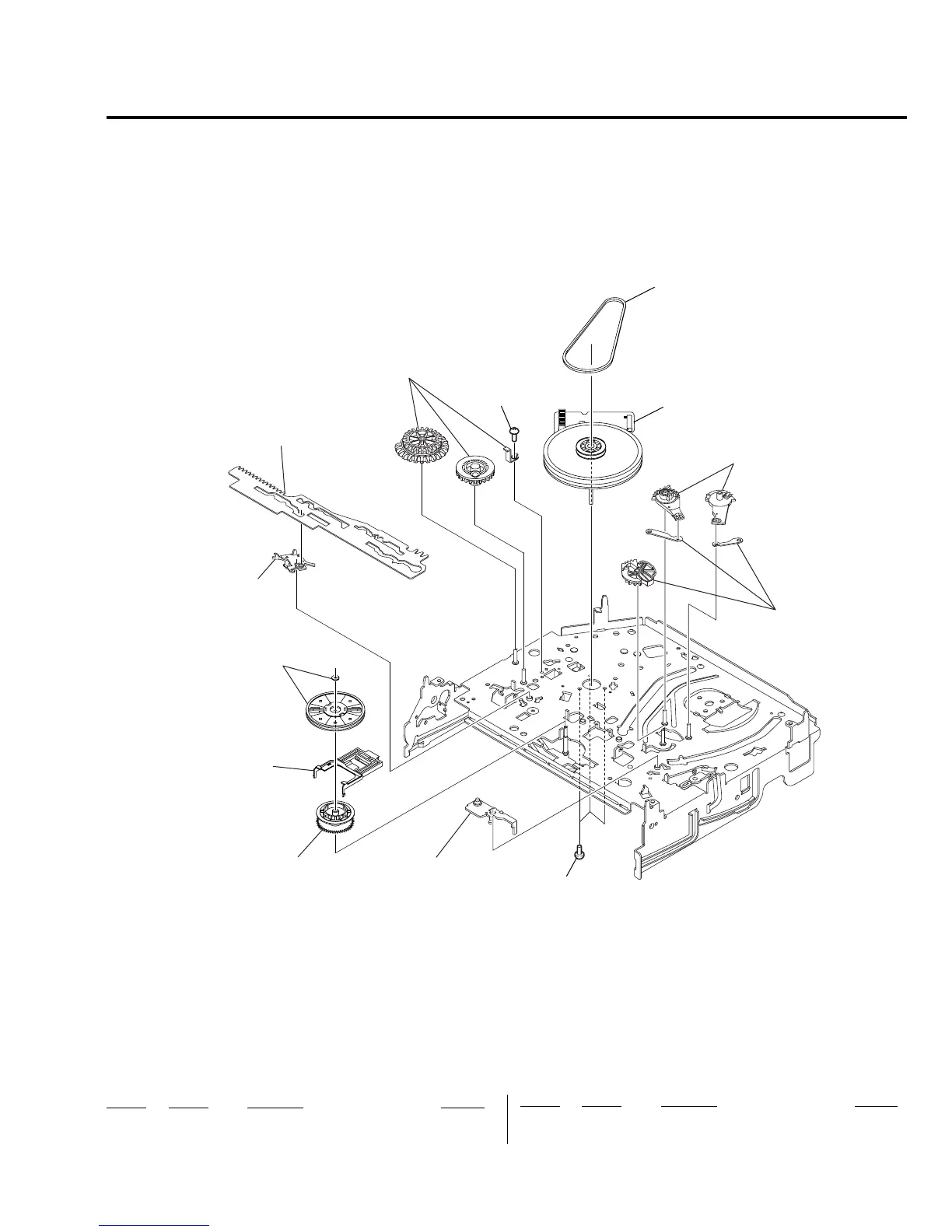

6-1-4 Mechanical Parts (Bottom Side)
not supplied
not supplied
not supplied
not
supplied
not supplied
not supplied
not
supplie
d
not
supplied
not supplied
151
152
154
153
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
151
3-067-790-01
BEL
T
-PULLEY
152
1-796-432-11
MOTOR CAPST
AN
153
3-075-259-01
SCREW CAP 2.6X6
154
3-075-260-01
SCREW MAC 3X3
64
66
