Sony SLV-SE730 - Mechanical Parts (Top Side)

6-4

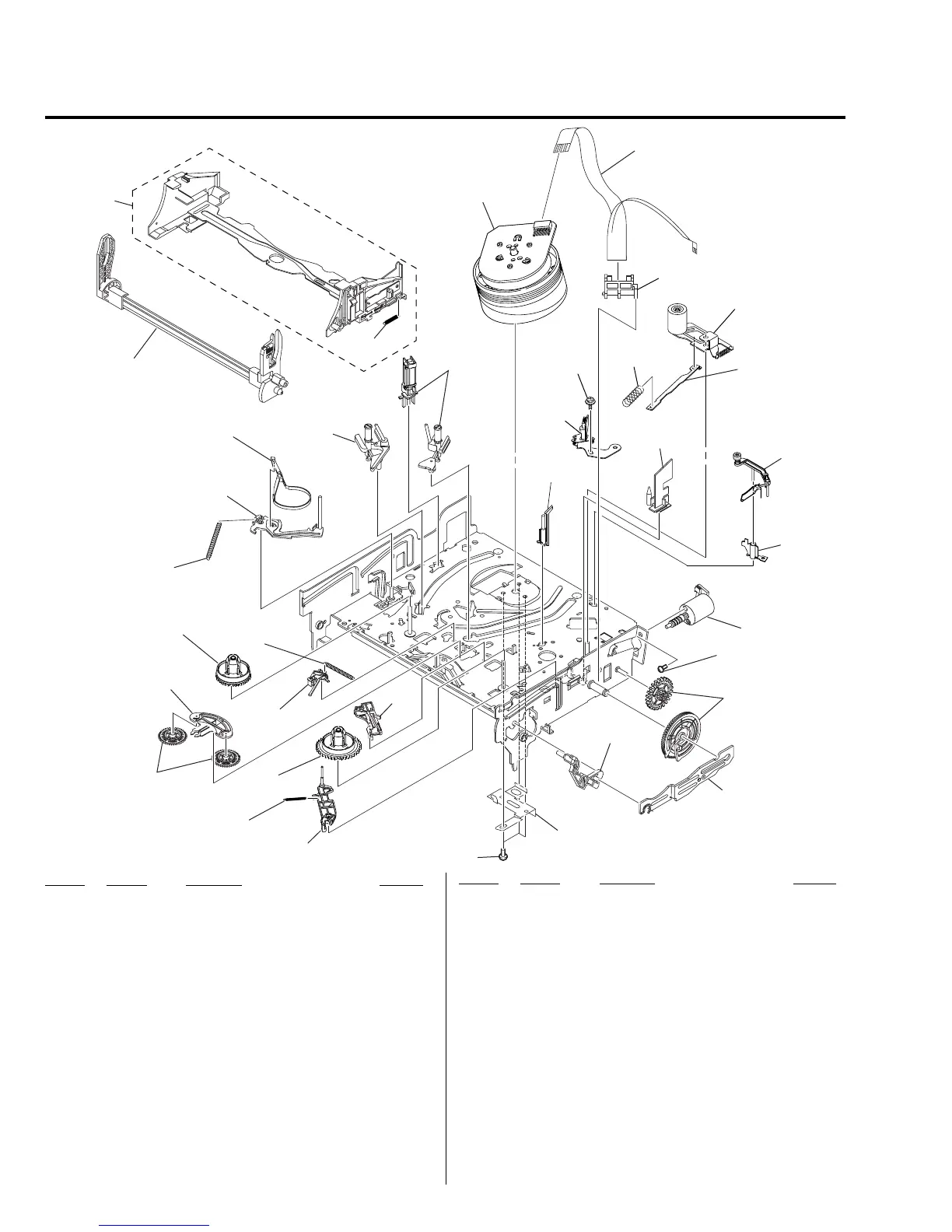

6-1-3 Mechanical Parts (Top Side)
109
111
112
114
115
118
113
110
120
101
102
124
106
105
104
123
103
121
107
108
126
127
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
101 3-067-779-01 LEVER-#9 GUIDE
102 3-067-780-01 SPRING-#9 GUIDE
103 3-067-785-01 LEVER-T. BRAKE
104 3-067-786-01 SPRING-BRAKE
105 3-067-782-01 SPRING-TENSION LEVER
106 3-067-781-01 LEVER-TENSION
107 3-067-783-01 BAND-BREAK
108 3-067-788-01 HOLDER-FL CASS.
109 1-796-704-11 ASSY CLYNDER 6HD (SECAM)
(SE630: B/SE730: B/SE830: B)
109 1-796-705-11 ASSY CLYNDER 6HD
(SE630: D, E, N/SE730: D, E, G, I, N/SE737/
SE830: D, E, G, N/SX730/SX737)
109 1-796-706-11 ASSY CLYNDER 2HD (SE230: B, D)
109 1-796-707-11 ASSY CLYNDER 2HD (LP) (SE230: G, I)
109 1-796-708-11 ASSY CLYNDER 4HD (SE430)
110 3-075-253-01 SCREW ASSY MAC 2.6X5
111 3-075-254-01 SCREW ASSY MAC 3X6
112 3-067-784-01 LEVER-UNIT PINCH
113 3-075-257-01 SCREW TAP 2.6X5
114 3-709-671-01 ASSY HEAD ACE
115 3-067-789-01 GUIDE-CASS. DOOR
118 1-796-434-11 LOADING ASSY, MOTOR
120 3-067-787-01 LEVER-FL DOOR
(SE630/SE730/SE737/SE830/SX730/SX737)
120 3-075-704-01 LEVER-FL DOOR (SE230/SE430)
121 3-067-796-01 PLATE-GROUND DECK
123 3-075-046-01 DISK T REEL
124 3-075-047-01 DISK S REEL
126 3-075-022-01 AUTO HEAD CLEANER (G681)
(SE630/SE730/SE737/SE830/SX730/SX737)
127 3-075-021-01 AUTO HEAD CLEANER (G680)
(SE630/SE730/SE737/SE830/SX730/SX737)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
