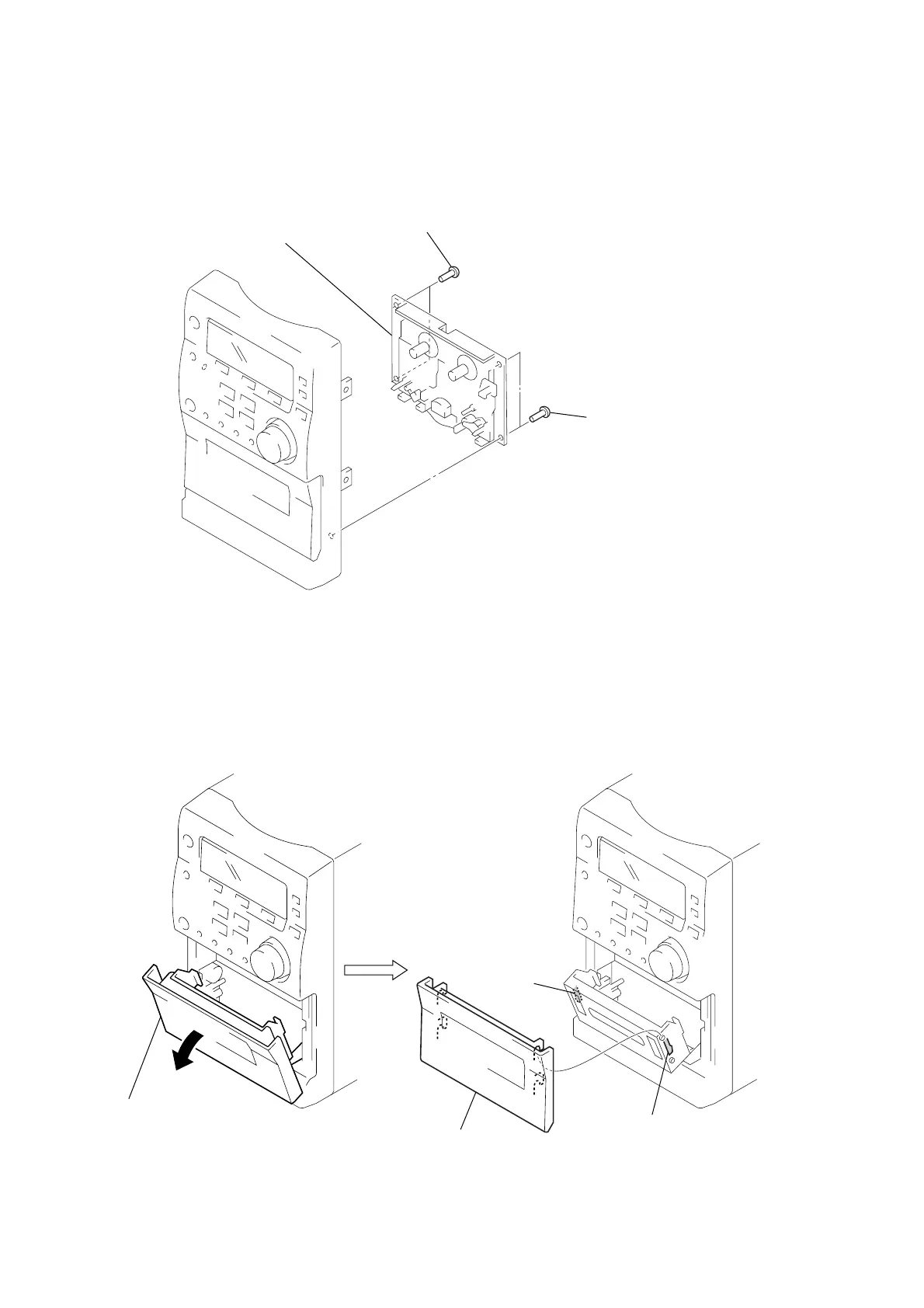

3-6. TAPE MECHANISM DECK (CRL3439)
3-7. CASSETTE LID
1
two screws
(BVTP3
×
10)
1
two screws
(BVTP3
×
10
)
2
tape mechanism deck
(CRL3439)
1
Open the cassette lid.
3
cassette lid
2
claw
2
claw
