Sony SS-CEP50 - Exploded Views; Cabinet Section

33
HCD-EP50

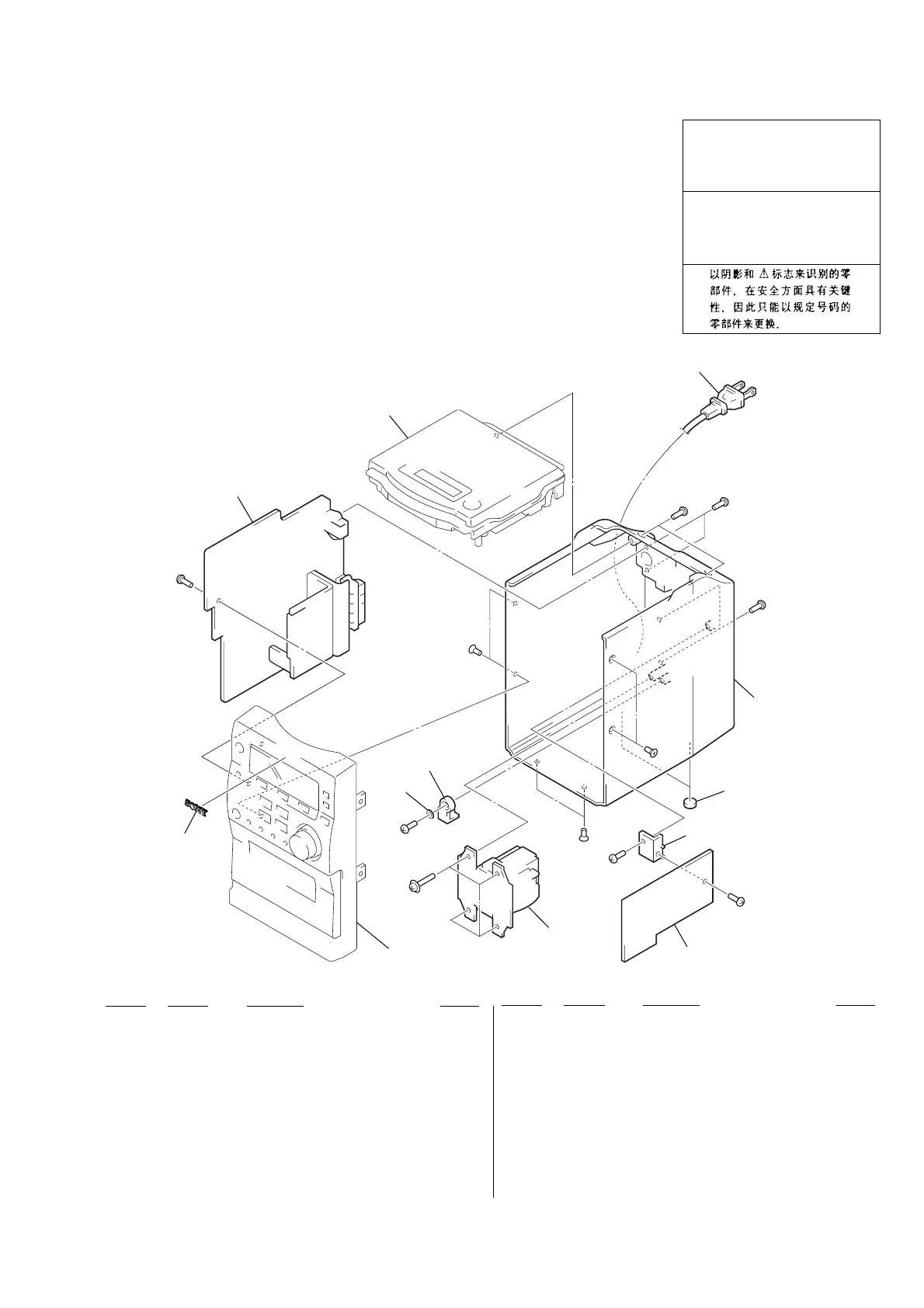

7-1. CABINET SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
• Abbreviation
AR : Argentina model
CH : Chinese model
CND : Canadian model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
HK : Hong Kong model
MX : Mexican model
SP : Singapore model
1 3-451-162-00 WASHER
2 4-235-952-01 AC CORD HOLDER
3 4-236-194-01 EMBLEM BADGE
5 A-4727-039-A MAIN BOARD, COMPLETE (AEP, CH, UK)
5 A-4727-281-A MAIN BOARD, COMPLETE
(AR, CND, HK, MX, SP, US)
06 1-555-750-00 CORD, POWER (AEP, HK, SP, UK)
06 1-782-464-21 CORD, POWER (CH)
06 1-783-525-31 CORD, POWER (TRACKING) (MX)
06 1-783-820-11 CORD, POWER (CND, US)
06 1-783-941-51 CORD, POWER (AR)
9 4-236-914-01 REAR CABINET (AEP, CH, UK)
9 4-237-126-01 REAR CABINET (CND, US)
9 4-237-128-01 REAR CABINET (AR, HK, MX, SP)
10 4-235-995-01 RUBBER FOOT
12 A-4727-041-A POWER BOARD, COMPLETE
(AEP, AR, CH, HK, SP, UK)
12 A-4727-282-A POWER BOARD, COMPLETE (CND, MX, US)
0T601 1-437-513-11 TRANSFORMER, POWER
(AEP, AR, CH, HK, SP, UK)
0T601 1-437-514-11 TRANSFORMER, POWER (CND, MX, US)
12
3
5
1
2
not supplied
10
9
6
#1
#1
#4
#2
#
2
#2
#3
#5
Front panel section
CD cabinet section
#3
#3
#1
T601
Ver 1.1
