55
STR-DB870/DB1070

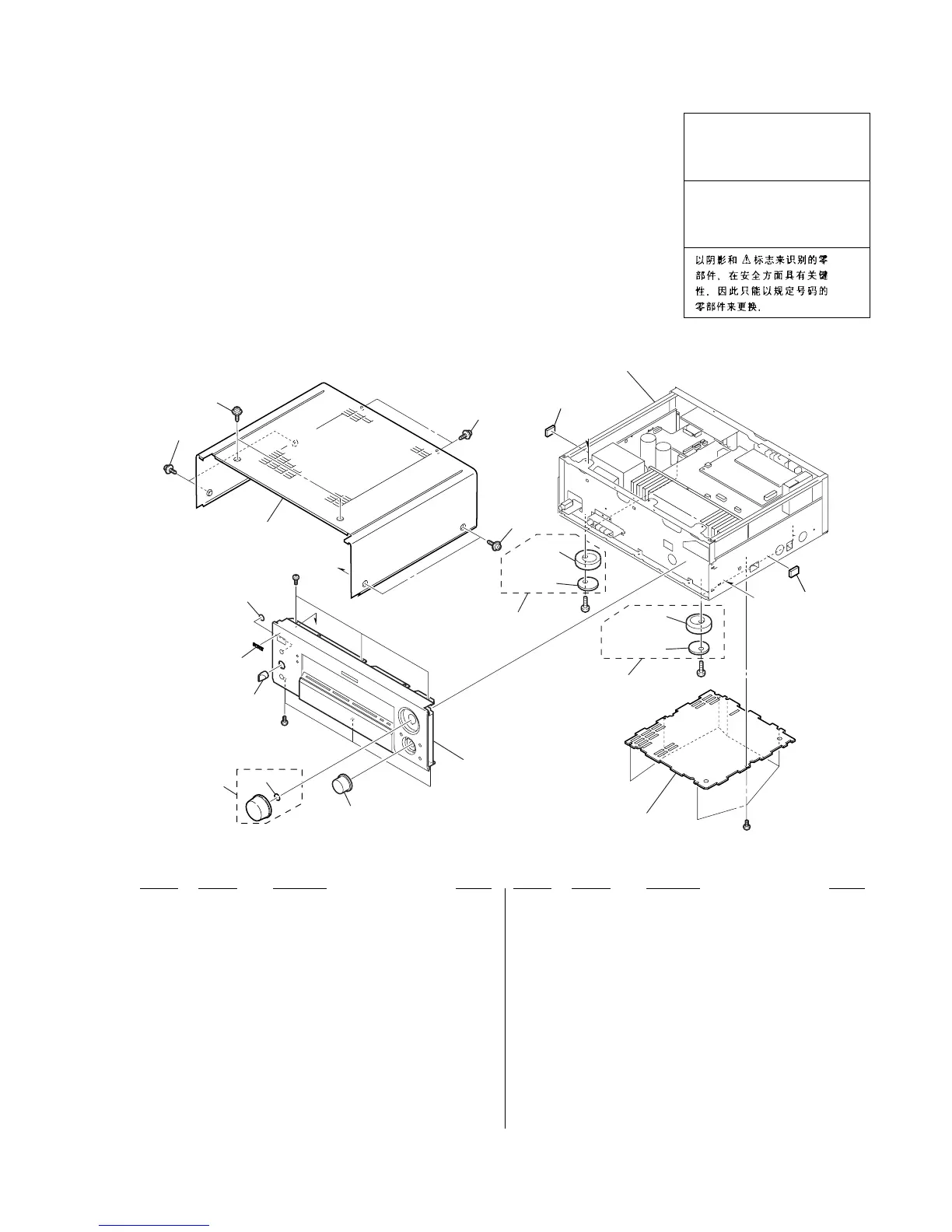

6-1. CASE SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
1 X-4948-601-1 KNOB (FUNC) ASSY (BLACK)
1 X-4948-634-1 KNOB (FUNC) ASSY (GOLD)
1 X-4950-280-1 KNOB (FUNC) ASSY (SILVER)
2 3-703-466-00 SPRING (6600)
3 X-4953-670-1 KNOB (VOL-E) ASSY (BLACK)
3 X-4953-671-1 KNOB (VOL-E) ASSY (GOLD)
3 X-4953-672-1 KNOB (VOL-E) ASSY (SILVER)
5 4-233-626-01 KNOB (F14B) (BLACK)
5 4-233-626-11 KNOB (F14B) (GOLD)
5 4-233-626-21 KNOB (F14B) (SILVER)
6 4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
6 4-942-568-51 EMBLEM (NO.5), SONY (GOLD)
6 4-942-568-61 EMBLEM (NO.5), SONY (SILVER)
7 4-980-776-01 WINDOW, REMOTE CONTROL
8 4-227-843-01 SCREW (TP), FLAT HEAD (BLACK)...(BLACK)
8 4-227-843-11 SCREW (TP), FLAT HEAD
(SILVER)...(SILVER, GOLD)
9 X-4952-818-1 FOOT ASSY (F50180S) (US, CND)
9 X-4952-819-1 FOOT ASSY (F50180S)
(EXCEPT US, CND/SILVER)
9 X-4952-820-1 FOOT ASSY (F50180S) (GOLD)
10 4-970-123-41 FOOT (F50180S) (US, CND)
10 4-970-123-51 FOOT (F50180S) (EXCEPT US, CND/SILVER)
10 4-970-123-61 FOOT (F50180S) (GOLD)
11 4-985-642-01 CUSHION
* 12 X-4950-431-1 CASE ASSY (BLACK)
* 12 X-4950-432-1 CASE ASSY (SILVER)
* 12 X-4950-437-1 CASE ASSY (GOLD)
A
B
B
A
#1
#1
#1
#2
#2
1
3
2
5
6
7
12
8
8
8
8
front panel section-1
chassis section
10
9
9
10
not
supplied
not
supplied
not
supplied
11
11
• Abbreviation
CH : Chinese model
CND : Canadian model
E2 : 120 V AC area in E model
E3 : 240 V AC area in E model
KR : Korean model
MY : Malaysia model
SP : Singapore model
TW : Taiwan model
