59
STR-DB870/DB1070

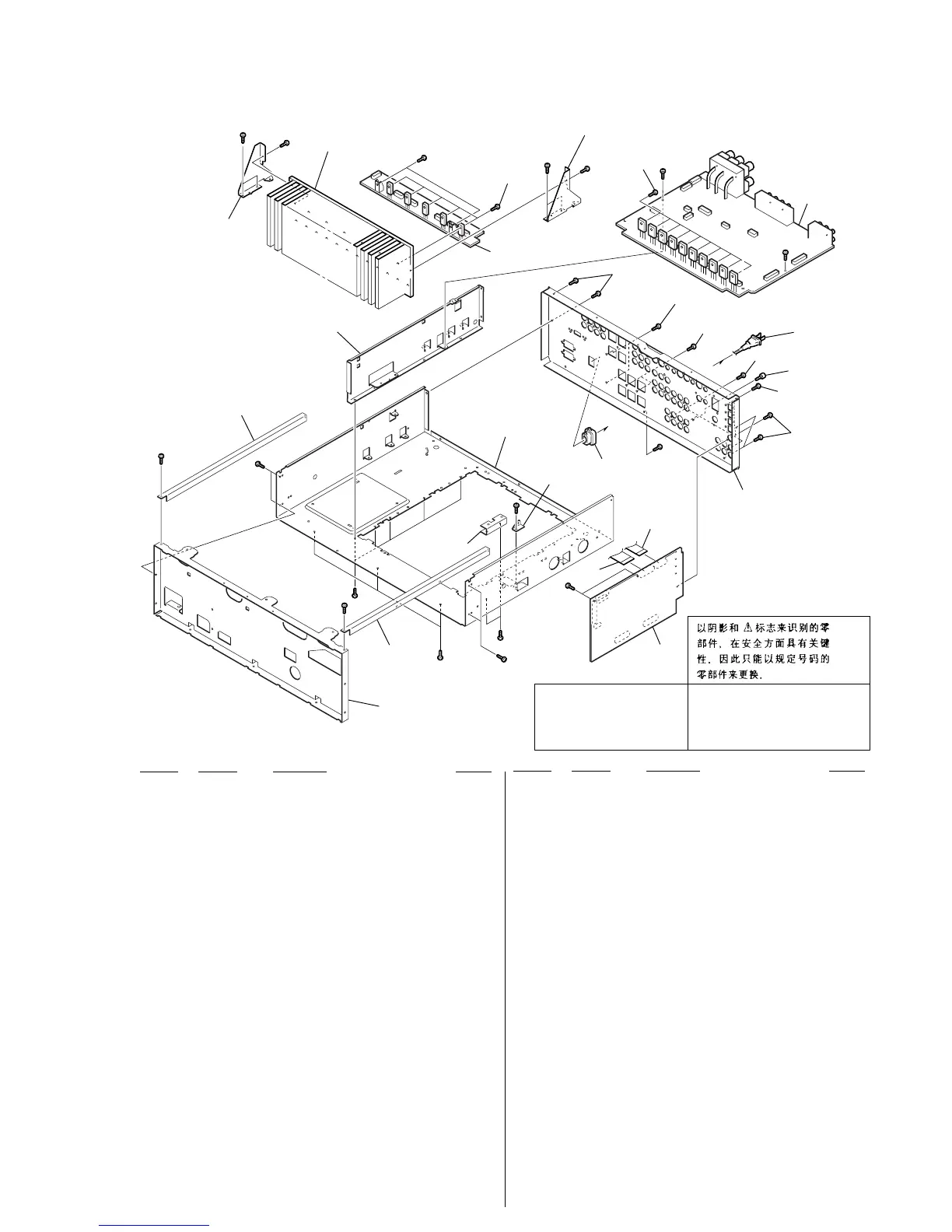

6-5. CHASSIS SECTION-2
201
203
204
205
206
207
207
209
210
208
208
208
212
208
208
208
211
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
201 A-4476-496-A DIGITAL BOARD, COMPLETE (DB870: AEP, UK)
201 A-4476-481-A DIGITAL BOARD, COMPLETE (DB870: CND)
201 A-4476-530-A DIGITAL BOARD, COMPLETE
(DB1070: AEP, UK)
201 A-4476-508-A DIGITAL BOARD, COMPLETE
(DB1070: CND, US)
201 A-4476-519-A DIGITAL BOARD, COMPLETE
(CH, KR, MY, SP, TW)
201 A-4476-525-A DIGITAL BOARD, COMPLETE (E2, E3)
203 1-769-939-11 WIRE (FLAT TYPE) (11 CORE)
(DB870: AEP, UK)
203 1-773-001-11 WIRE (FLAT TYPE) (15 CORE)
(DB1070: EXCEPT US, CND)
203 1-773-143-11 WIRE (FLAT TYPE) (21 CORE) (CND, US)
204 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (DB870)
204 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (DB1070)
* 205 3-703-244-00 BUSHING (2104), CORD
206 A-4476-487-A BIAS BOARD, COMPLETE (DB870: AEP, UK)
206 A-4726-840-A BIAS BOARD, COMPLETE (DB870: CND)
206 A-4476-528-A BIAS BOARD, COMPLETE (DB1070: AEP, UK)
206 A-4476-841-A BIAS BOARD, COMPLETE (DB1070: CND)
206 A-4476-512-A BIAS BOARD, COMPLETE
(CH, E2, E3, KR, MY, SP, TW)
206 A-4476-499-A BIAS BOARD, COMPLETE (US)
207 3-905-609-11 SCREW (TRANSISTOR)
208 3-704-515-21 SCREW (BV/RING)
209 A-4476-486-A MAIN BOARD, COMPLETE (DB870: AEP, UK)
209 A-4476-485-A MAIN BOARD, COMPLETE (DB870: CND)
209 A-4476-527-A MAIN BOARD, COMPLETE (DB1070: AEP, UK)
209 A-4476-510-A MAIN BOARD, COMPLETE (DB1070: CND)
209 A-4476-511-A MAIN BOARD, COMPLETE
(CH, E2, E3, KR, MY, SP, TW)
209 A-4476-498-A MAIN BOARD, COMPLETE (US)
0 210 1-769-079-21 CORD, POWER (KR)
0 210 1-769-743-11 CORD, POWER (CND)
0 210 1-777-071-21 CORD, POWER (DB870: AEP, UK/
DB1070: AEP, E2, E3, MY, SP, TW, UK)
0 210 1-782-464-21 CORD, POWER (CH)
0 210 1-783-820-11 CORD, POWER (US)
211 4-233-610-01 PANEL (B9), BACK (US)
211 4-233-610-11 PANEL (B9), BACK (DB1070: CND)
211 4-233-610-21 PANEL (B9), BACK (MY, SP)
211 4-233-610-31 PANEL (B9), BACK (CH)
211 4-233-610-51 PANEL (B9), BACK (DB1070: AEP, UK)
211 4-233-610-71 PANEL (B9), BACK (E2, E3)
211 4-233-610-81 PANEL (B9), BACK (TW)
211 4-233-610-91 PANEL (B9), BACK (KR)
211 4-233-630-11 PANEL (B8.E10), BACK (DB870: CND)
211 4-233-630-21 PANEL (B8.E10), BACK (DB870: AEP, UK)
212 4-947-010-01 SCREW, FEEDER FIXED
To Next Page
