Sony STR-DB870 Service Manual

58
STR-DB870/DB1070

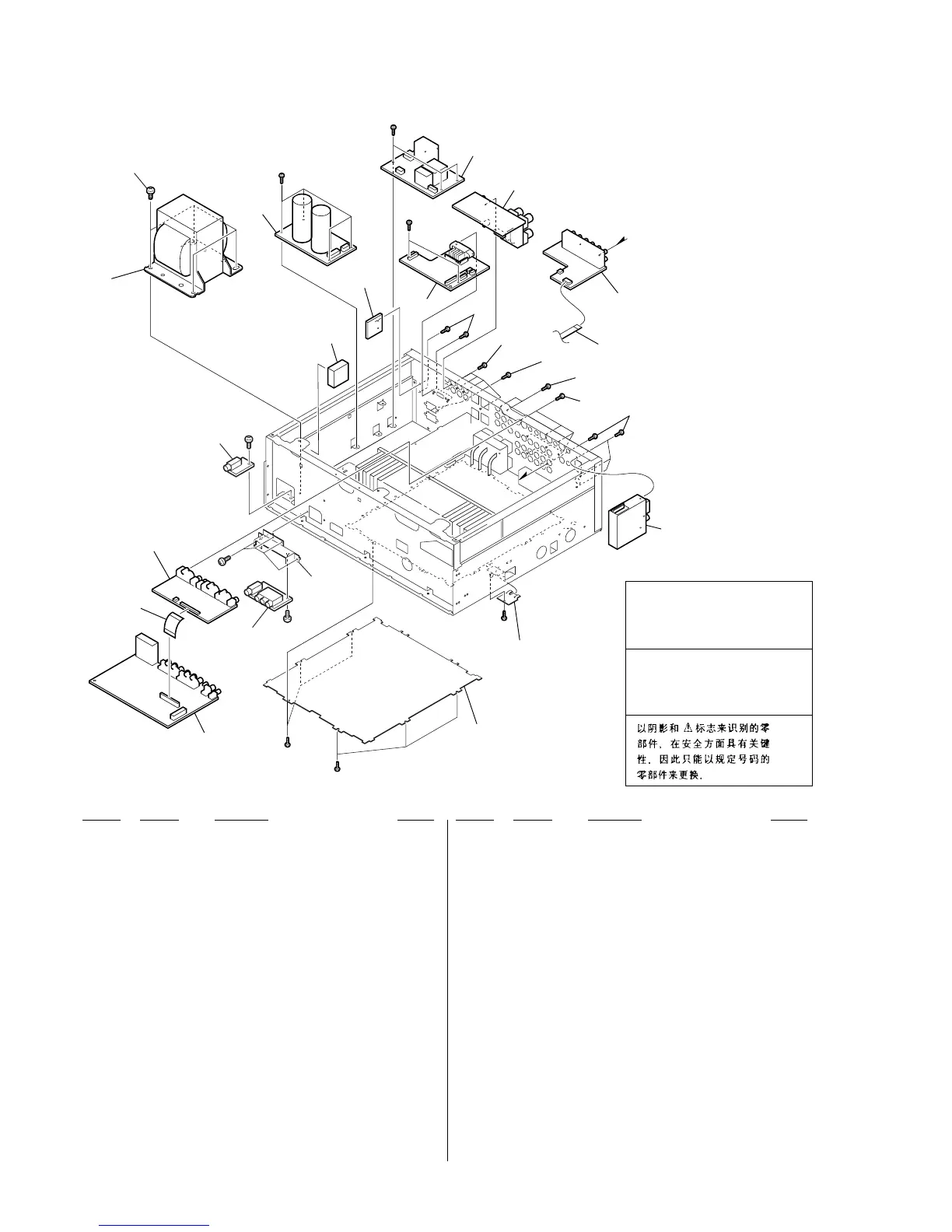

6-4. CHASSIS SECTION-1
151
152
160
159
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
not
supplied
T901
153
157
161
161
161
161
161
164
158
155
156
154
161
163
165
162
#1
#1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 A-4476-492-A VIDEO BOARD, COMPLETE (DB870: AEP, UK)
151 A-4476-477-A VIDEO BOARD, COMPLETE (DB870: CND)
151 A-4476-516-A VIDEO BOARD, COMPLETE
(DB1070: EXCEPT US, CND)
151 A-4476-505-A VIDEO BOARD, COMPLETE
(DB1070: CND, US)
152 1-773-105-11 WIRE (FLAT TYPE) (19 CORE)
153 A-4476-493-A S-VIDEO BOARD, COMPLETE
(DB870: AEP, UK)
153 A-4476-478-A S-VIDEO BOARD, COMPLETE (DB870: CND)
153 A-4476-517-A S-VIDEO BOARD, COMPLETE
(DB1070: EXCEPT US, CND)
153 A-4476-506-A S-VIDEO BOARD, COMPLETE
(DB1070: CND, US)
154 1-681-104-11 VIDEO 3 BOARD
155 1-681-103-11 H.P BOARD
156 4-900-386-01 SCREW
157 1-681-092-11 DC1 BOARD
158 1-681-105-11 SP BOARD
159 1-681-096-11 VIDEO AU BOARD
160 1-769-904-11 WIRE (FLAT TYPE) (9 CORE)
161 3-704-515-21 SCREW (BV/RING)
162 1-681-091-11 AC BOARD
163 A-4726-835-A DC 2 BOARD, COMPLETE (DB1070: CND)
163 A-4476-491-A DC 2 BOARD, COMPLETE (DB870: AEP, UK)
163 A-4476-476-A DC 2 BOARD, COMPLETE (DB870: CND)
163 A-4476-529-A DC 2 BOARD, COMPLETE (DB1070: AEP, UK)
163 A-4476-515-A DC 2 BOARD, COMPLETE
(CH, E2, E3, KR, MY, SP, TW)
163 A-4476-504-A DC 2 BOARD, COMPLETE (US)
164 1-693-539-21 TUNER
(DB870: CND/DB1070: CND, E2, E3, US)
164 1-693-540-21 TUNER(DB870: AEP, UK/
DB1070: AEP, CH, KR, MY, SP, TW, UK)
165 1-681-106-11 V.SWITCH BOARD (E2, E3)
0 T901 1-437-324-11 TRANSFORMER, POWER (TW)
0 T901 1-437-325-11 TRANSFORMER, POWER (CND, US)
0 T901 1-437-327-11 TRANSFORMER, POWER (DB870: AEP, UK /
DB1070: AEP, CH, KR, MY, SP, UK)
0 T901 1-437-328-11 TRANSFORMER, POWER (E2, E3)
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
