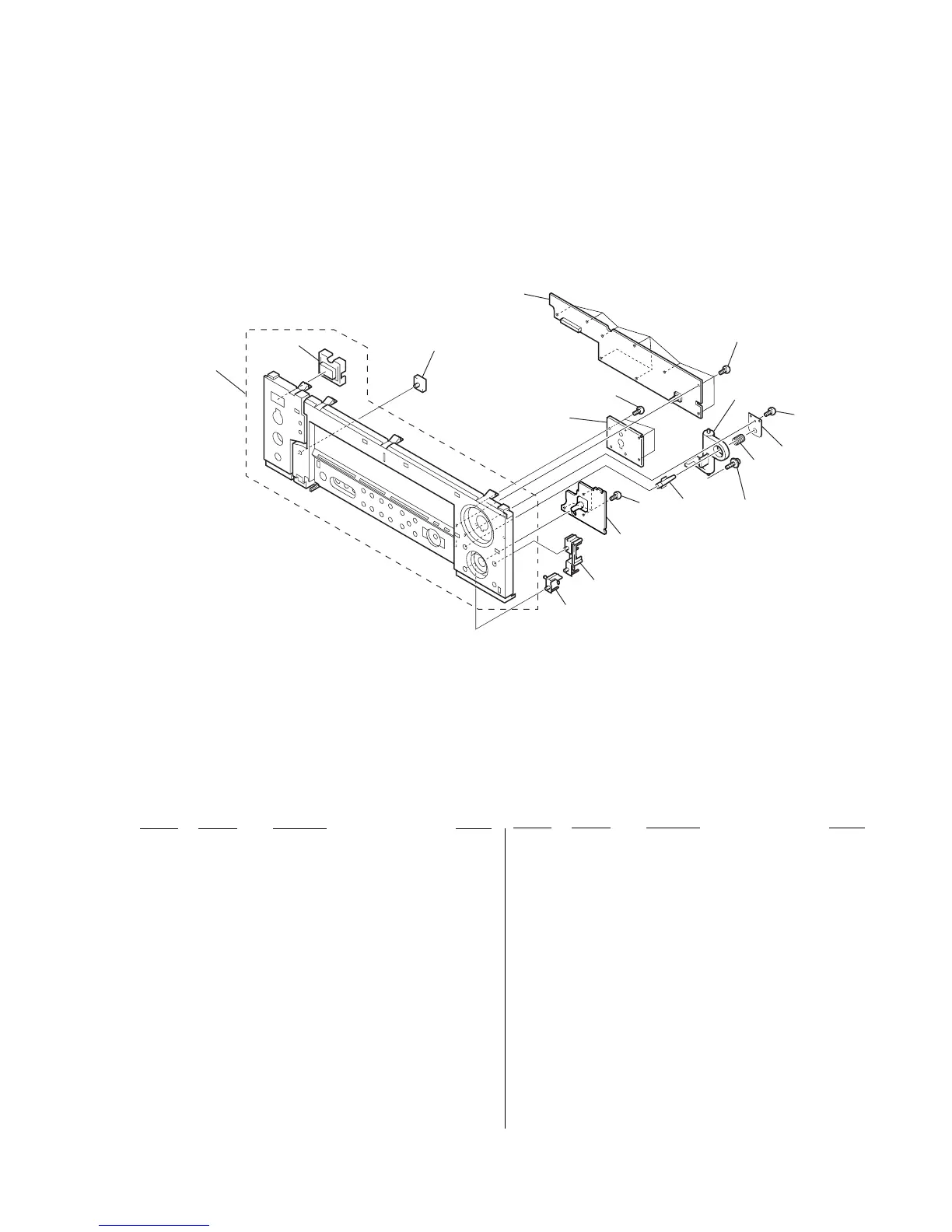

6-3. FRONT PANEL SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-4953-673-1 BASE ASSY, PANEL (DB1070: CND, E2, E3, US)
101 X-4953-674-1 BASE ASSY, PANEL (for BLACK)
(DB1070: AEP, UK)
101 X-4953-675-1 BASE ASSY, PANEL (for SILVER)
(DB1070: AEP, UK)
101 X-4953-676-1 BASE ASSY, PANEL (CH, KR, MY, SP, TW)
101 X-4953-677-1 BASE ASSY, PANEL (DB870: CND)
101 X-4953-678-1 BASE ASSY, PANEL (for BLACK)
(DB870: AEP, UK)
101 X-4953-741-1 BASE ASSY, PANEL (for SILVER)
(DB870: AEP, UK)
102 4-998-592-01 BUTTON (POWER) (BLACK)
102 4-998-592-12 BUTTON (POWER) (GOLD)
102 4-998-592-23 BUTTON (POWER) (SILVER)
103 4-951-620-01 SCREW (2.6X8), +BVTP
104 A-4476-470-A SW BOARD, COMPLETE (DB870)
104 A-4476-501-A SW BOARD, COMPLETE (DB1070)
105 4-233-621-01 BUTTON (ON SCREEN) (BLACK) (DB1070)
105 4-233-621-11 BUTTON (ON SCREEN) (GOLD) (DB1070)
105 4-233-621-21 BUTTON (ON SCREEN) (SILVER)(DB1070)
107 4-913-587-81 BLACKET, YOKE
108 4-227-150-01 SPRING, COMPRESSION
109 4-227-143-01 LEVER (OPEN) (BLACK)
109 4-227-143-11 LEVER (OPEN) (GOLD)
109 4-227-143-21 LEVER (OPEN) (SILVER)
110 4-227-142-01 BUTTON (OPEN) (BLACK)
110 4-227-142-11 BUTTON (OPEN) (GOLD)
110 4-227-142-21 BUTTON (OPEN) (SILVER)
111 1-681-100-11 MUTING BOARD
112 X-4952-765-1 BUTTON (MUTING) ASSY (BLACK)
112 X-4952-766-1 BUTTON (MUTING) ASSY (GOLD)
112 X-4952-767-1 BUTTON (MUTING) ASSY (SILVER)
113 4-233-620-01 BUTTON (INPUT MODE) (BLACK)
113 4-233-620-11 BUTTON (INPUT MODE) (GOLD)
113 4-233-620-21 BUTTON (INPUT MODE) (SILVER)
