Sony STR-DB870 Service Manual

9
STR-DB870/DB1070
Note: Follow the disassembly procedure in the numerical order given.

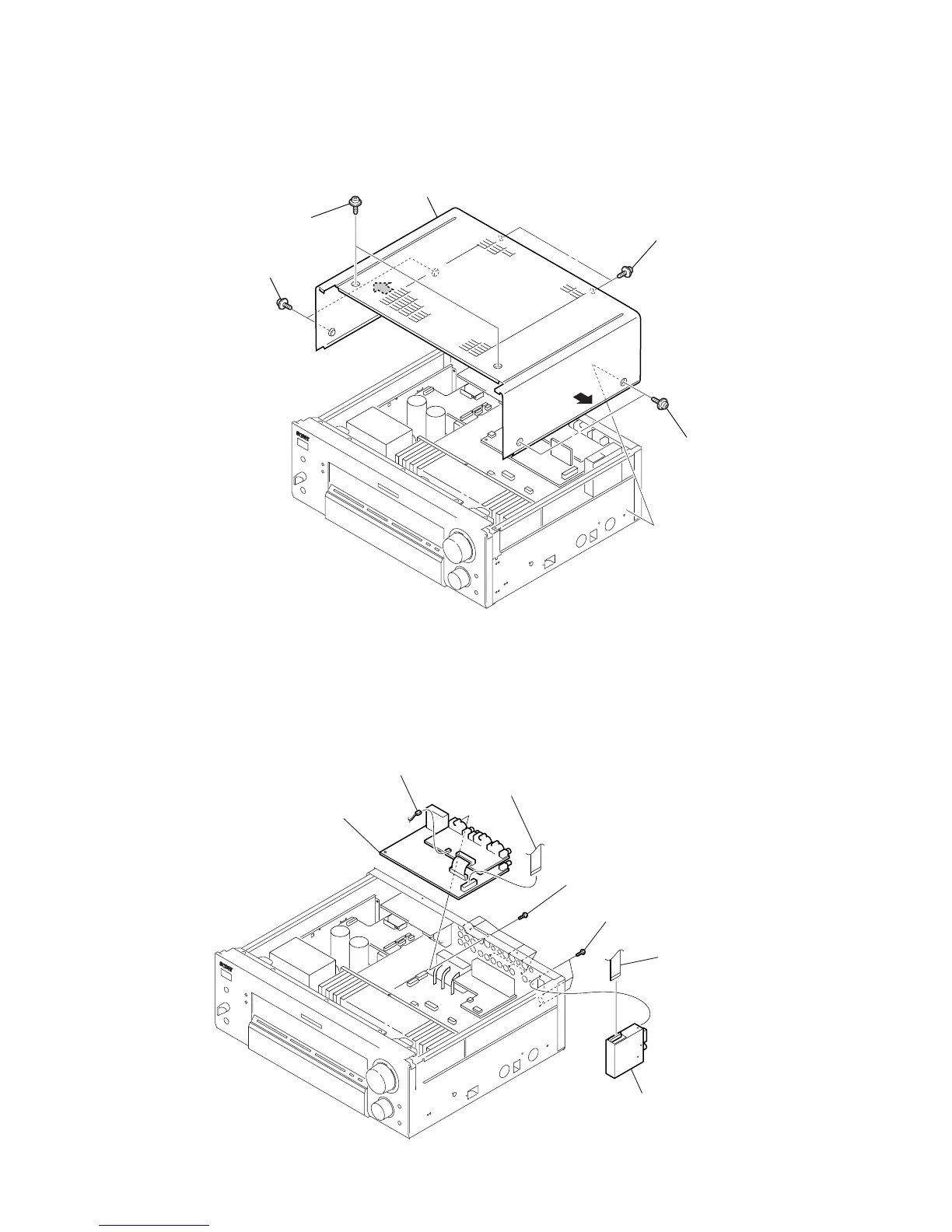

3-2. CASE
3-3. S-VIDEO BOARD, VIDEO BOARD, TUNER
1 two screws
(flat head)
1 two screws
(flat head)
3 case assy
2
2
1 two screws
(flat head)
1 two screw
s
(flat head)
1 connector
(CN753)
4 S-VIDEO board,
VIDEO board
2 wire (flat type) (11 core) (DB870: AEP, UK models)
wire (flat type) (15 core) (DB1070: EXCEPT US, Canadian models
)
wire (flat type) (21 core) (US, Canadian models)
(CN303)
5 wire (flat type)
(15 core) (CN1)
3 eight screws (BV/RING)
6 three screws (BV/RING)
7 tuner
