STR-DB870/DB1070

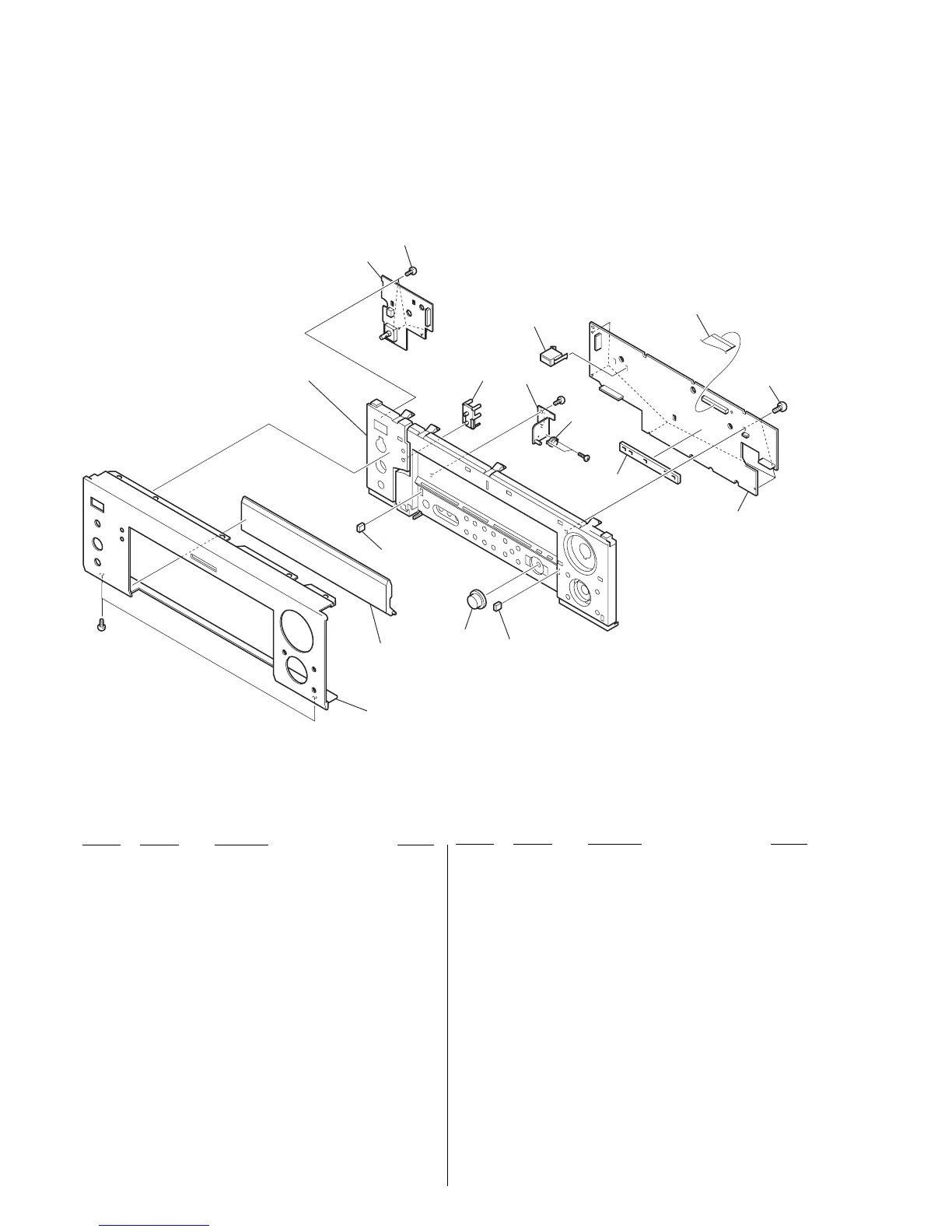

6-2. FRONT PANEL SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-233-627-01 PANEL, FRONT (DB1070: CND, E2, E3, US)
51 4-233-627-11 PANEL, FRONT (for BLACK) (DB1070: AEP, UK)
51 4-233-627-21 PANEL, FRONT (for SILVER)
(DB1070: AEP, UK)
51 4-233-627-31 PANEL, FRONT (CH, KR, MY, SP, TW)
51 4-233-627-51 PANEL, FRONT (DB870: CND)
51 4-233-627-61 PANEL, FRONT (for BLACK) (DB870: AEP, UK)
51 4-233-627-71 PANEL, FRONT (for SILVER) (DB870: AEP, UK)
52 A-2004-824-A LID ASSY (for SILVER) (DB870: AEP, UK)
52 A-4412-934-A LID ASSY (for BLACK) (DB870: AEP, CND, UK)
52 A-4412-938-A LID ASSY (for BLACK)
(DB1070: AEP, CND, E2, E3, UK, US)
52 A-4412-940-A LID ASSY (CH, KR, MY, SP, TW)
52 A-4412-942-A LID ASSY (for SILVER) (DB1070: AEP, UK)
53 3-736-779-41 MAGNET (BLACK)
53 3-736-779-71 MAGNET (SILVER)
53 3-736-779-81 MAGNET (GOLD)
54 4-217-729-01 KNOB (JOG) (BLACK)
54 4-217-729-11 KNOB (JOG) (GOLD)
54 4-217-729-21 KNOB (JOG) (SILVER)
57 4-227-138-01 BUTTON (DISPLAY) (BLACK)
57 4-227-138-11 BUTTON (DISPLAY) (GOLD)
57 4-227-138-21 BUTTON (DISPLAY) (SILVER)
58 1-681-101-11 POWER BOARD
59 4-951-620-01 SCREW (2.6X8), +BVTP
60 X-4952-753-1 BRACKET (DAMPER L) ASSY
61 3-973-975-31 DAMPER, OIL
62 1-765-352-11 WIRE (FLAT TYPE) (31 CORE)
63 A-4476-467-A DISP BOARD, COMPLETE (DB870)
63 A-4476-500-A DISP BOARD, COMPLETE (DB1070)
65 4-227-153-01 SHEET (LIGHT INTERCEPTION)
66 4-233-625-01 HOLDER (6.1CH)
