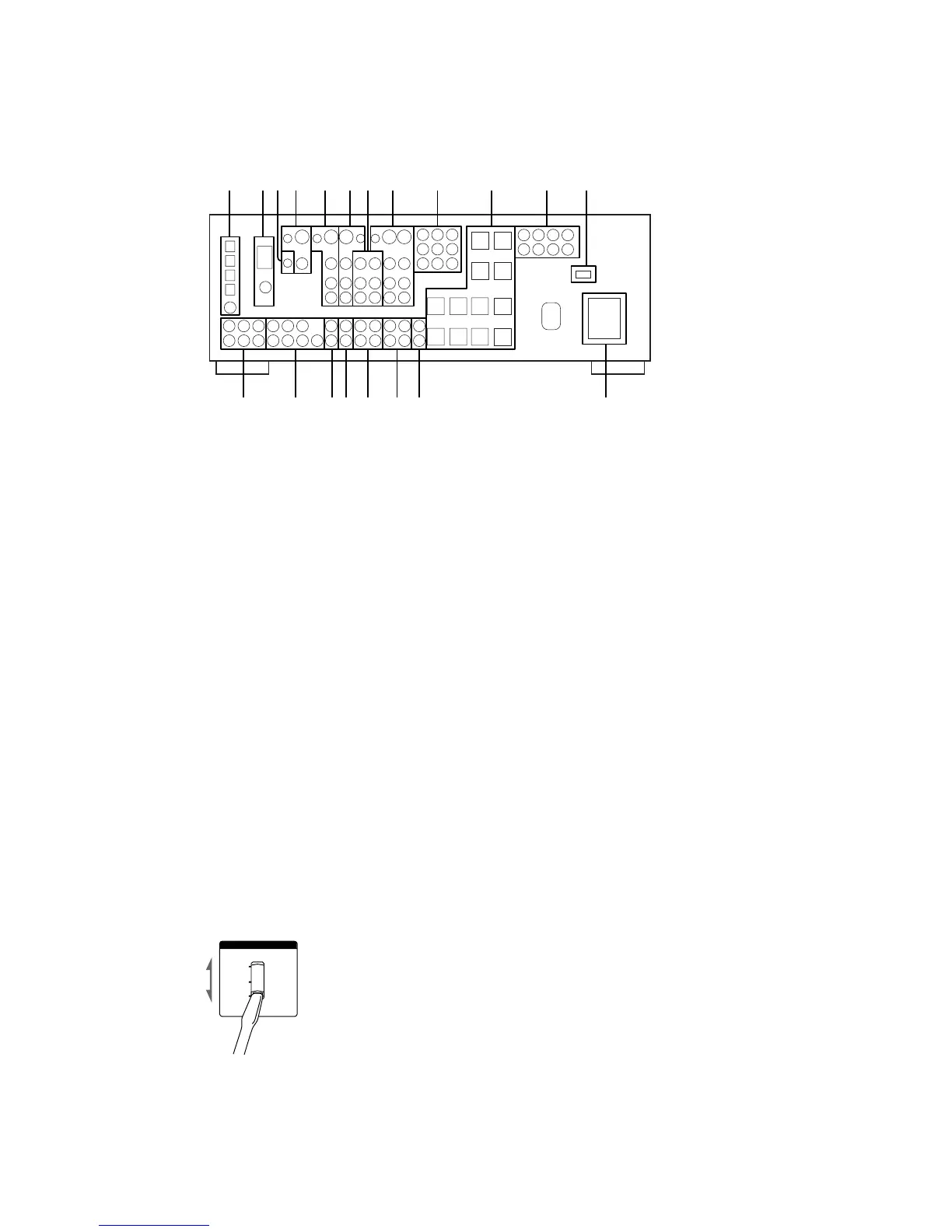

7
STR-DB870/DB1070
1
qd qf qgqh ql w;qj qk
2 43 9 qa qs5 8 06 7
1 DIGITAL jack
2 ANTENNA terminal
3 CONTROL A1 II jack
4 MONITOR jack
5 TV/SAT jack
6 DVD/LD jack
7 VIDEO 2 jack
8 VIDEO 1 jack
9 COMPONENT VIDEO jack (US and Canadian models)
0 SPEAKER terminal
qa PRE OUT jack
qs IMPEDANCE SELECTOR switch
qd MULTI CH IN jack (STR-DB870)
MULTI CH IN 2 jack (STR-DB1070)
qf MULTI CH IN 1 jack (STR-DB1070)
qg PHONO jack
qh CD/SACD jack
qj MD/TAPE jack (STR-DB870)
MD/DAT jack (STR-DB1070)
qk TAPE jack (STR-DB1070)
ql 2ND ROOM jack (STR-DB1070)
w; AC OUTLET
Setting the voltage selector
(120 V AC area and 240 V AC area in E models)
If your receiver has a voltage selector on the
rear panel, check that the voltage selector is set
to the local power supply voltage. If not, use a
screwdriver to set the selector to the correct
position before connecting the AC power cord
to a wall outlet.
220V
120V
240V
VOLTAGE SELECTOR
– Rear Panel –
