Sony STR-DE585 - Front Panel Section Exploded View

36
STR-DE585

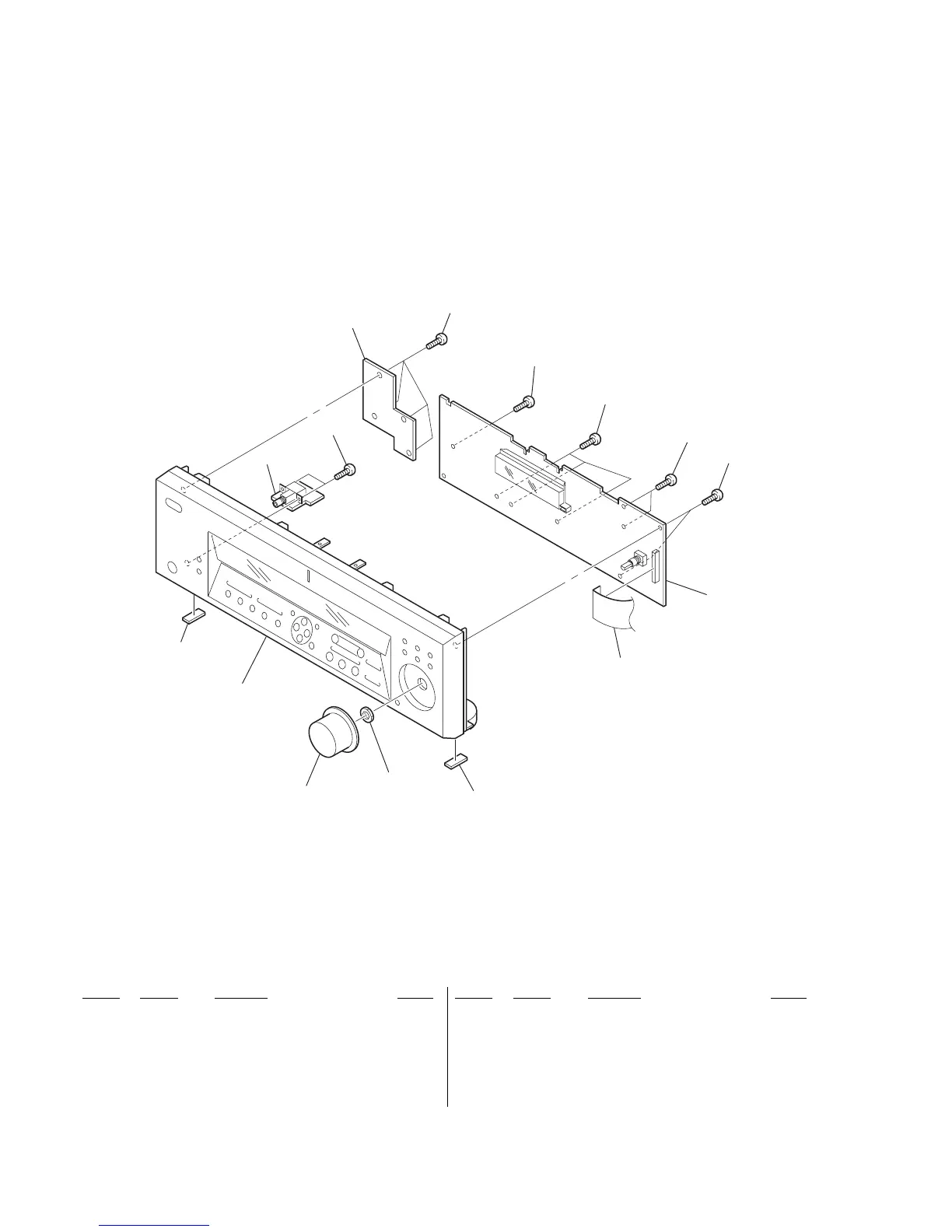

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4954-472-1 PANEL ASSY, FRONT (BLACK) (Canadian)
51 X-4954-706-1 PANEL ASSY, FRONT (BLACK) (AEP,UK)
51 X-4954-707-1 PANEL ASSY, FRONT (SILVER)
52 4-921-941-01 CUSHION
53 1-773-250-11 WIRE (FLAT TYPE) (27 CORE)
54 1-683-763-11 HEADPHONE BOARD
55 1-683-759-11 POWER SW BOARD
56 4-951-620-01 SCREW (2.6X8), +BVTP
57 A-4727-847-A DISPLAY BOARD, COMPLETE
58 4-232-113-01 KNOB (VOL) (BLACK)
58 4-232-113-12 KNOB (VOL) (SILVER)
58
52
52
51
54
55
56
56
56
56
56
56
57
53
supplied with
RV102
