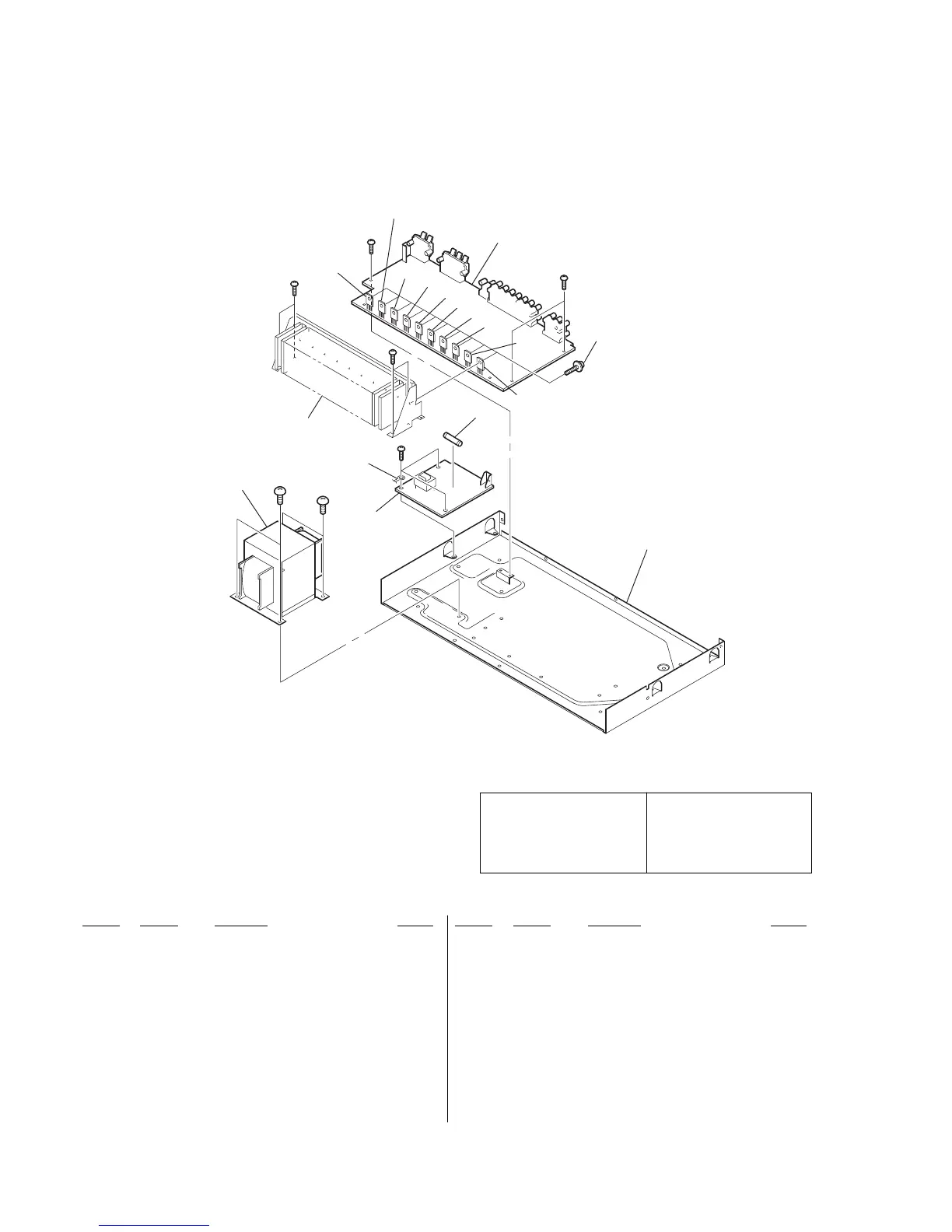

Sony STR-DE585 - Chassis Section-2 Exploded View

38
STR-DE585
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-4727-841-A STANDBY BOARD, COMPLETE (Canadian)
151 A-4727-850-A STANDBY BOARD, COMPLETE (AEP,UK)
152 3-905-609-01 SCREW (TRANSISTOR)
153 A-4676-978-A MAIN BOARD, COMPLETE (AEP,UK)
153 A-4727-992-A MAIN BOARD, COMPLETE (Canadian)
0 F901 1-532-464-31 FUSE (T2.5A/250V) (AEP,UK)
0 F901 1-576-193-11 FUSE (6.3A/125V) (Canadian)
Q503 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q504 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q603 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q604 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q653 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q654 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-435-903-11 TRANSFORMER, POWER (AEP,UK)
0 T901 1-435-905-11 TRANSFORMER, POWER (Canadian)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-880-09 SCREW +BVTT 4X6 (S)
#3 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
152
151
153
T901
#2
#2
#3
#1
#1
#3
#1
F901
not supplied
not supplied
not supplied
Q604
Q603
Q754
Q753
Q654
Q653
Q704
Q703
Q504
Q503
5-4. CHASSIS SECTION-2
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
