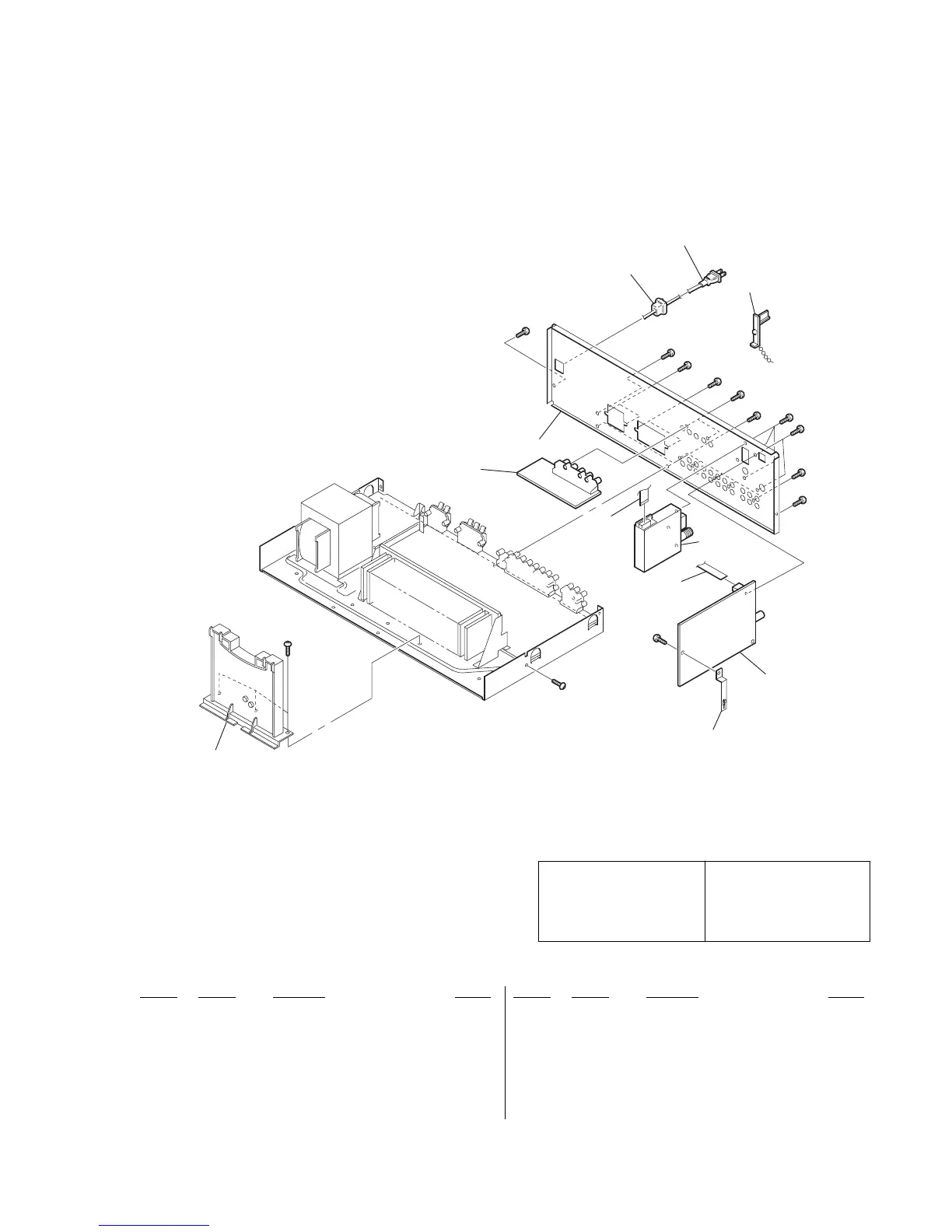

Sony STR-DE585 - Chassis Section-1 Exploded View

37
STR-DE585
5-3. CHASSIS SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-4727-840-A VIDEO BOARD, COMPLETE (Canadian)
101 A-4727-849-A VIDEO BOARD, COMPLETE (AEP,UK)
102 1-769-940-11 WIRE (FLAT TYPE) (11 CORE) (Canadian)
102 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
0 103 1-769-744-11 CORD, POWER (AEP,UK)
0 103 1-783-820-11 CORD, POWER (Canadian)
104 3-703-244-00 BUSHING (FBS001), CORD
105 1-575-662-31 WIRE (FLAT TYPE) (5 CORE)
106 A-4676-979-A DIGITAL BOARD, COMPLETE (AEP,UK)
106 A-4727-993-A DIGITAL BOARD, COMPLETE (Canadian)
107 4-956-370-12 BAND, PLUG FIXED (UK)
TM301 1-693-577-21 TUNER PACK (FM/AM) (ANTENNA) (Canadian)
TM301 1-693-578-21 TUNER PACK (FM/AM) (ANTENNA) (AEP,UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
104
103
107
101
106
102
105
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
TM301
#1
not supplied
not supplied
not supplied
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
