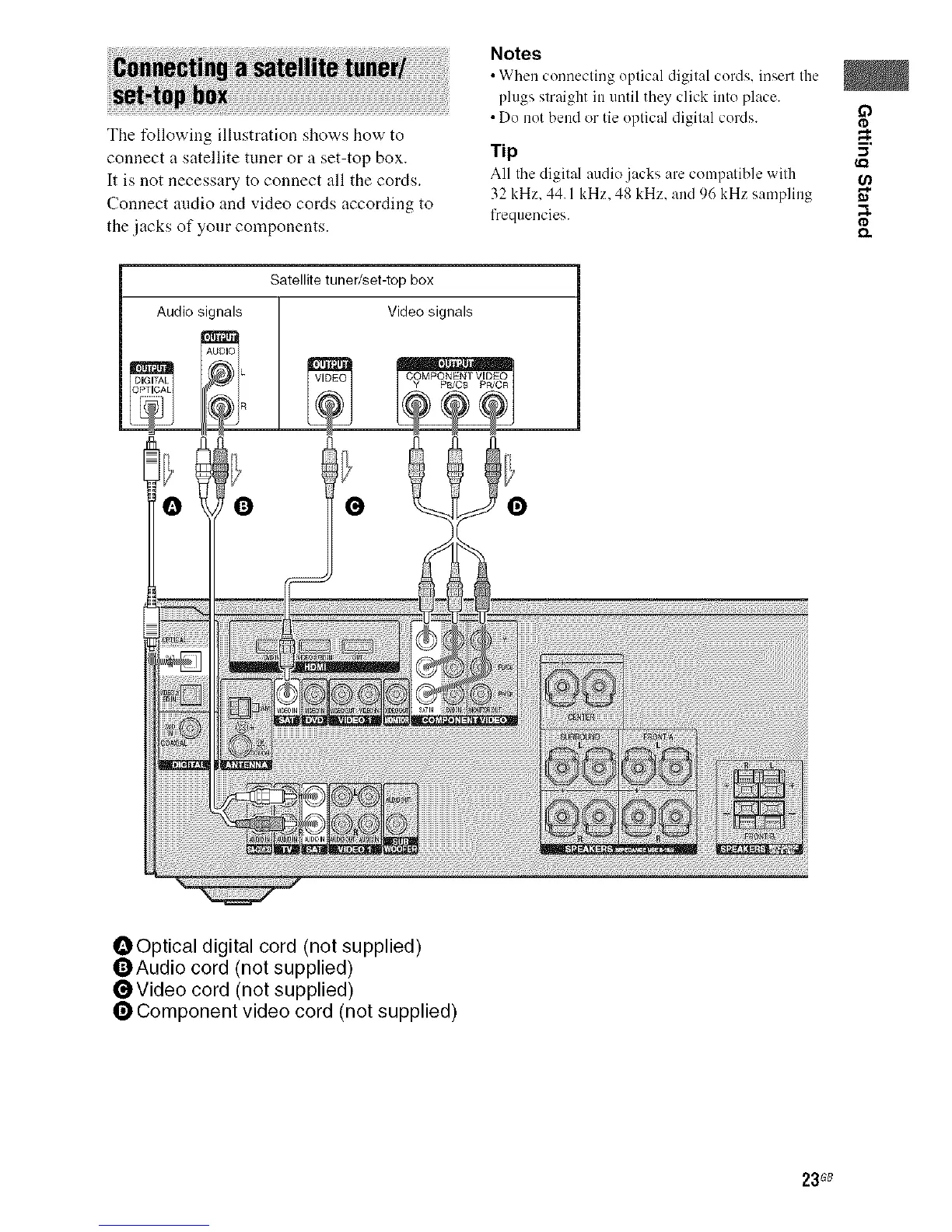

The following illustration shows how to
connect a satellite tuner or a set-top box.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Satellite tuner/set-top box
Audio signals Video signals
Notes
• When c'enneciing epiic'al digital c'eMs, insert the
plugs straight in until they click ink) place.
• De net bend or tie eplical digital ceMs. _'_
Tip 5'
All the digital audio jacks are compatible with
32 kHz. 44.1kHz. 48 kHz. and 96 kHz sampling _,
frequencies.
OOptical digital cord (not supplied)
OAudio cord (not supplied)
OVideo cord (not supplied)
O Component video cord (not supplied)
