4. CONNECTION PAIRING BLUETOOTH
Operates the BLUETOOTH function.
5. TUNER PRESET +/–
6. NFC sensor
7. A.F.D./2CH, MOVIE, MUSIC
8. Display panel
9. DISPLAY MODE
Switches information on the display panel.
10. ZONE SELECT, ZONE POWER
11. DIMMER
Adjusts the brightness of the display panel in 3 levels.
12. Remote control sensor
Receives signals from remote control.
13. PURE DIRECT
The indicator above the button lights up when the Pure Direct function is activated.
[2] Parts and Controls Receiver (STR-DN1060)

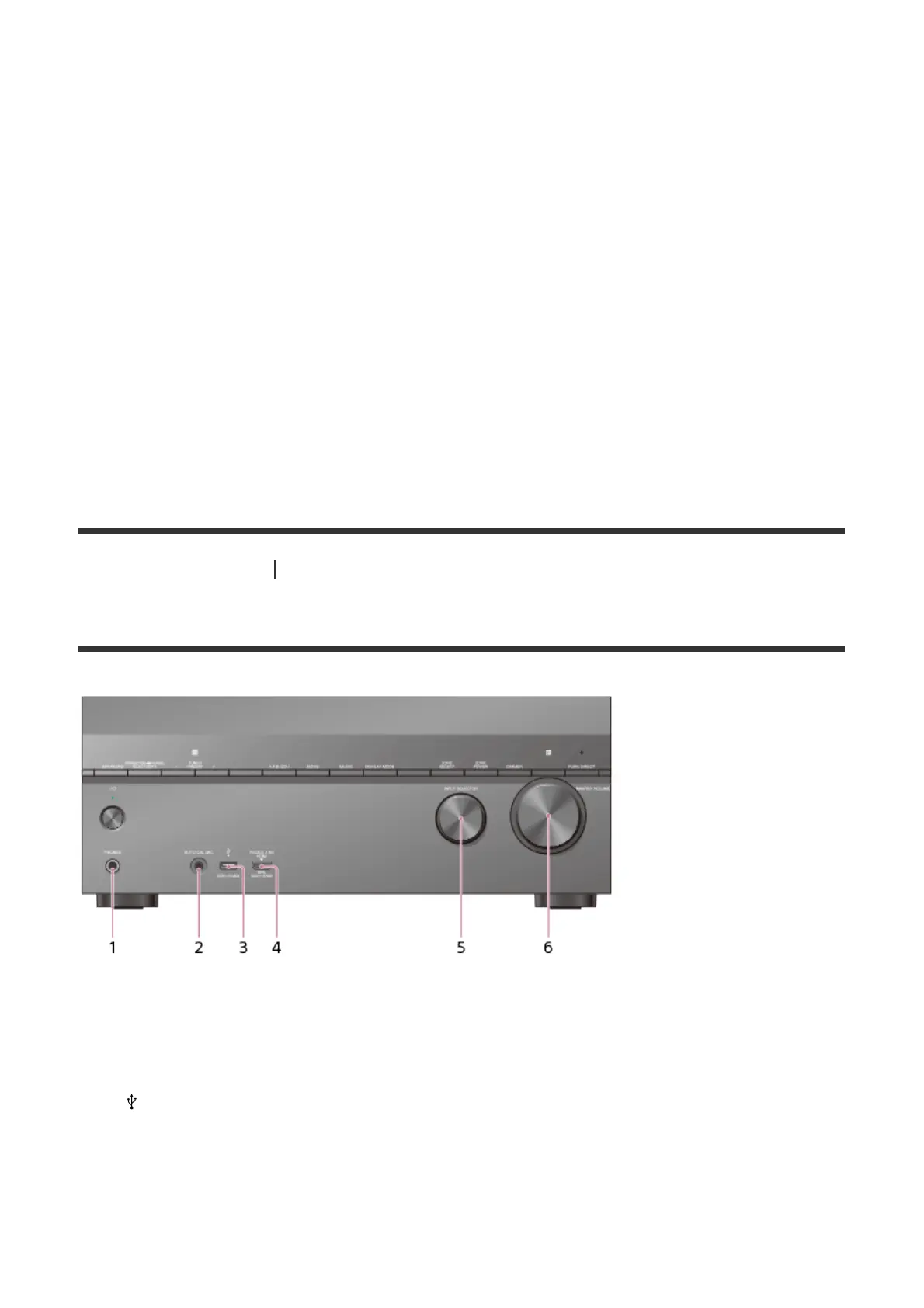

Front panel (STR-DN1060) (lower section)
1. PHONES jack
Connect headphones here.
2. AUTO CAL MIC jack
3. (USB) port
4. HDMI/MHL (VIDEO 2 IN) jack
5. INPUT SELECTOR
6. MASTER VOLUME
