Front speaker (Left)
Front speaker (Right)
Center speaker
Surround speaker (Left)
Surround speaker (Right)
Surround back speaker (Left)
Surround back speaker (Right)
Subwoofer
When using a 6.1-channel connection
The following illustration is an example of an arrangement with only one surround back
speaker. Place the surround back speaker behind the position from which you will listen to
the sound.

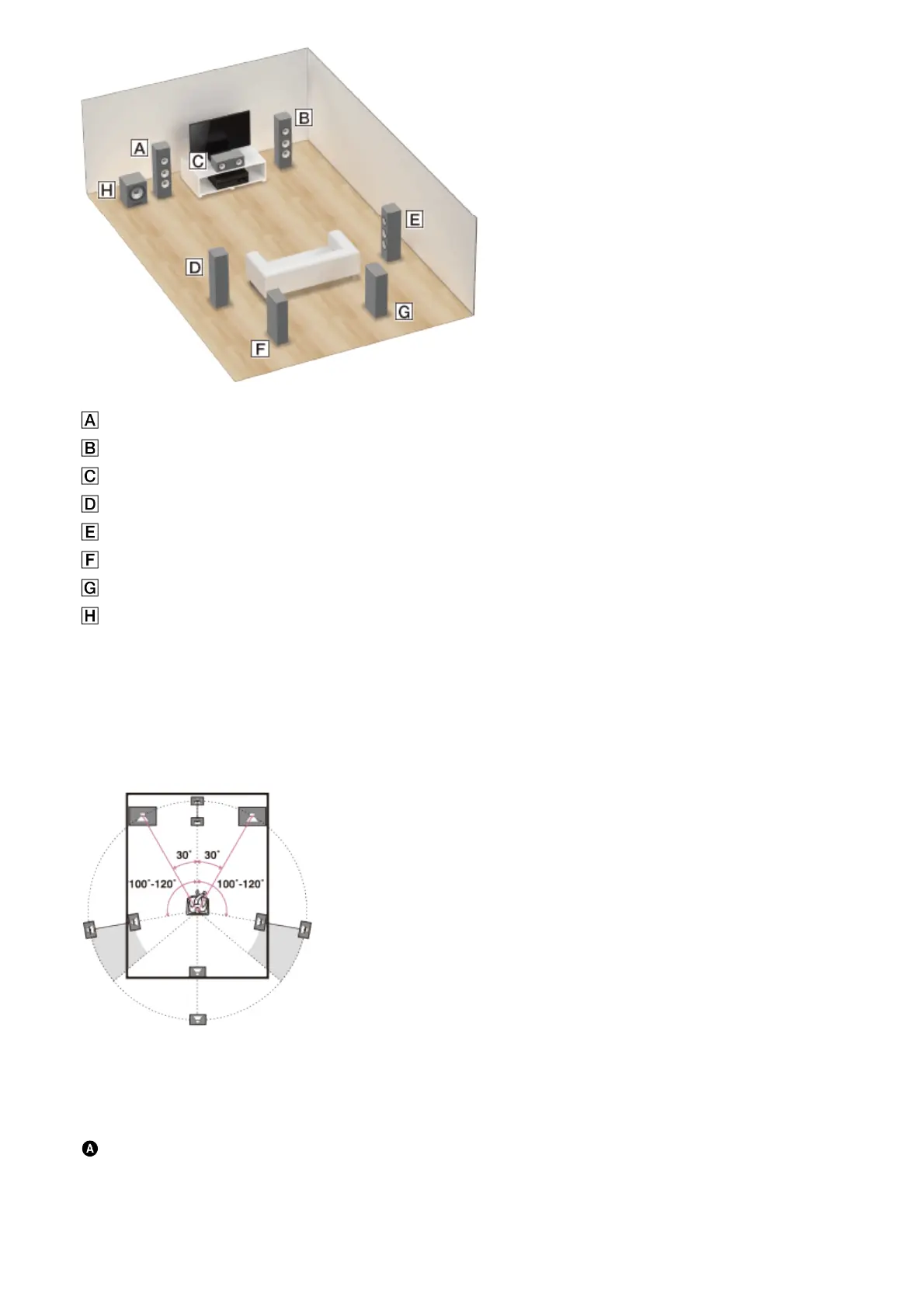

7.1-channel speaker placement
Place the surround back speakers as shown in the illustration below. The angles shown by
should be the same.
