Sony STR-KM5000 - Main Board Removal

STR-KM5000
11

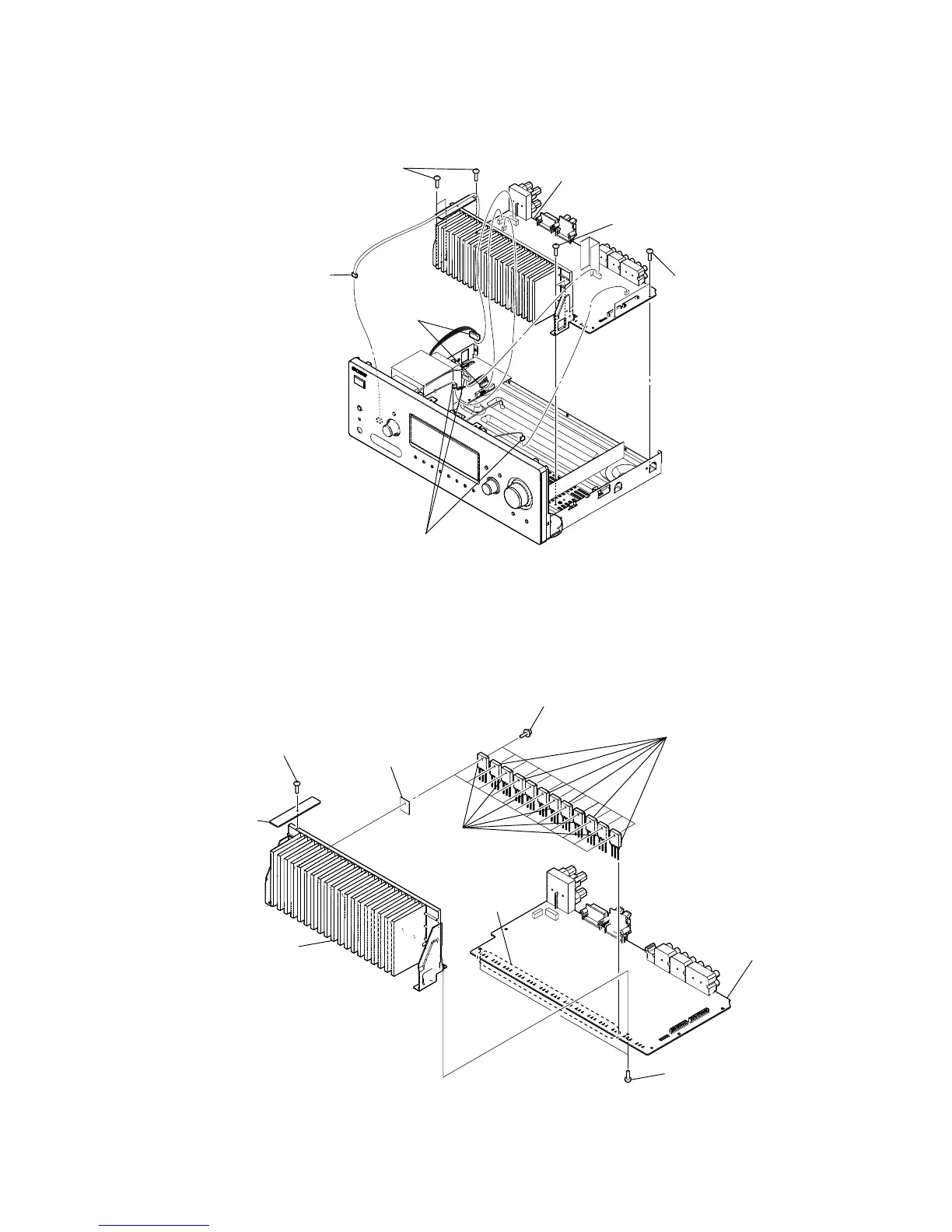

3-5. MAIN BLOCK
3-6. MAIN BOARD

two screws
(BV3)

two screws
(BV3)

main block

three screws
(BV3)

three connectors
(CNP430, CNP500, CNP930)

two connectors
(CNP921, CNP940)

connector
(CN790)

two screws
(BVTP3
×
8)

MAIN board

heatsink assy

Remove the
thirty six solders.

twelve screws
(transistor)

six transistor MN2488-OPY-MK
(Q603, Q653, Q703, Q753, Q803, Q853)

six transistor MP1620-OPY-MK
(Q604, Q654, Q704, Q754,
Q804, Q854)

screw
(BV3)

wire route board

twelve sheets
