53
STR-KM5000
SECTION 7
EXPLODED VIEWS
1 2-661-142-01 VOLUME KNOB
2 X-2190-020-1 KNOB MENU ASSY
3 X-2188-072-2 FRONT PANEL ASSY
4 4-977-358-01 CUSHION
5 3-087-053-01 +BVTP2.6 (3CR)
6 A-1438-334-A DISPLAY BOARD, COMPLETE
7 3-701-748-00 CLAMP
8 2-580-630-01 SCREW, +BVST 4X8
9 3-285-693-11 CASE
10 1-829-004-11 WIRE (FLAT TYPE) (19 CORE)
RV101 1-418-817-31 ENCODER, ROTARY (INPUT SELECTOR)
RV102 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
RV103 1-418-817-31 ENCODER, ROTARY (– TUNEING +)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

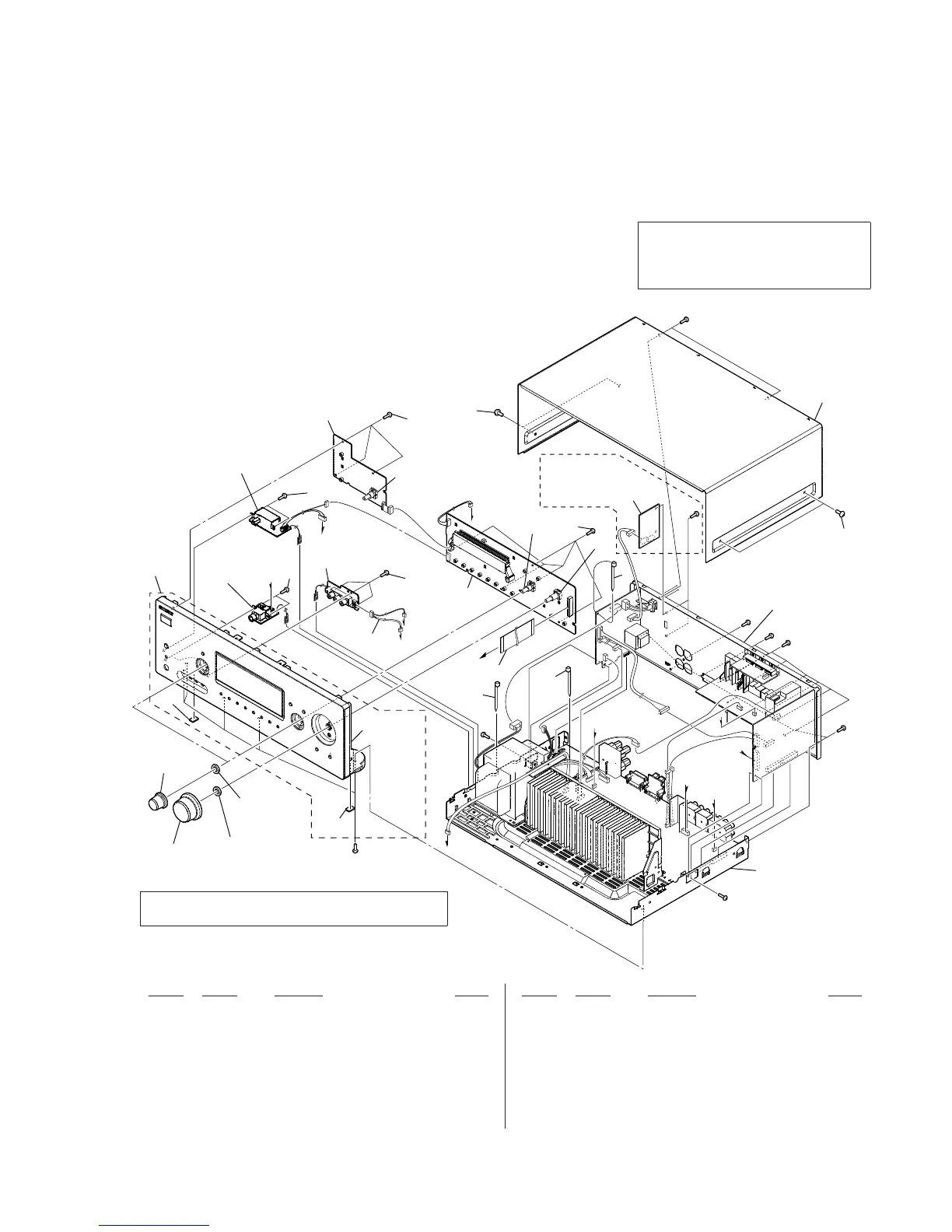

7-1. FRONT PANEL SECTION
#
"
$
%
"
&
'
'
#
%
&
$
#1
#1
#1
#1
#1
#1
#1
#1
#1
3
2
1
4
4
5
5
5
5
6
8
5
7
8
9
supplied with
RV101, RV103
supplied with
RV102
not supplied
10
not
supplied
not supplied
(HEADPHONE
board)
not supplied
(VIDEO 2 board)
not supplied
(DCAC board)
not supplied
(POWER board)
not supplied
(AC SELECT board)
(E51)
RV101
RV103
RV102
back panel section
main section
7
7
• Abbreviation
AR : Argentina model
E51 : Chilean and Peruvian models
MX : Mexican model
MY : Malaysia model
SP : Singapore model
TH : Thai model
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Ver. 1.1
