Sony STR-KM5000 - REAR PANEL CONNECTIONS; Digital, Antenna, Component Video, and Speaker Connections; Audio, Video, DMPORT, and Other Connections

STR-KM5000
6

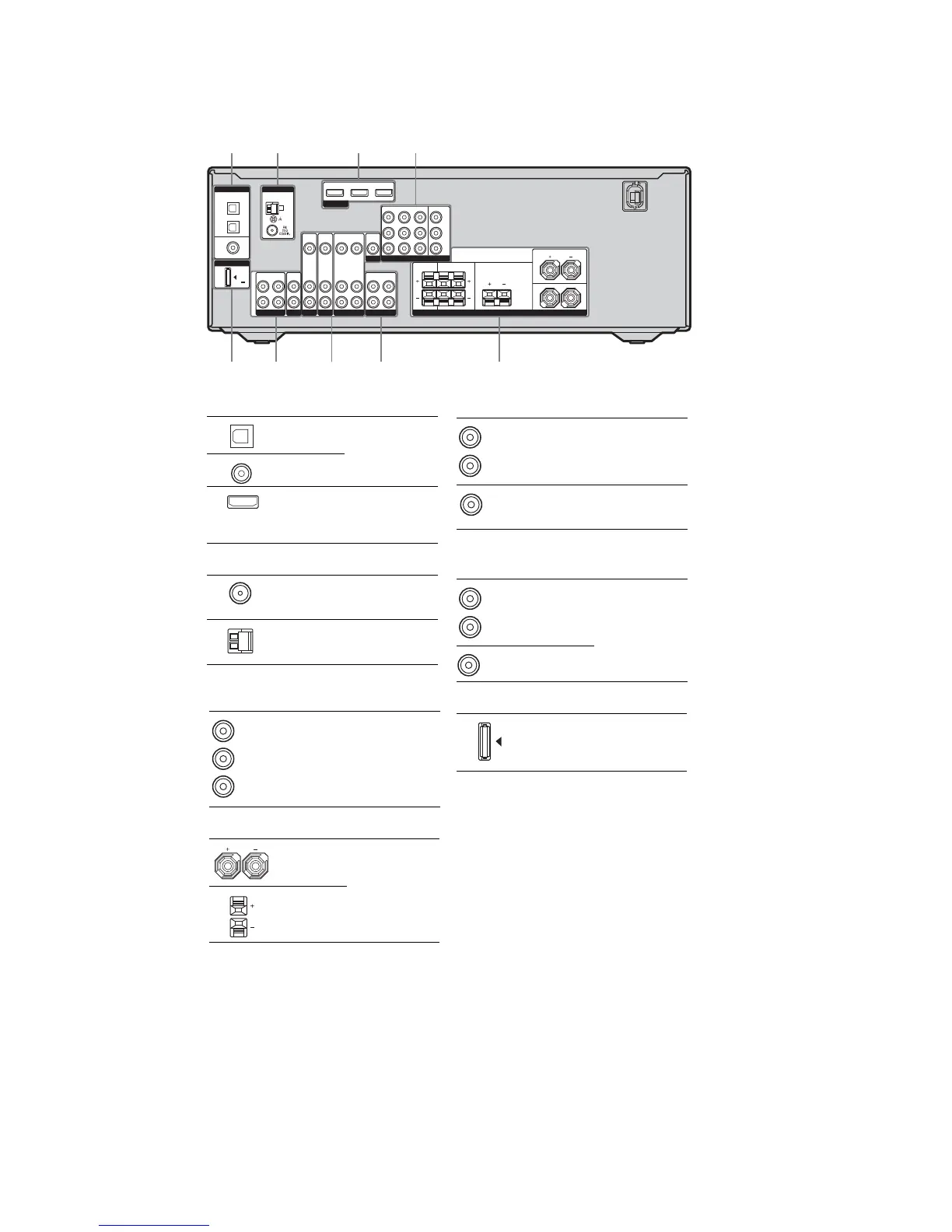

Rear panel
  
 
DVD IN BD IN OUT
OPTICAL
COAXIAL
BD
IN
SAT
IN
DVD
IN
HDMI
VIDEO
OUT
SAT IN
DVD IN BD IN MONITOR OUT
VIDEO
IN
AUDIO
OUT
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
AUDIO
IN
AUDIO
OUT
SUBWOOFER
Y
P
B
/
C
B
P R
/
C
R
SURROUND
FRONT: ONLY FOR SS-MSP5000
CENTER: ONLY FOR SS-CNP5000
SURROUND: ONLY FOR SS-SRP5000
SURROUND
BACK
CENTER
LR
FRONT
L
R
SPEAKERS
DMPORT
DIGITAL
AM
ANTENNA
L
R
L
R
SA-CD
/
CD
/
CD-R
ININOUT
TV SAT DVD VIDEO 1
VIDEO
OUT
MONITOR
COMPONENT VIDEO
DC5V
0.7A MAX
" DIGITAL INPUT/OUTPUT section
OPTICAL
IN jacks
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
sound quality.
COAXIAL IN
jack
HDMI IN/
OUT* jacks
Connects to a DVD
player, etc. The
image and the sound
are output to a TV.
# ANTENNA section
FM
ANTENNA
jack
Connects to the
supplied FM wire
antenna.
AM
ANTENNA
terminals
Connects to the
supplied AM loop
antenna.
$ COMPONENT VIDEO INPUT/
OUTPUT section
Y, PB/CB, 
P
R/CR IN/
OUT* jacks
Connects to a DVD
player, TV, satellite
tuner, etc. You can
enjoy high quality
image.
% SPEAKERS section
Connects to the
supplied speakers .
Green
(Y)
Blue 
(P
B/CB)
Red 
(P
R/CR)
*You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV.
& AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connects to a Super
Audio CD player,
etc.
AUDIO OUT
jacks
Connects to the
supplied
subwoofers.
' VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to a VCR,
DVD player, etc.
VIDEO IN/
OUT* jacks
( DMPORT
DMPORT
jack
Connects to a
DIGITAL MEDIA
PORT adapter.
White (L)
Red (R)
Black
White (L)
Red (R)
Yellow
