Sony STR-KM5000 - Main Section

55
STR-KM5000
101 4-249-675-01 +BV SUMITITE S 4X6 ROUND
102 3-077-331-21 +BV3 (3-CR)
103 3-905-609-01 SCREW (TRANSISTOR)
104 A-1438-326-A MAIN BOARD, COMPLETE (SP, MY, MX, AR, TH)
104 A-1438-327-A MAIN BOARD, COMPLETE (E51)
105 4-977-358-01 CUSHION
106 9-913-401-64 SHEET, MICA
0 F4001 1-532-465-33 FUSE (T3.15AL/250V)
0 F4002 1-532-465-33 FUSE (T3.15AL/250V)
Q603 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q604 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q653 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q654 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q703 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q704 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q753 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q754 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q803 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q804 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q853 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q854 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 T901 1-443-523-11 POWER TRANSFORMER (MX)
0 T901 1-443-525-11 POWER TRANSFORMER (SP, MY, AR, TH)
0 T901 1-443-526-11 POWER TRANSFORMER (E51)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

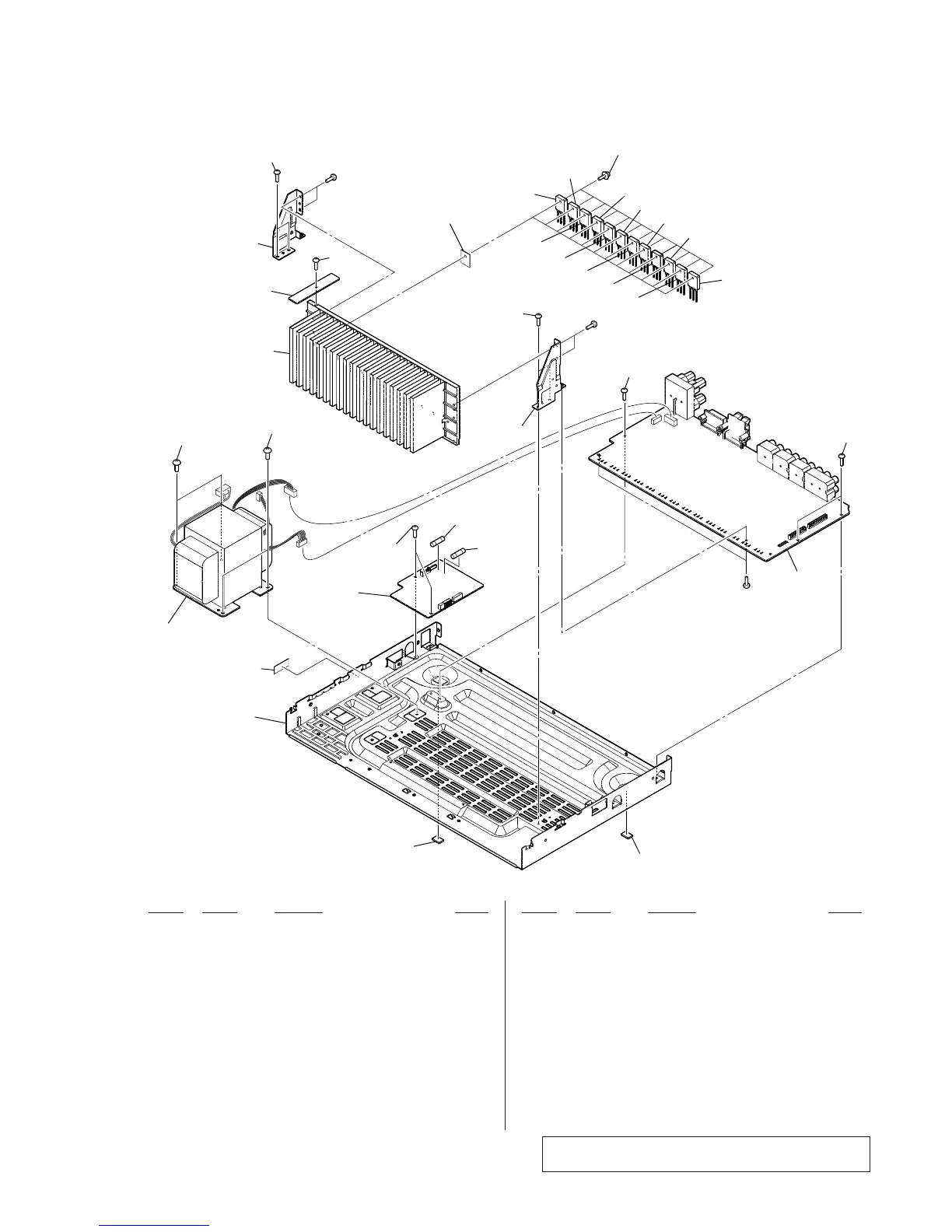

7-3. MAIN SECTION
101
101
102
105
105
104
102
102
102
103
102
102
#1
#1
#1
T901
not supplied
not supplied
not supplied
(DCDC
CONVERTER board)
not supplied
(WIRE ROUTE board)
F4001
F4002
not supplied
not supplied
not supplied
Q703
Q603
Q704
Q604
Q853
Q854
Q803
Q804
Q754
Q753
Q654
Q653
106
Ver. 1.3
Note: TRANSISTOR (MN2488-OPY-MK/MP1620-OPY-MK)
include MICA SHEET.
