STR-KM5000
9

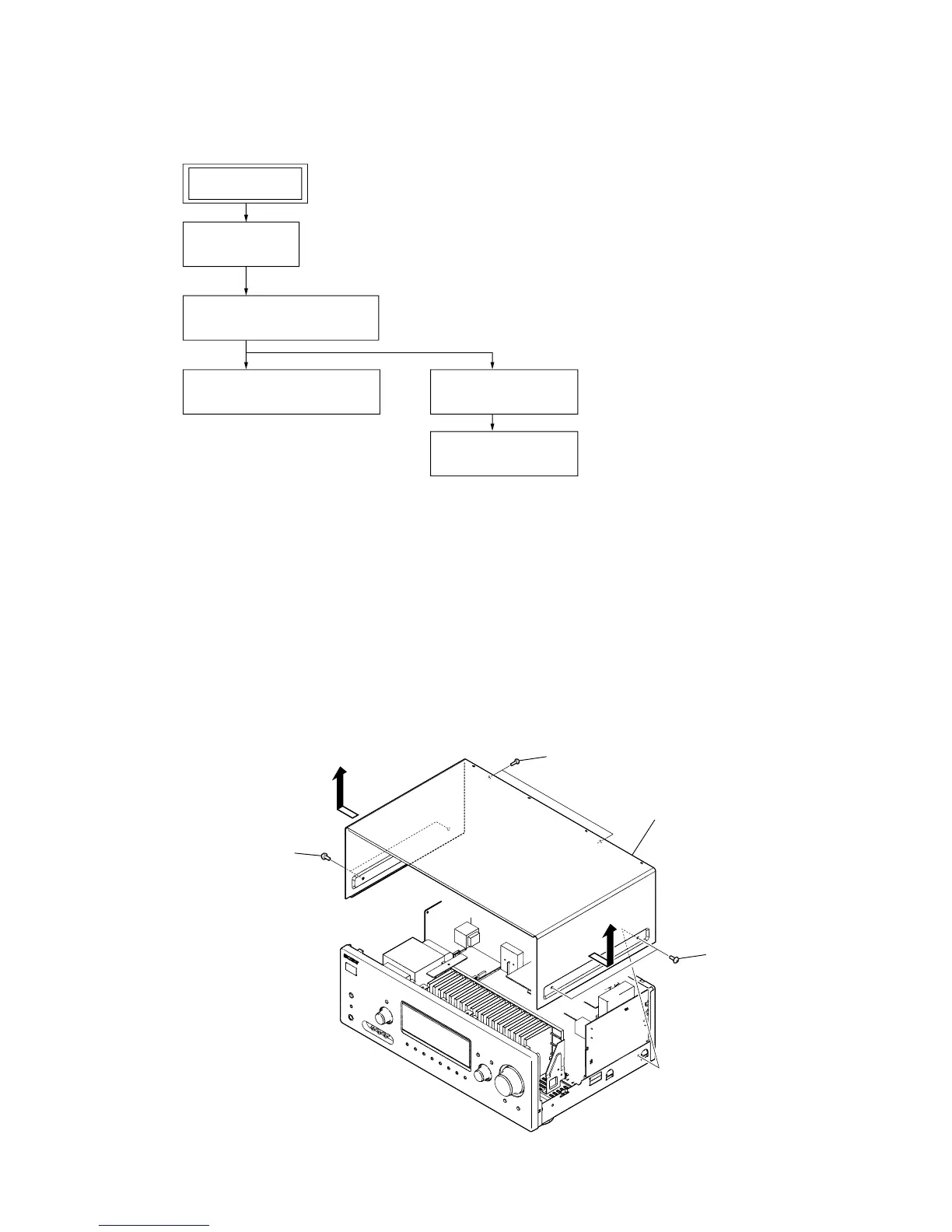

SECTION 3
DISASSEMBLY
This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
3-2. CASE
(Page 9)
3-3. BACK PANEL BLOCK
(Page 10)
3-4. FRONT PANEL BLOCK
(Page 10)
3-5. MAIN BLOCK
(Page 11)
3-6. MAIN BOARD
(Page 11)
SET
two screws
(BVTP3
×
8)
case
two screws
(BVST4
×
8)
two screws
(BVST4
×
8)
