Sony STR-NX3 Service Manual

2727
HTC-NX1

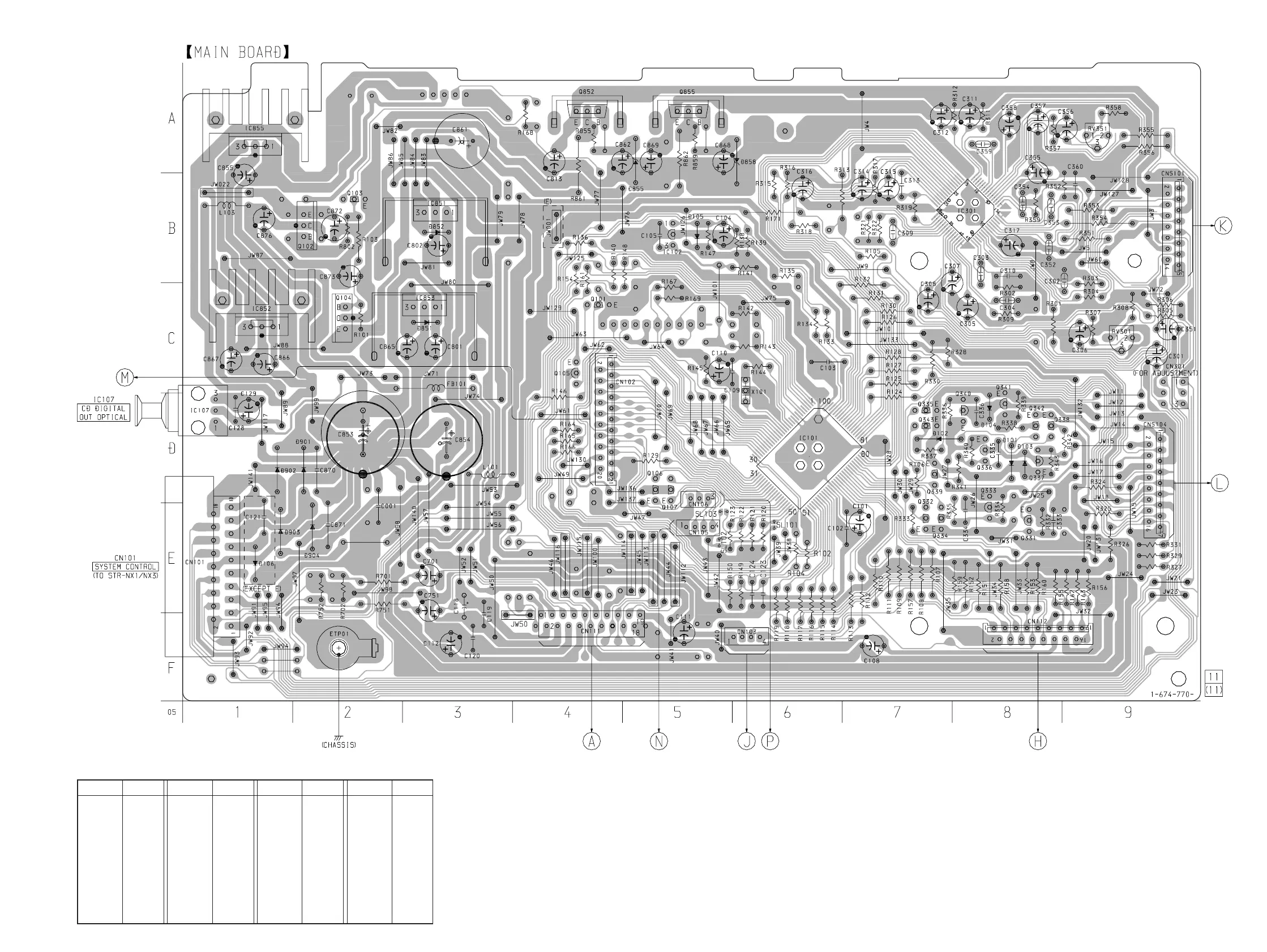

7-10. PRINTED WIRING BOARD – MAIN Board – • See page 19 for Circuit Boards Location.
D903 E-1
D904 E-2
IC101 D-6
IC102 B-5
IC107 D-1
IC301 B-8
IC851 B-3
IC852 C-1
IC853 C-3
IC855 A-1
Ref. No. LocationRef. No. Location
D101 D-8
D102 D-7
D103 D-8
D104 D-8
D105 B-5
D106 E-1
D851 C-3
D852 B-3
D855 A-5
D858 A-6
D901 D-2
D902 D-1
• Semiconductor Location
Q101 C-4
Q102 B-2
Q103 B-2
Q104 C-2
Q105 C-4
Q106 D-5
Q107 D-5
Q331 E-8
Q332 E-7
Q333 E-8
Q334 E-7
Q335 D-7
Q336 D-8
Q337 D-8
Q338 D-8
Q339 D-7
Q340 D-8
Q341 D-8
Q342 D-8
Q343 D-7
Q852 A-4
Q855 A-5
Ref. No. Location Ref. No. Location
(Page 30)
(Page 20) (Page 30) (Page 22)
(Page 30)
(Page 22)
(Page 26)
(Page 24)
