Sony STR-NX3 Service Manual

2929
HTC-NX1

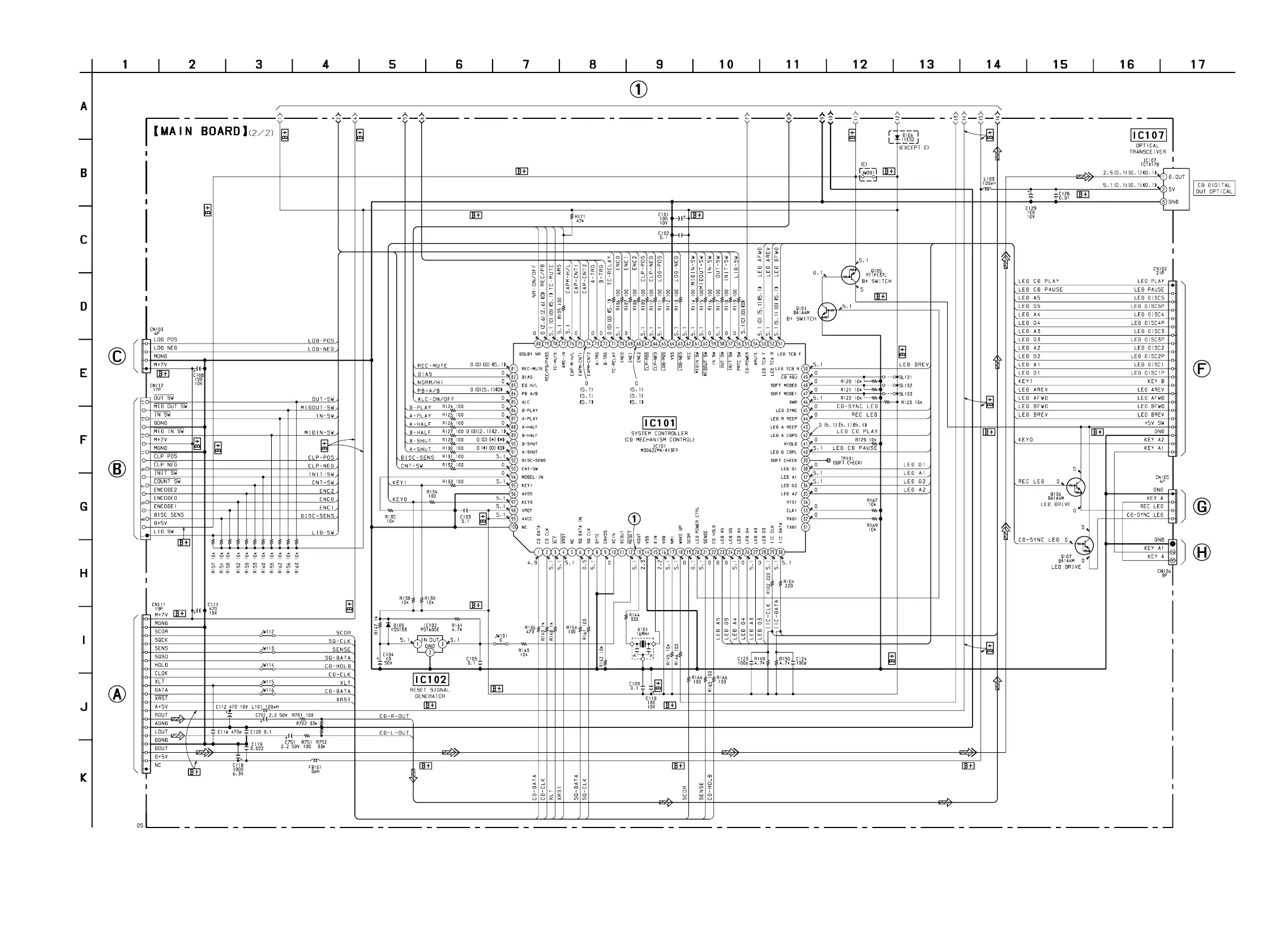

7-12. SCHEMATIC DIAGRAM – MAIN Board (2/2) – • See page 32 for Waveform.
[ ] : TAPE PLAYBACK (DECK B)
〈〈 〉〉 : RECORD
∗
: Impossible to measure
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD PLAY
( ) : TAPE PLAYBACK (DECK A)
(Page 23)
(Page 23)
(Page 21)
(Page 28)
(Page 31)
(Page 31)
(Page 31)
