CDM53D-K1BD33
Front panel
section
#8
#1
#1
#1
#1
#1
not
supplied
#7
1
2
3
4
8
6
7
9
5
3
• Abbreviation
AUS : Australian model
CND : Canadian model
JE : Tourist model
KR : Korean model
(1) CASE, CHASSIS SECTION
SECTION 8

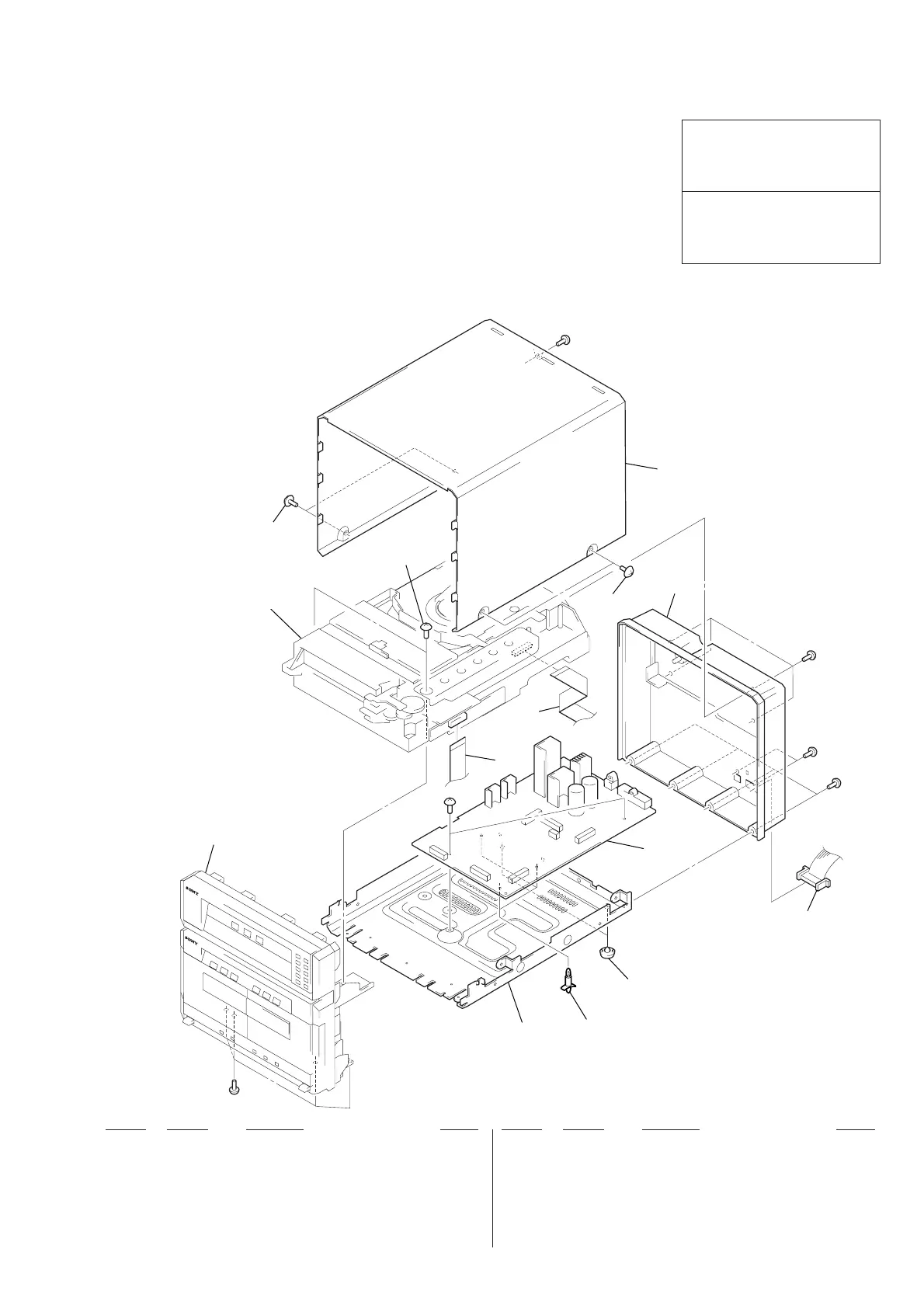

EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 1-773-040-11 WIRE (FLAT TYPE) (17 CORE) (12cm)
2 1-791-433-11 WIRE (FLAT TYPE) (19 CORE)
3 3-363-099-11 SCREW (CASE 3 TP2)
4 4-221-455-01 PANEL, BACK (EXCEPT US)
4 4-221-455-11 PANEL, BACK (US)
5 1-791-075-11 CORD, CONNECTION
6 A-4426-608-A MAIN BOARD, COMPLETE (US, CND, AEP, UK)
6 A-4426-609-A MAIN BOARD, COMPLETE
(MY, SP, KR, AUS, JE)
6 A-4426-945-A MAIN BOARD, COMPLETE (TH)
7 4-965-822-01 FOOT
8 4-221-365-31 CASE
* 9 4-924-098-51 HOLDER, PC BOARD
MY : Malaysia model
SP : Singapore model
TH : Thai model
To Next Page
