Sony STR-NX3 Service Manual

38
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

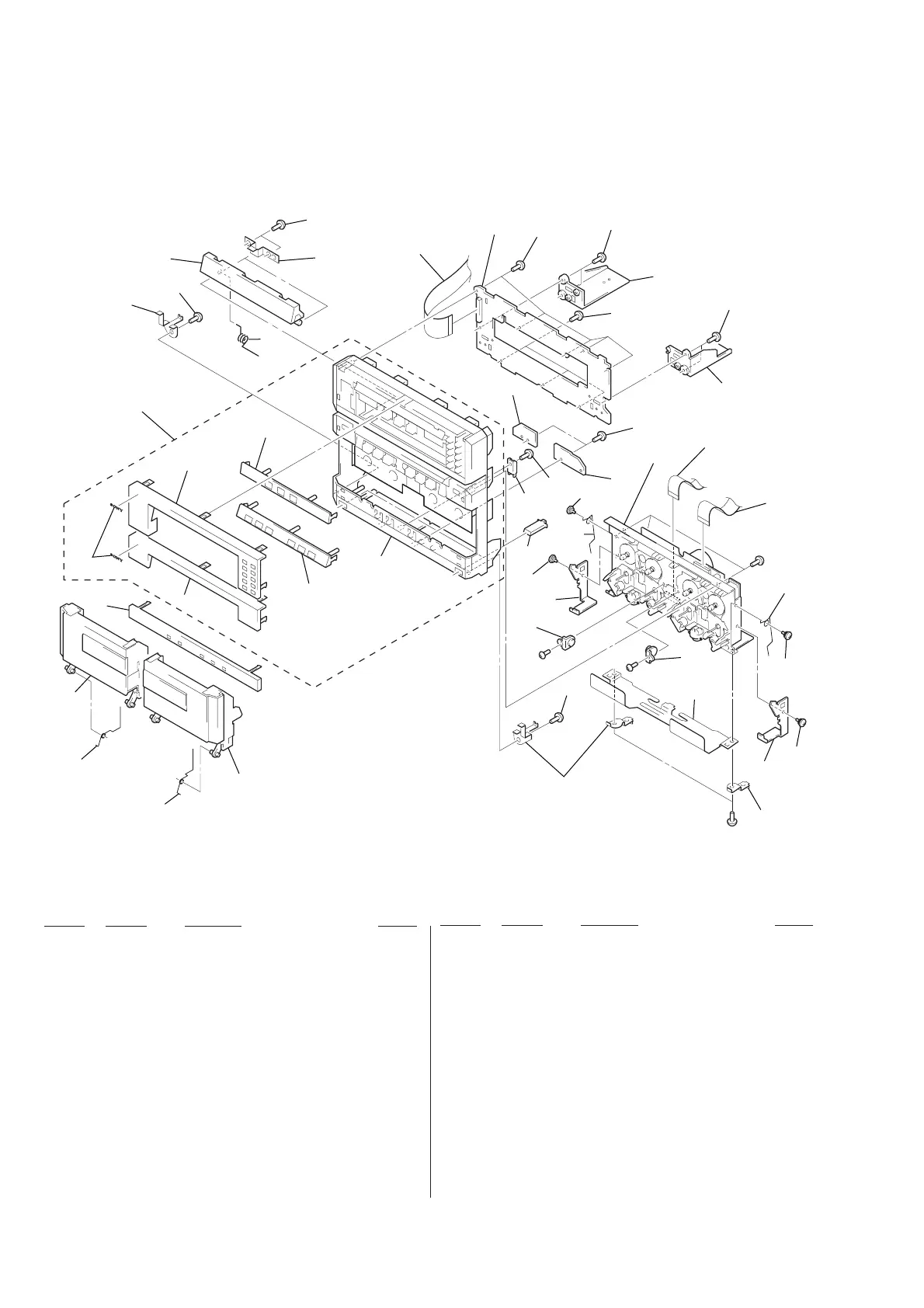

(2) FRONT PANEL SECTION
51
52
53
54
55
57
60
58
59
63
77
63
76
61
62
63
78
63
65
63
64
69
73
73
72
70
70
71
68
67
74
63
70
70
75
66
78
63
not
supplied
not
supplied
not
supplied
TCM-230AWR2
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
#2
#2
#1
#9
not
supplied
56
51 X-4951-821-1 HOLDER (B) ASSY, CASSETTE
52 4-221-448-01 SPRING (HOLDER B)
53 4-221-447-01 SPRING (HOLDER A)
54 X-4951-820-1 HOLDER (A) ASSY, CASSETTE
55 4-221-434-01 PANEL (TC2), SUB
56 X-4951-818-1 PANEL ASSY, FRONT
57 4-221-433-01 PANEL (TC1), SUB
58 4-221-432-01 PANEL (CD), SUB
59 4-221-430-01 COVER (CD)
60 4-221-431-01 COVER (TC)
61 1-773-170-11 WIRE (FLAT TYPE) (21 CORE)
62 A-4426-223-A PANEL BOARD, COMPLETE (EXCEPT TH)
62 A-4426-942-A PANEL BOARD, COMPLETE (TH)
63 4-951-620-01 SCREW (2.6X8), +BVTP
64 1-674-772-11 PANEL TC-A BOARD
65 1-674-773-11 PANEL TC-B BOARD
66 4-221-443-01 BUTTON, EJECT
67 1-773-004-11 WIRE (FLAT TYPE) (15 CORE)
68 1-773-044-11 WIRE (FLAT TYPE) (17 CORE) (16cm)
69 4-221-444-01 PLATE
70 4-223-952-01 SCREW, STEP
71 4-221-450-01 SPRING (EJECT B)
72 4-221-446-01 LEVER (B), EJECT
73 4-215-062-01 DAMPER
74 4-221-445-01 LEVER (A), EJECT
75 4-221-449-01 SPRING (EJECT A)
76 4-221-451-01 SPRING (CD)
77 4-221-442-01 LID, CD
78 4-951-620-11 SCREW (2.6 X 10), +BVTP
