39

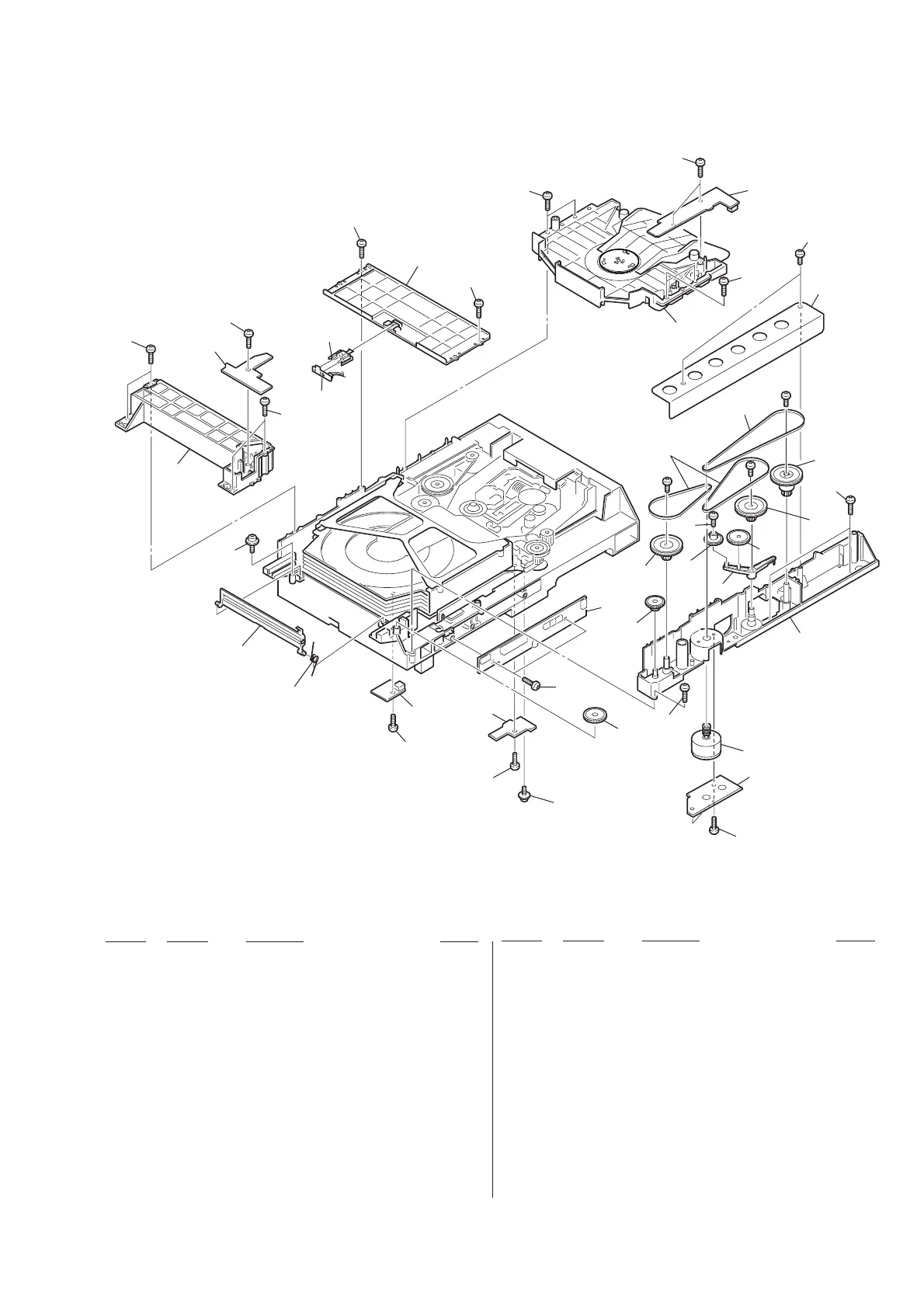

(3) CD MECHANISM DECK SECTION-1
(CDM53D-K1BD33)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151
151
151
151
165
164
151
176
153
151
175
151
151
156
157
158
155
154
159
151
161
162
160
151
151
151
177
169
167
151
166
151
171
172
170
173
168
151
171
170
174
151
152
M702
#3
#3
#3
151 4-218-253-01 SCREW (M2.6), +BVTP
* 152 1-671-508-21 LOAD MOTOR BOARD
153 4-220-261-01 GEAR (EJECT)
* 154 1-671-502-21 INT/COUNT SW BOARD
* 155 1-671-504-21 SENSOR BOARD
156 4-212-676-03 SPRING (LID), TORSION
157 4-220-285-01 LID (DISC)
158 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
159 A-4672-622-F BASE (GUIDE) ASSY, FITTING
* 160 1-671-503-21 OUT SW BOARD
* 161 1-671-789-21 SENSOR 2 BOARD
162 4-220-274-01 HOLDER (SENSOR)
* 164 1-671-505-21 IN SW BOARD
165 A-4680-437-A MAGNET ASSY
166 4-214-129-01 COVER
167 4-211-235-01 BELT (COMMUNICATION)
168 4-211-236-01 BELT (LOADING)
169 4-220-278-01 PULLEY (MODE)
170 4-220-276-01 PULLEY (LD)
171 4-220-267-01 GEAR (LD DECELERATION)
172 4-220-272-01 LEVER (GOOSENECK)
173 4-220-271-01 GEAR (TRAY)
* 174 1-671-506-21 CONNECTOR BOARD
175 3-341-549-21 SCREW (2.6X12) (DIA. 7.5), +PTP WH
176 4-213-488-04 CHASSIS (MOLD B)
177 4-213-579-01 BRACKET (CHASSIS)
M702 X-4950-342-1 MOTOR (LOADING) ASSY
To Next Page
