Sony TA-FA30ES - Printed Wiring Boards - MAIN Section

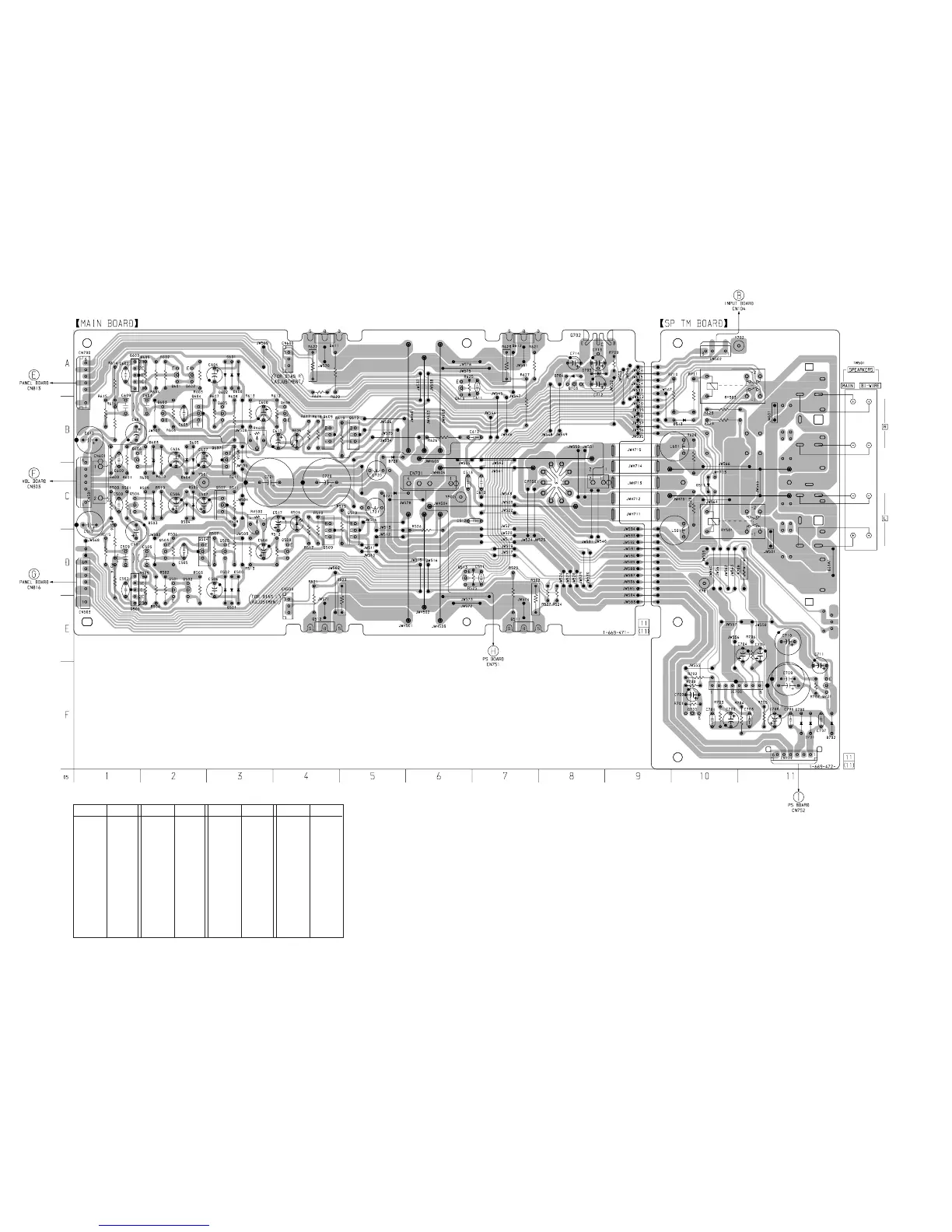

4-4. PRINTED WIRING BOARDS – MAIN Section – • See page 7 for Circuit Boards Location.
TA-FA30ES
– 13 –
– 14 –
Ref. No. LocationRef. No. Location
D500 D-3
D501 D-3
D502 D-3
D503 C-2
D504 C-2
D505 C-2
D506 C-4
D511 C-10
D513 B-10
D600 A-3
D601 A-3
D602 A-3
D603 B-2
D604 B-2
D605 B-2
• Semiconductor Location
D606 B-4
D700 F-11
D701 F-11
D702 F-11
D703 A-8
D704 A-8
D720 B-5
D721 C-5
IC700 F-10
Q500 D-1
Q501 D-2
Q502 D-2
Q503 D-2
Q504 D-2
Q505 D-3
Q506 C-1
Q507 C-3
Q508 D-4
Q509 D-4
Q510 C-5
Q511 E-7
Q512 E-4
Q513 D-6
Q600 A-1
Q601 A-2
Q602 A-2
Q603 B-2
Q604 B-2
Ref. No. Location
Ref. No. Location
Q605 B-3
Q606 B-1
Q607 B-3
Q608 B-4
Q609 B-4
Q610 B-5
Q611 A-4
Q612 A-7
Q613 A-6
Q700 F-10
Q701 F-11
Q702 A-8
Q703 A-8
(Page 18)
(Page 17)
(Page 18)
(Page 22)
(Page 22)
(Page 9)
