Sony TA-FA30ES - Schematic Diagram - POWER Section

– 23 –
– 24 –

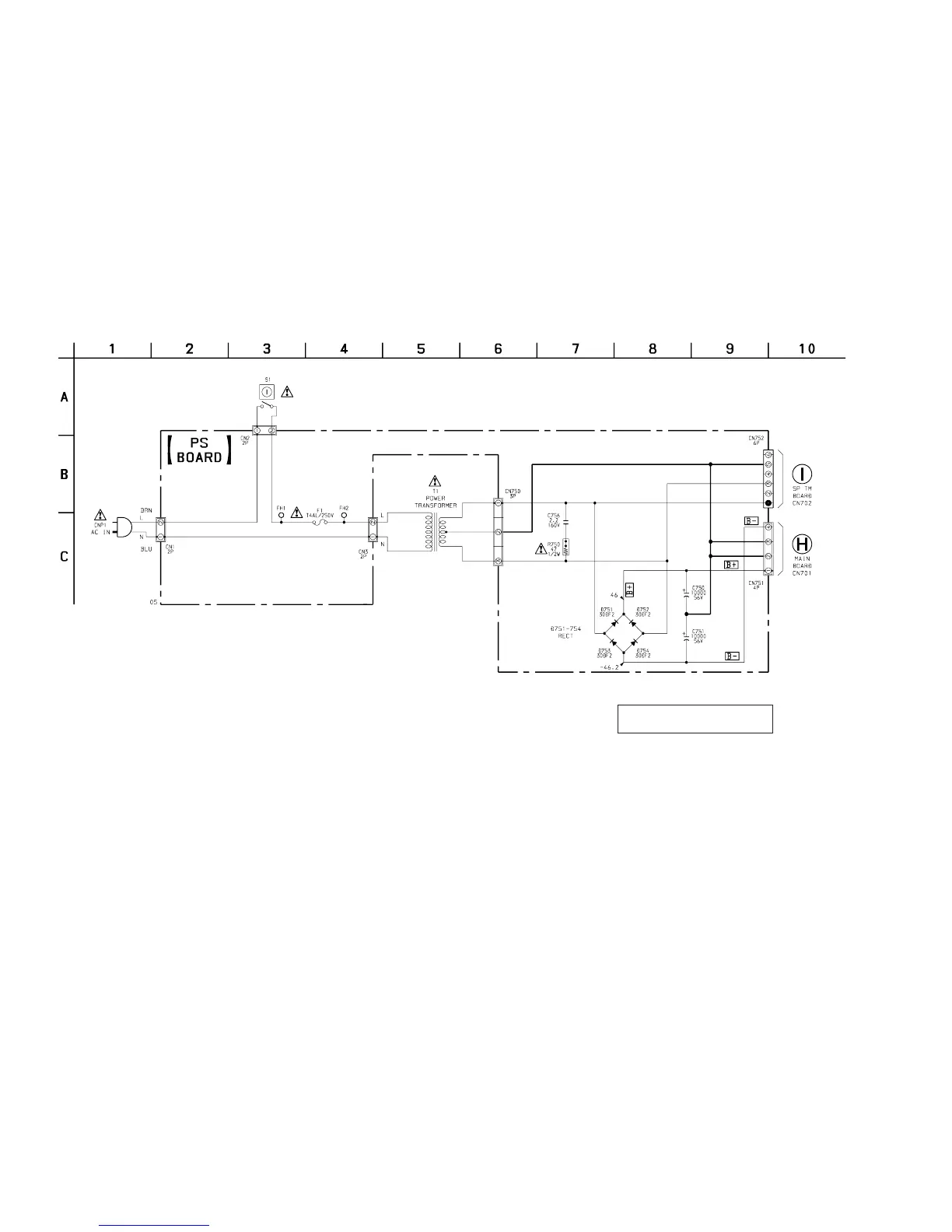

4-9. SCHEMATIC DIAGRAM – POWER Section –
TA-FA30ES
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(Page 16)
(Page 15)
