Sony TA-FA30ES - Printed Wiring Boards - PANEL Section

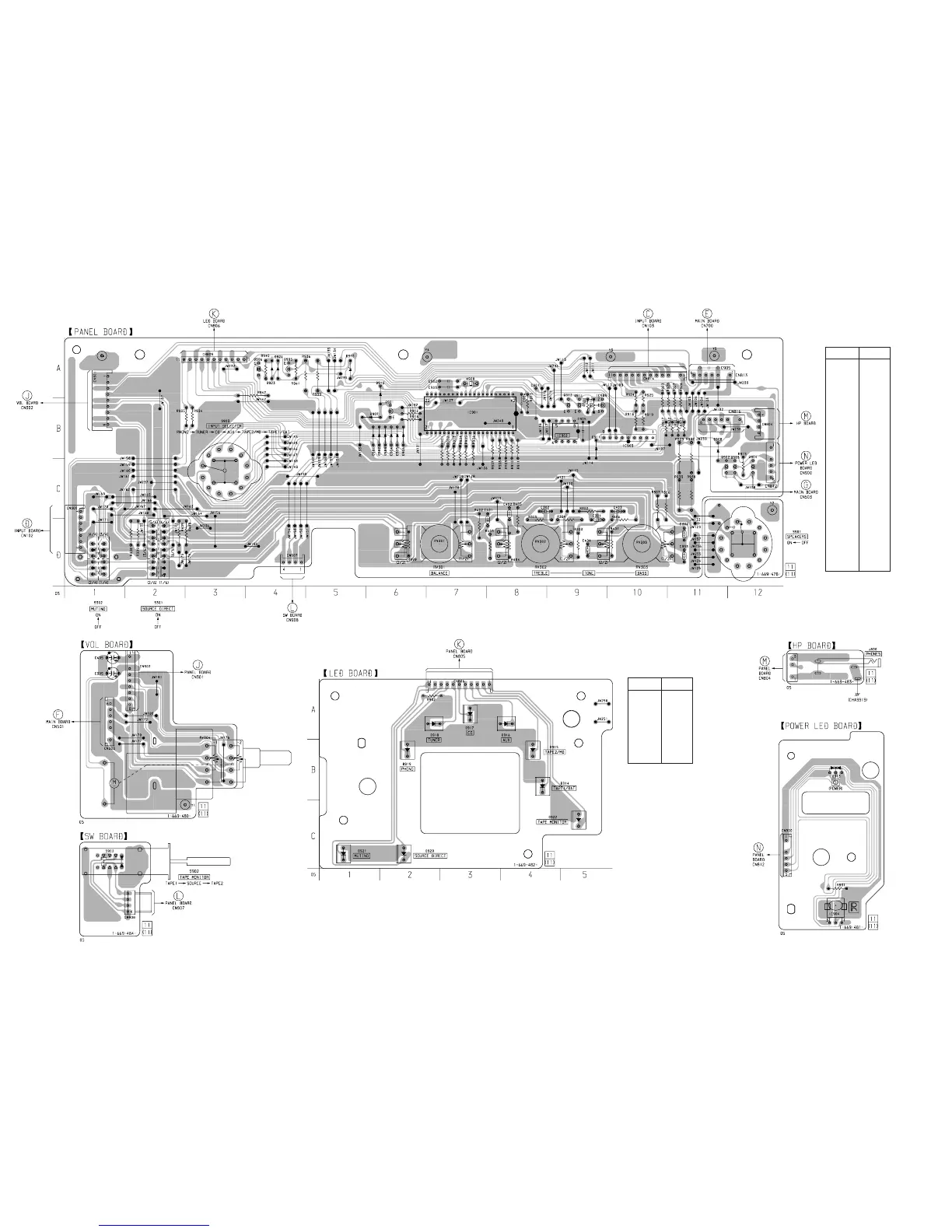

4-6. PRINTED WIRING BOARDS – PANEL Section – • See page 7 for Circuit Boards Location.
TA-FA30ES
– 17 –
– 18 –
Ref. No. Location
D914 B-4
D915 B-4
D916 A-4
D917 A-3
D918 A-2
D919 B-2
D920 C-2
D921 C-1
D922 C-5
• Semiconductor Location
– LED Board –
Ref. No. Location
D901 B-6
D902 B-6
D903 B-6
D904 B-6
D905 B-6
D906 B-6
D907 B-6
D908 B-11
D910 A-5
D911 B-9
D912 A-6
D923 A-4
D924 A-4
IC901 B-7
IC902 B-9
IC903 B-10
IC905 B-9
Q901 B-6
Q902 C-12
Q903 C-12
Q904 C-12
Q905 A-4
Q906 A-4
Q911 B-9
Q912 B-9
• Semiconductor
Location
– PANEL Board –
(Page 13)
(Page 10)
(Page 10)
(Page 13)
(Page 13)
