– 27 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

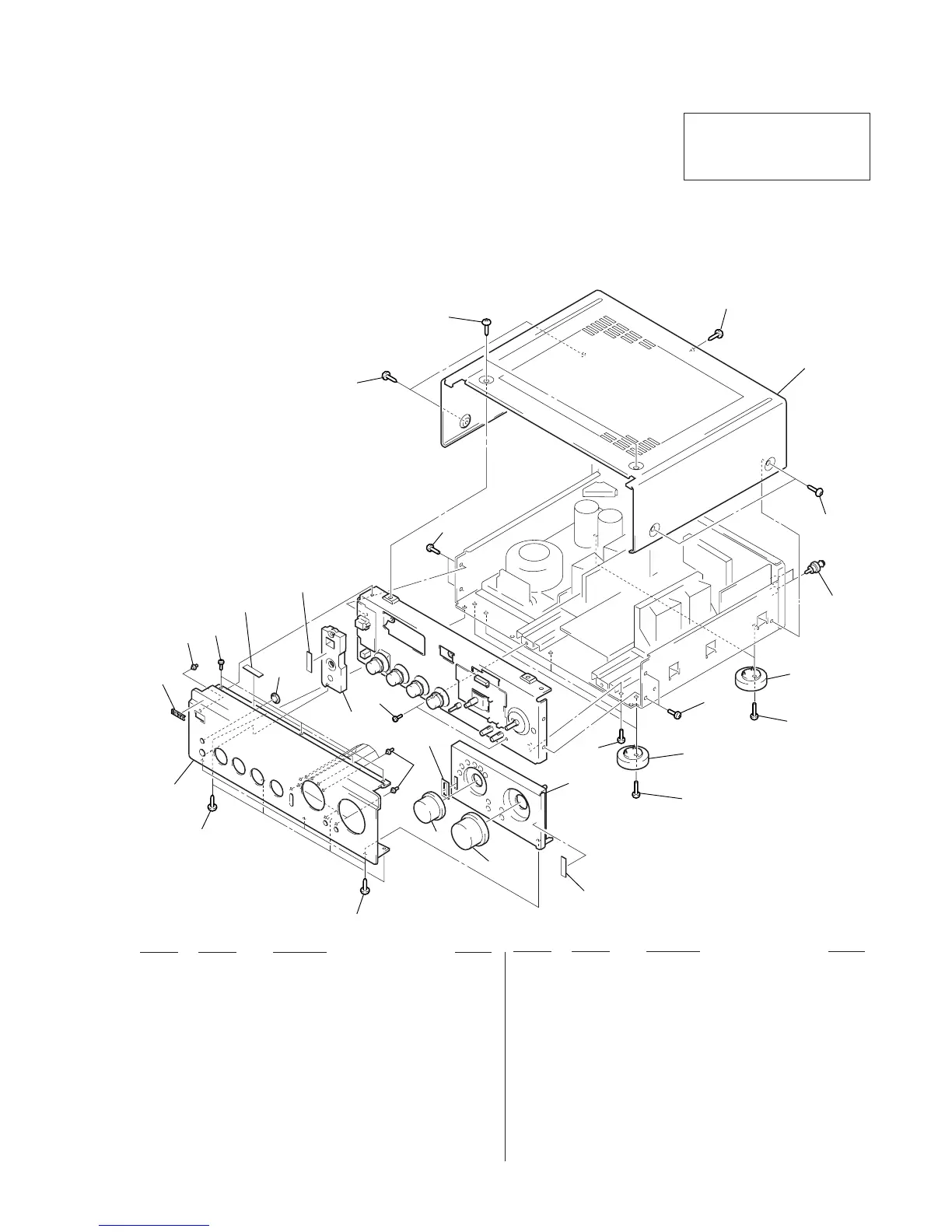

(1) CASE, FRONT PANEL SECTION-1
SECTION 5
EXPLODED VIEWS
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
1 4-967-961-01 SCREW (3X8)
2 4-999-428-01 PANEL, FRONT (BLACK)
2 4-999-428-11 PANEL, FRONT (GOLD)
3 4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
3 4-942-568-51 EMBLEM (NO.5), SONY (GOLD)
* 4 X-4950-462-1 LENS ASSY, LED
5 4-975-105-01 WINDOW, RAY CATCHER (BLACK)
5 4-975-105-31 WINDOW, RAY CATCHER (GOLD)
6 4-999-429-01 BASE (L), PANEL (BLACK)
6 4-999-429-11 BASE (L), PANEL (GOLD)
7 4-999-433-01 KNOB (SEL) (BLACK)
7 4-999-433-11 KNOB (SEL) (GOLD)
8 4-999-432-01 KNOB (VOL) (BLACK)
8 4-999-432-11 KNOB (VOL) (GOLD)
9 4-999-430-01 BASE (R), PANEL (BLACK)
9 4-999-430-11 BASE (R), PANEL (GOLD)
10 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)
10 4-210-291-11 SCREW (CASE 3 TP2) (GOLD)
* 11 4-999-439-01 CASE (413235) (BLACK)
* 11 4-999-439-21 CASE (413235) (GOLD)
12 1-506-113-00 SHORT PLUG
13 X-4949-759-1 FOOT ASSY
14 7-685-885-09 SCREW +BVTT 4X16 (S)
10
10
1
10
11
10
12
13
14
1
13
14
1
1
2
3
4
1
5
6
4
not
supplied
9
8
7
1
not supplied
not supplied
1
not supplied
