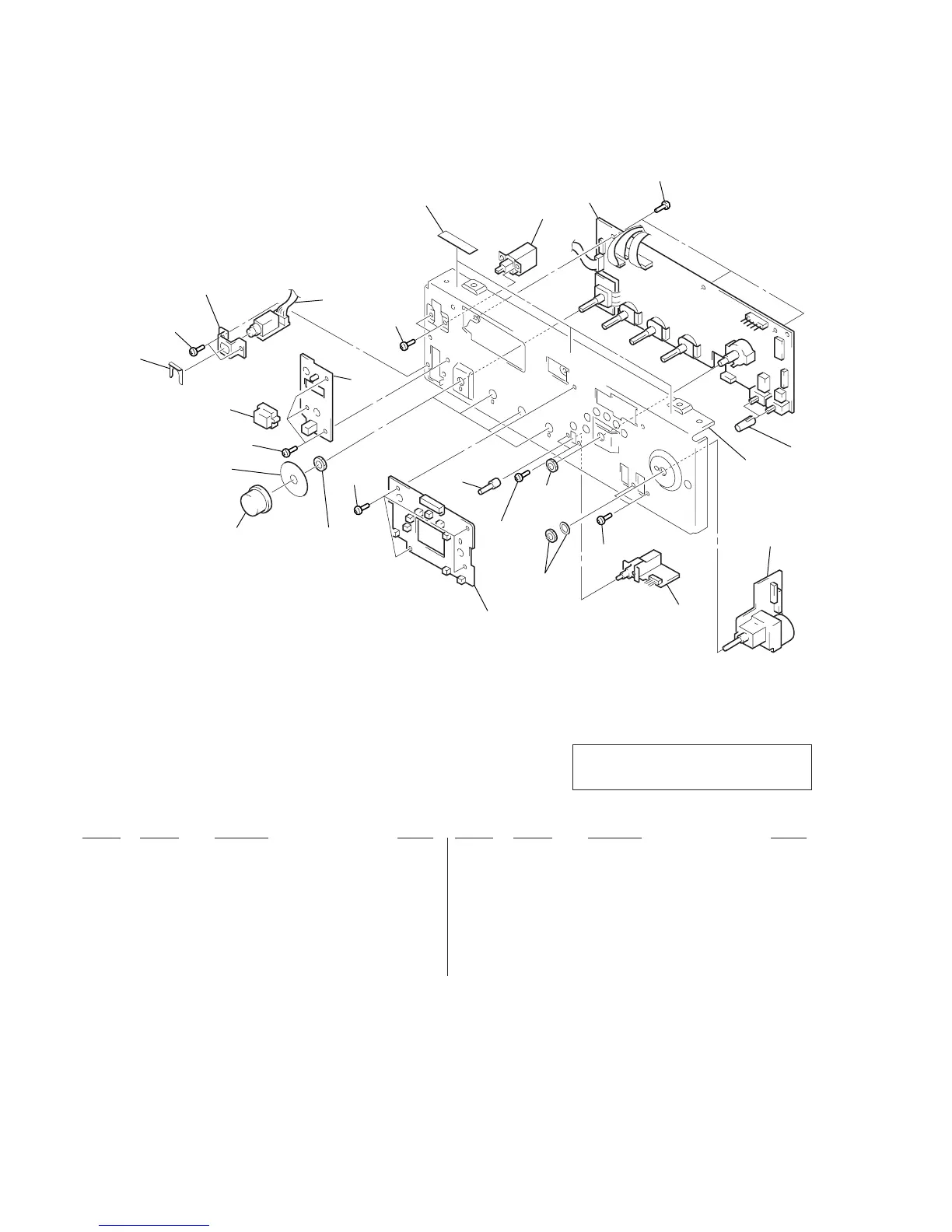

(2) FRONT PANEL SECTION-2
51 4-967-961-01 SCREW (3X8)
* 52 1-669-483-11 HP BOARD
53 3-024-055-01 BUTTON (POWER) (U) (BLACK)
53 3-024-055-11 BUTTON (POWER) (U) (GOLD)
* 54 1-669-481-11 POWER LED BOARD
55 X-4949-758-1 KNOB (BAL) ASSY (BLACK)
55 X-4949-761-1 KNOB (BAL) ASSY (GOLD)
56 7-685-751-09 SCREW +PTT 3X6 (S)
* 57 A-4407-634-A PANEL BOARD, COMPLETE
58 4-970-146-01 BUTTON (BLCAK)
58 4-970-146-21 BUTTON (GOLD)
* 59 1-669-480-11 VOL BOARD
* 60 1-669-484-11 SW BOARD
61 4-976-796-01 KNOB (A), LEVER
* 62 1-669-482-11 LED BOARD
! S1 1-554-920-11 SWITCH, PUSH (AC POWER) (1KEY)
not
supplied
not
supplied
not
supplied
supplied
with J800
supplied
with S903
supplied
with RV304
Supplied with
S901, RV303,
RV302, RV301
55
51
51
53
51
52
56
S1
57
51
58
59
60
56
62
56
61
54
not supplied
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
To Next Page
