Sony TA-FA30ES - Page 19

– 29 –

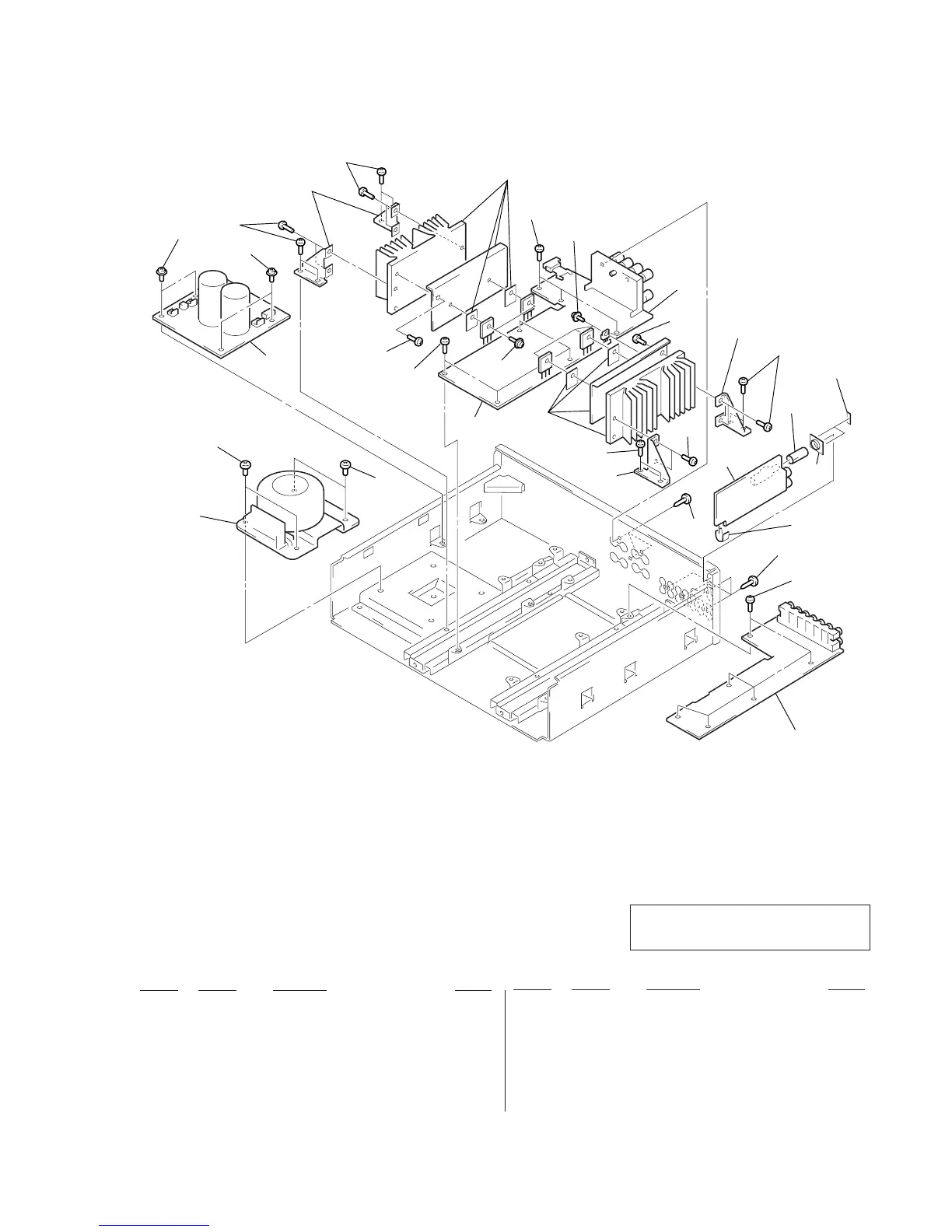

(3) CHASSIS SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-967-960-01 SCREW (4X8)
* 102 1-669-473-11 PS BOARD
103 4-967-961-01 SCREW (3X8)
104 4-211-985-01 SCREW (3X8), PC BOARD FITTING
* 105 A-4407-669-A MAIN BOARD, COMPLETE
106 3-905-609-21 SCREW (TRANSISTOR)
* 107 A-4407-670-A SP TM BOARD, COMPLETE
108 4-970-145-01 ESCUTCHEON (P)
109 4-970-146-01 BUTTON (BLCAK)
* 110 A-4407-672-A PHONO BOARD, COMPLETE
111 3-704-515-41 SCREW (BV/RING)
* 112 A-4407-635-A INPUT BOARD, COMPLETE
! T1 1-431-827-11 TRANSFORMER, POWER
112
103
111
111
110
109
108
103
103
103
103
107
105
106
103
106
103
103
103
103
104
102
101
101
T1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
104
not
supplie
d
not
supplied
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
