– 5 –

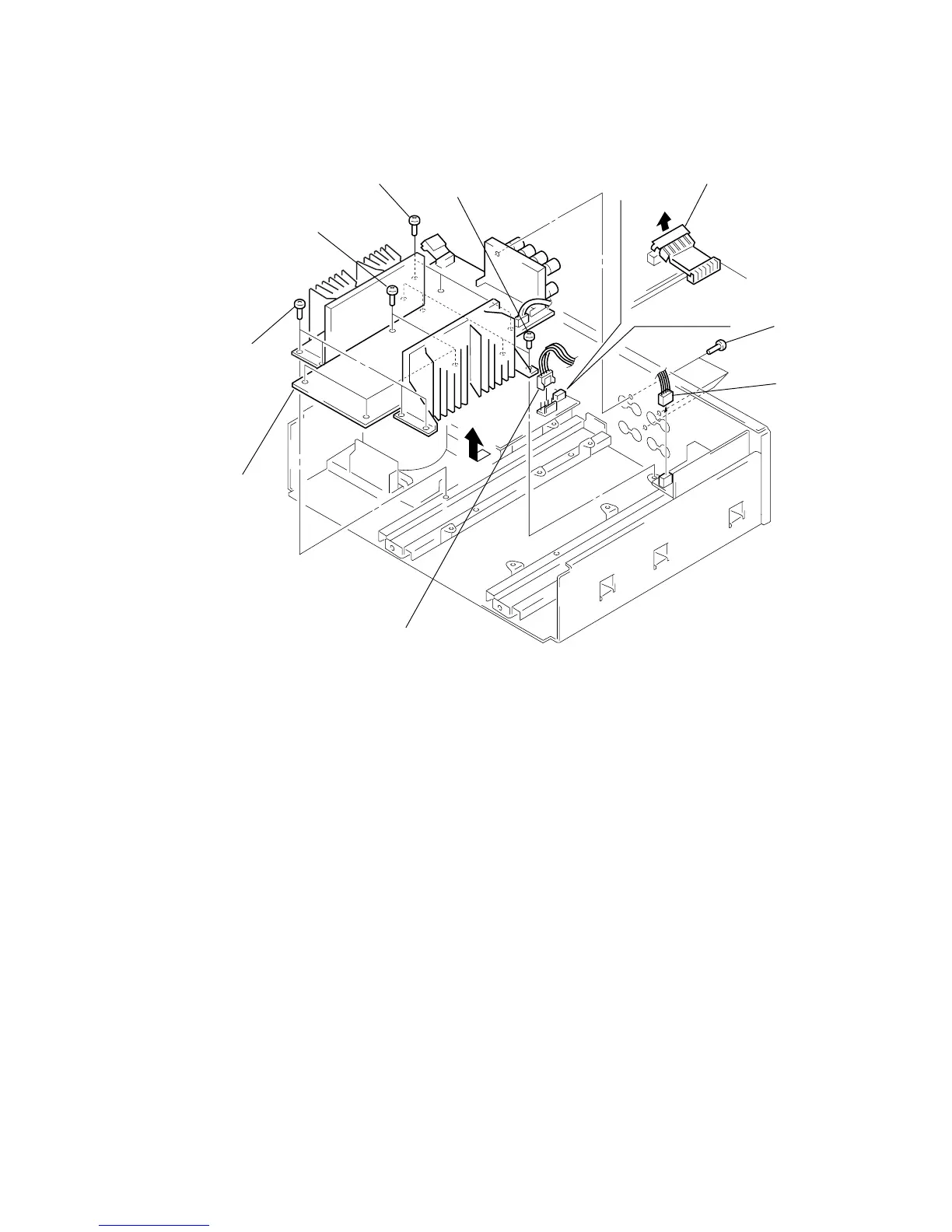

MAIN BOARD
2 connector
(CN752)
3 connector
(CN104)
1 connector
(CN751)
4 three screw
s
(BV/RING)
5 four screws
(3 × 8)
7 main board
6 four screws
(3 × 8)
5 four screws
(3 × 8)
5 three screws
(3 × 8)
