BVM-A14

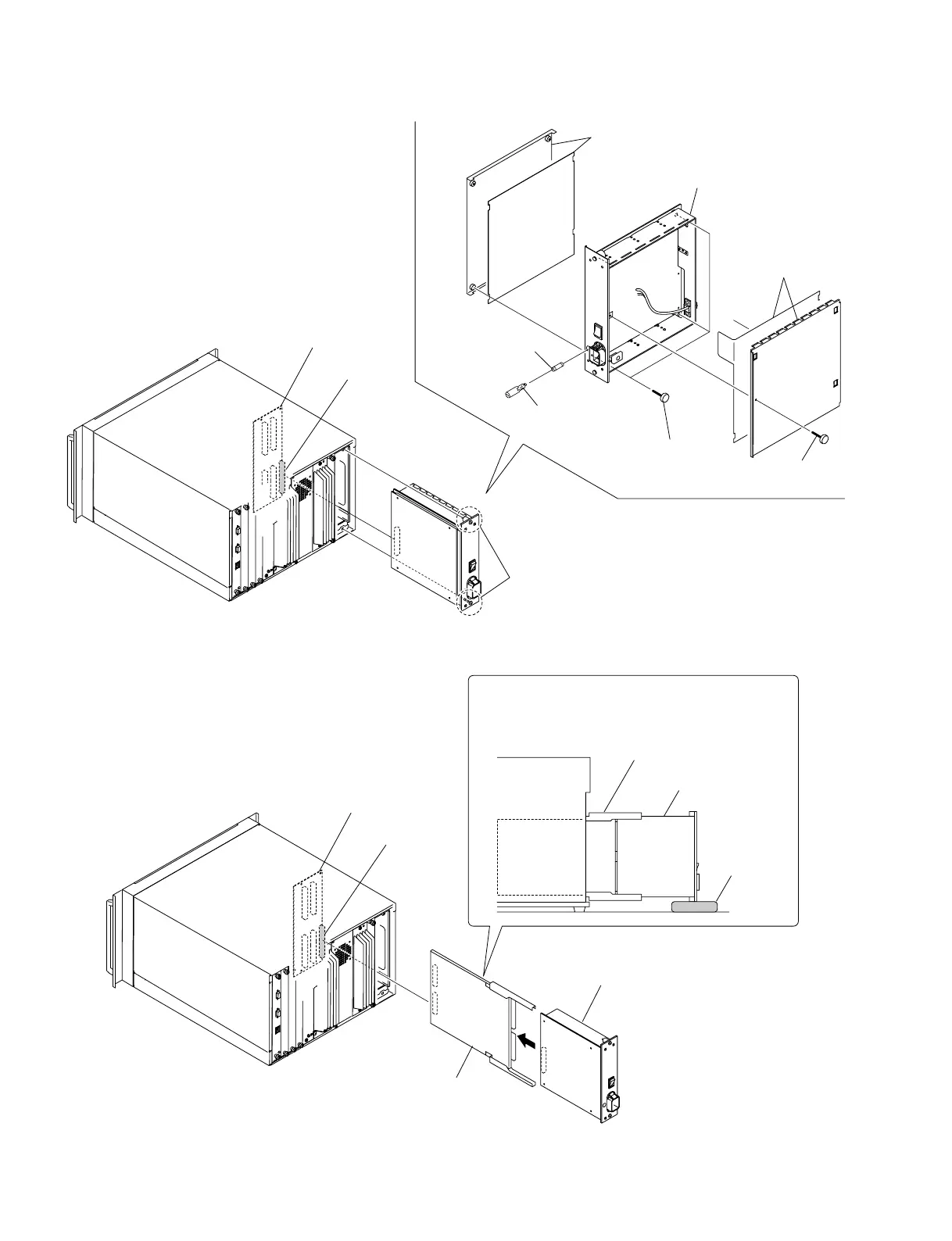

1-3-8. G Board
TA board
CN105
TA board
CN105
1 Loosen
two screws.
8 G board
6 Fuse holder
3 Power unit Cover,
Insulating plate
5 PWB shield (G) assembly,
Insulating plate
4 Three screws
(+PS 3 x 6)
2 Screw
(+PS 3 x 6)
7
Fuse
9 Insert the Z board
into the slot.
!- Install the G board to the Z board.
Spacer
0 Before checking each board, put the spacer
under the attached board to fix the board.
G board
G Board and Z Board
(Extension board) (A-1091-210-A)
Z board
(Extension board)
