6-2
BVM-A14
Cover

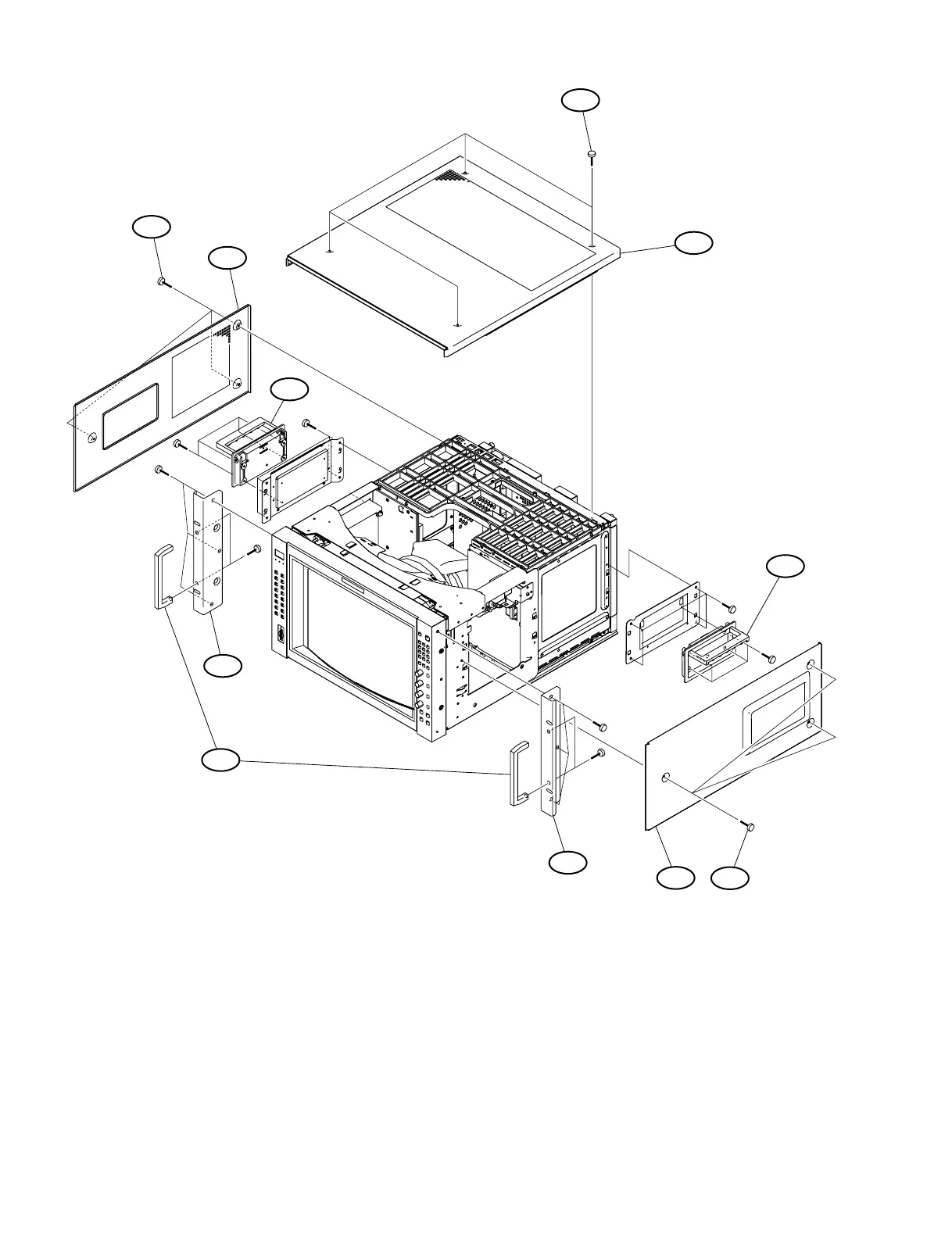

6-2. Exploded Views
3
6
5
2
6
4
1
1
6
3
+PS 5x14
+P 3x6
+P 4x8
+P 3x6
+P 4x8
+PSW 4x12
+PSW 4x12
+PS 5x14
7
No. Part No. SP Description
1
!
X-3608-706-1 s HANDLE ASSY
2
!
2-664-766-01 s CABINET (RIGHT)
3 4-050-922-01 s BASE, HANDLE
4
!
4-050-931-13 o CABINET (UPPER)
5
!
4-050-933-11 s CABINET (LEFT)
6 4-063-969-21 s SCREW (OS), CASE, CLAW
7
!
4-337-212-12 o HANDLE
7-628-000-04 s SCREW +PS 5X14
7-682-147-09 s SCREW +P 3X6
7-682-161-09 s SCREW +P 4X8
7-682-963-09 s SCREW +PSW 4X12
To Next Page
