BVM-A14
2-1
Section 2
Setup Adjustment
2-1. Setup Adjustment When CRT is
Replaced
This section describes adjustments to be performed when
the CRT has been replaced.
[Preparations]
. Required tools and measuring instruments
1. YPBPR signal generator
.1080/60i (1125) : SMPTE274M standard or BTA S-
001 standard
.1035/60i (1125) : BTA S-001 standard
.1080/50i (1125) : SMPTE 274M standard
.720/60p : SMPTE 296M standard
.720/50p : SMPTE 296M standard
.480/60p (525P) : SMPTE293M standard
.576/50p (625) : ITU1358 standard
.480/60i (525) : ITU601 standard
.575/50i (625) : ITU601 standard
.1080/48i (1125) : SMPTE RP211 standard
2. BKM-68X (analog component input adaptor)
3. Oscilloscope
Tektronix 2465 or equivalent (that of 350-MHz band)
4. Color analyzer (Minolta CA-100)

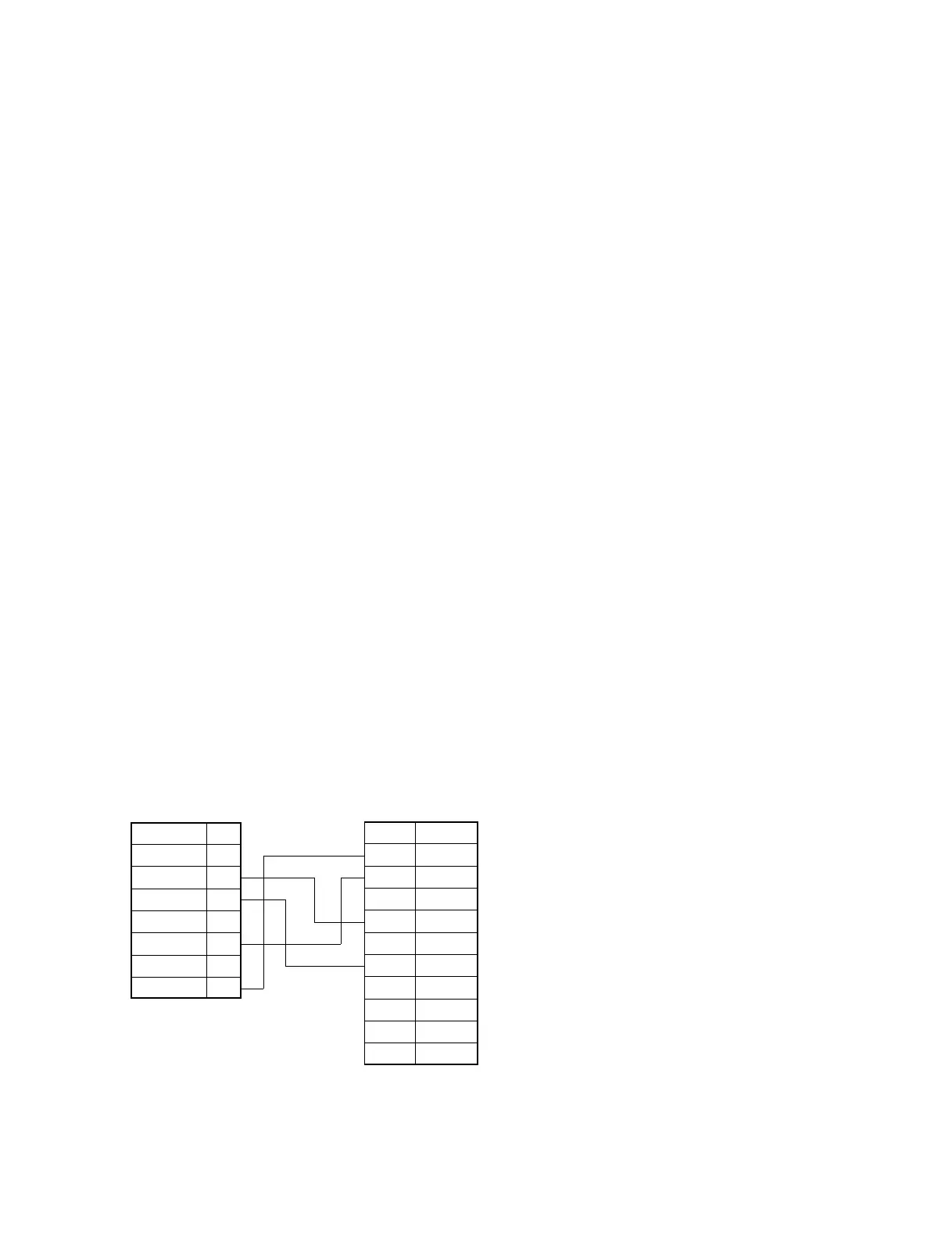

5. Cables of the following specifications for connecting
the CA-100 RS-232C terminal and OPTION terminal
of the monitor.
. Setting the INPUT CONFIGURATION Menu
Unless specified otherwise, set the INPUT CONFIGURA-
TION menu of the SETUP menu as follows.
FORMAT ................................ COMPONENT
SLOT No. ............................... (Anywhere is OK)
SCREEN ASPECT .................
SCAN SIZE ............................ NORMAL
SYNC MODE ......................... INT
COLOR TEMP ....................... As desired
PICTURE PRESET ................ PRESET 1
APERTURE ............................ OFF
H PHASE ................................ 000
1
2
3
4
5
6
7
8
9 to 19
20
21 to 25
FG
TXD
RXD
RTS
CTS
NC
GND
NC
NC
DTR
NC
Mini DIN 8pin
D Sub 25pin (Male)
1
2
3
4
5
6
7
8
NC
NC
RTS
GND
NC
TXD
+5V
RXD
BVM Option connector side
CA-100 RS-232C connector side
To Next Page
