1-18
BVM-A14

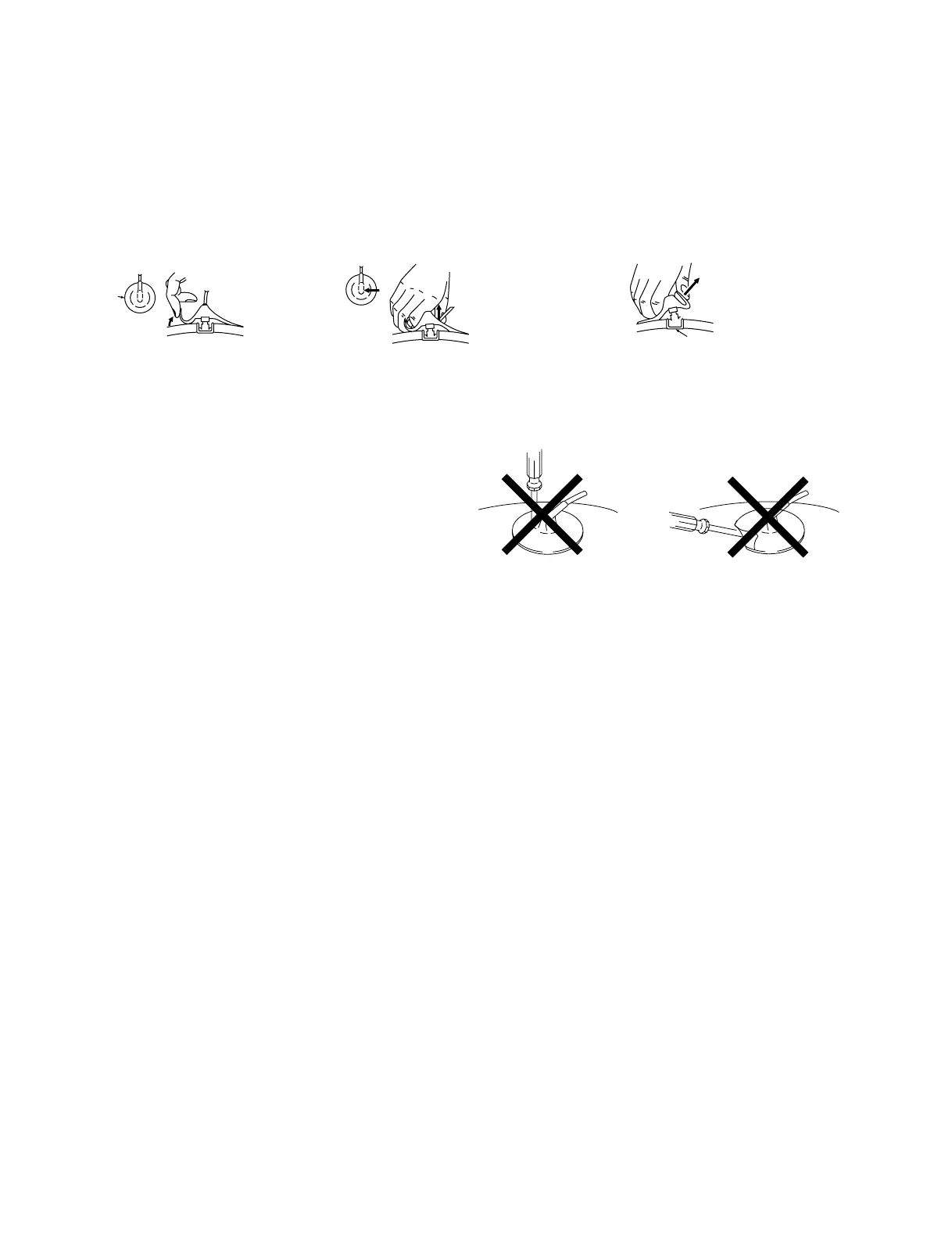

(1) Turn up one side of the rubber cap in the
direction indicated by arrow a.
(2) Using a thumb, pull up the rubber cap
firmly in the direction indicated by
arrow b.
(3) When one side of the rubber cap is
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling up it in
the direction of the arrow c.
1-3-18. Anode Cap
n
Short-circuit the anode of the CRT and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT, after
removing the anode.
..
..
. Removal Procedure
..
..
. Handling Precautions
(1) Do not scratch the surface of anode cap with a sharp object.
(2) Do not press the rubber so hard that it damages the inside of
anode caps. A shatter-hook terminal is built into the rubber.
(3) Do not turn the foot of the rubber over.
The shatter-hook terminal will stick out or damage the rubber.
a
a
b
b
To Next Page
