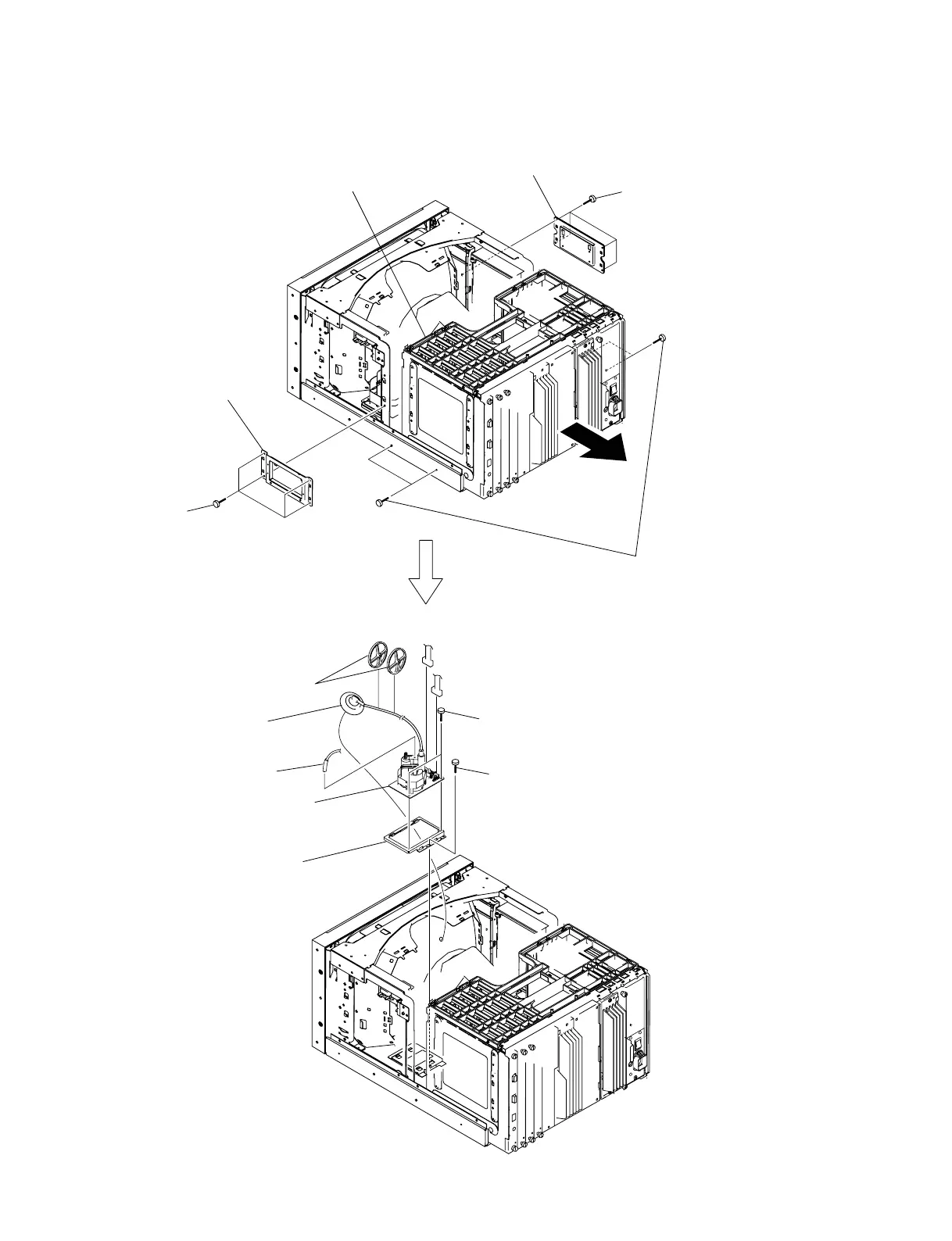

1-3-14. PC Board
6 Pull the card slot section and
other parts in the direction of the arrow.
1 Four screws
(+P 4 x 8)
3 Four screws
(+P 4 x 8)
0 Two screws
(+BVTT 3 x 8)
4 Four screws
(+P 4 x 8)
![ PC board, FBT assembly
7 Two HV cable holders
8 Anode Cap
!- FBT bracket
2 Handle section (Right)
5 Handle section (Left)
9 Screw
(+PS 4 x 8)
CN701
CN702
!=
Focus lead assembly
