1-13
BVM-A14

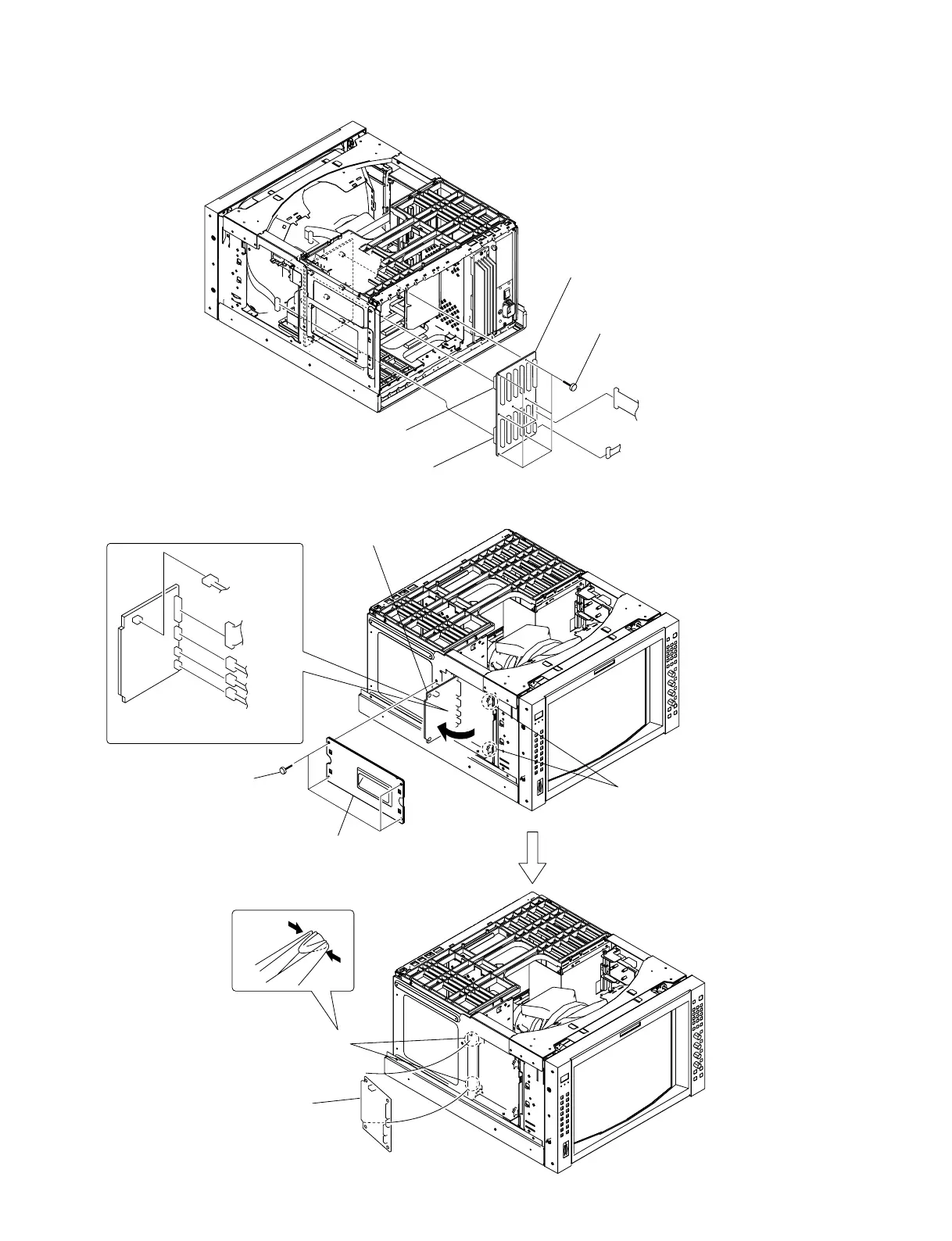

1-3-12. TB Board
1-3-13. PA Board
CN214
CN203
CN204
CN215
1
Seven screws
(+PSW 3 x 8)
2
TB board
1
Four screws
(+P 4 x 8)
2
Handle section (Left)
CN105
CN102
CN103
CN104
CN101
4 Open the PA board in the
direction of the arrow.
6
PA board
5
Two claws
3
Two claws
