6-3
BVM-A14

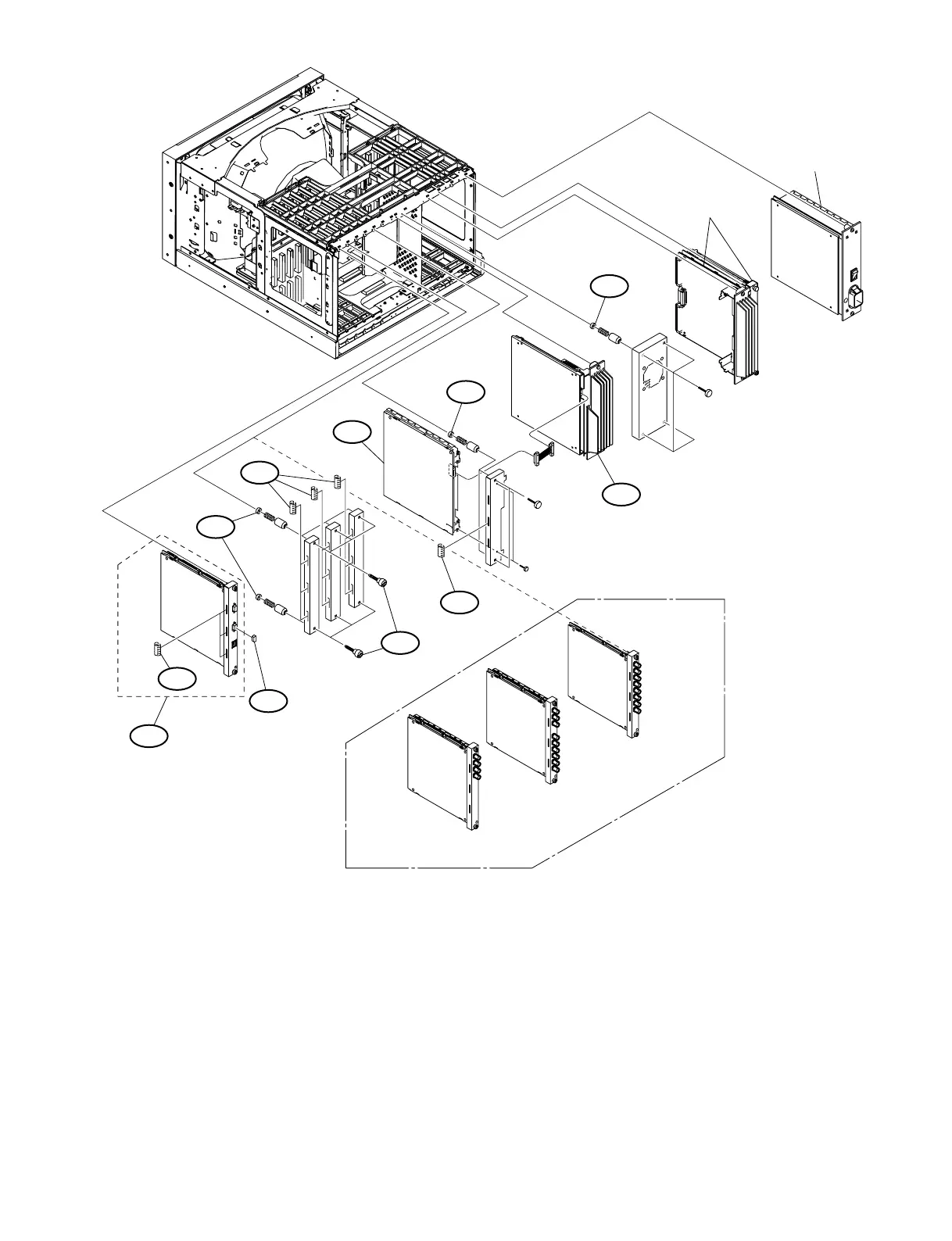

Plug in Board
101
107
103
E BOARD and
EA BOARD
(Page 6-7)
G BOARD
(Page 6-8)
107
104
104
106
+B 4x20
+B 4x20
+BVTT 3x8
105
104
102
107
BKM-62HS
BKM-61HS
BKM-68X
(OPTION)
No. Part No. SP Description
101 A-1091-090-A s MOUNTED CIRCUIT BOARD, BK
102 A-1171-143-A s MOUNTED CIRCUIT BOARD, BC
103 A-1166-053-A s MOUNTED CIRCUIT BOARD, CA
104 3-648-057-02 s NUT (ISO-4), U
105 3-673-948-21 s CAP, DUST
106 4-050-804-01 o SCREW, PANEL STOPPER
107 4-076-108-01 o FINGER, SHIELD
7-682-566-04 s SCREW +B 4X20
7-685-872-09 s SCREW +BVTT 3X8 (S)
