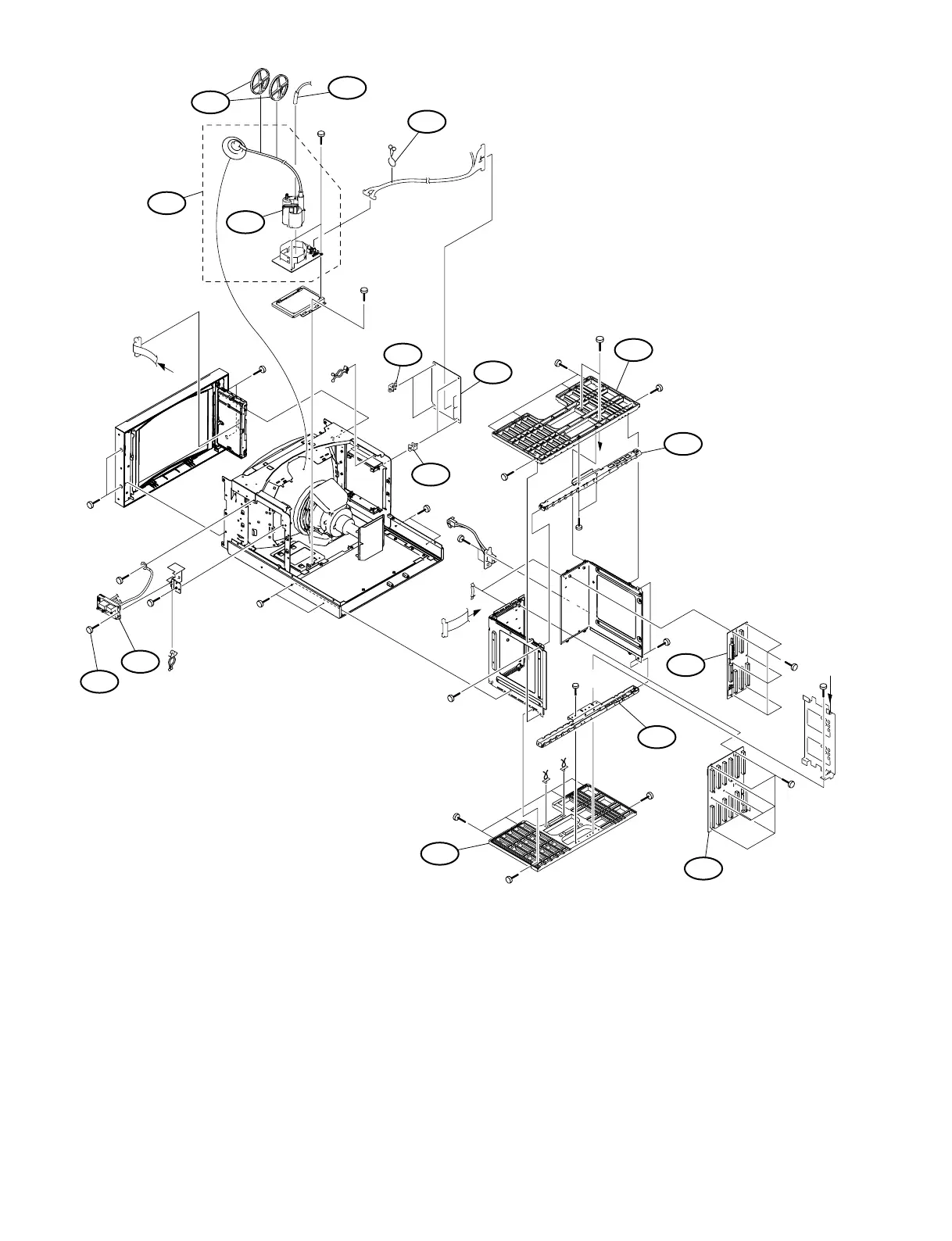

6-4
BVM-A14
No. Part No. SP Description
201 A-1091-232-A s MOUNTED CIRCUIT BOARD, TA
202 A-1168-480-A s MOUNTED CIRCUIT BOARD, PC
203 A-1109-177-A s MOUNTED CIRCUIT BOARD, PA
204 A-1168-482-A s MOUNTED CIRCUIT BOARD, TB
205
!
1-223-417-31 s RESISTOR ASSY (HIGH-VOLTAGE)
206
!
1-453-476-11 s R/P FBT ASSY (NX-4021//M3F4)
207
!
1-900-214-62 s LEAD ASSY, FOCUS
208 3-703-141-11 o HOLDER, PWB
209 4-047-349-01 o HOLDER, HV CABLE
210 4-050-847-03 o PLATE (UPPER), NUT
211 4-050-848-03 o PLATE (LOWER), NUT
212 4-072-207-03 o BOARD (UPPER), CARD SLOT
213 4-072-208-03 o BOARD (LOWER), CARD SLOT
214 4-353-620-11 o HINGE, PC BOARD
215 4-847-334-02 o PURSE LOCK (DIA.15)
216 4-382-854-11 s SCREW (M3X10), P, SW (+)
7-682-161-09 s SCREW +P 4X8
7-682-561-09 s SCREW +B 4X8
7-682-661-01 s SCREW +PS 4X8
7-682-948-01 s SCREW +PSW 3X8
7-685-872-01 s SCREW +BVTT 3X8 (S)
7-685-648-79 s SCREW +BVTP 3X12 TYPE2 IT-3
Chassis
D
D
C
C
212
210
211
201
204
213
202
206
205
216
203
214
208
+PSW 3x8
+PSW 3x8
+BVTP 3x12
+BVTP
3x12
+BVTP 3x12
+PSW 3x8
+BVTT 3x8
+BVTT 3x8
+BVTT 3x8
+BVTT 3x8
+BVTT 3x8
+BVTT 3x8
+BVTT
3x8
+BVTT 3x8
+BVTT 3x8
+BVTT 3x8
+B 4x8
+B 4x8
+P 4x8
+PS 4x8
+P 4x8
+P 4x8
+P 4x8
209
215
207
